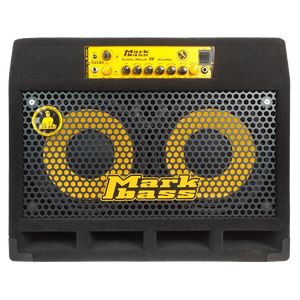

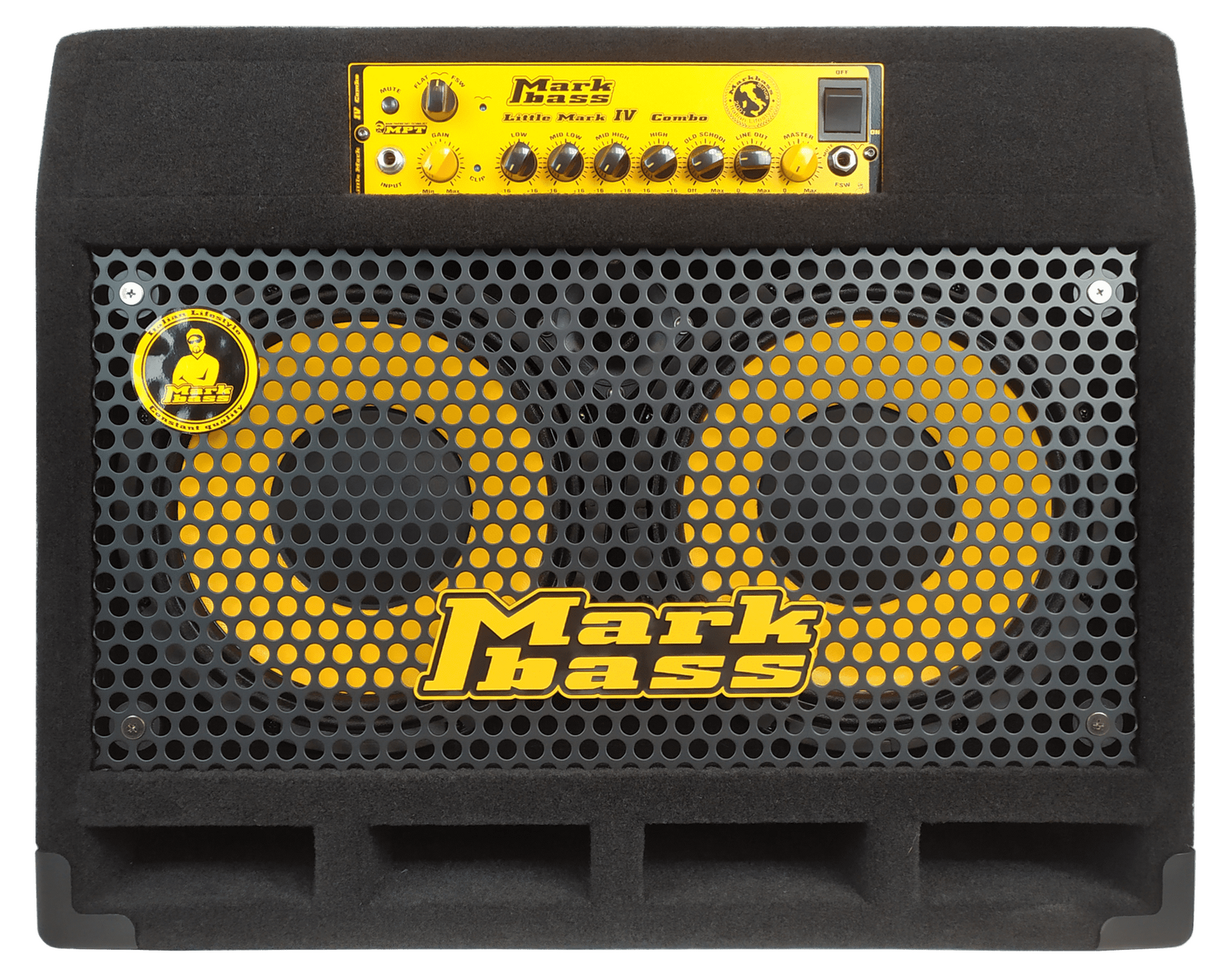

Markbass CMD 102P 300/500W 2x10 Tilt-Back Bass Combo Amp
SKU: CMD102PIV
The Markbass CMD 102P is a tilt-back bass combo amplifier that has a built-in Little Mark II solid state preamp to give you more power. To help shape your sound, the CMD 102P bass amp gives you a 4-band EQ, as well as VLE (Vintage Loudspeaker Emulator) and VPF (Variable Pre-shape Filter) filters for control.
The Markbass CMD 102P amp's I/O includes an input that can handle both passive and active basses, and extra XLR balanced input for double bass pickups, Neutrik Speakon Combo out jacks for use with 1/4" or Speakon speaker cables, a tuner out jack for sending unbalanced signals to a tuner, amp, or other recording equipment, and Send and Return Effect jacks to ensure your main signal continues even if something dies in your effects chain. This versatile bass combo has an angled cabinet so that you can use it as a floor model or in the more traditional vertical position. Either way, you're going to get a warm, natural sound from the 2 Markbass custom 10" speakers and the piezo tweeter. And if you add an external cab via the outputs, the CMD 102P combo amp will give you enough sound to fill a large venue with headroom to spare.
Speaker: 2 x 10"
Tweeter: piezo
Bass port: front
Impedance: 8 ohms
Sensitivity: 101 dB SPL
Speaker power handling: 400W RMS (AES Standard)
Frequency response: 40Hz to 18kHz
Crossover frequency: 3kHz
Little Mark II
Power
Input impedance: 500Kohm, max. voltage: 15Vpp
Balanced Output (XLR): 22Kohm, max. voltage 25Vpp
Effect Return impedance: 22Kohm, max. voltage: 25Vpp
Output Power: 300W RMS at 8 ohm, 500W RMS at 4 ohm
Voltage is factory preset for Australia
Controls
GAIN 80dB to +23dB range
MASTER VOLUME
GROUND LIFT: switch on rear panel
Equalization
LOW
Center frequency: 40Hz; level ±16dB
LOW MID
Center frequency 360Hz, level ±16dB
HIGH MID
Center frequency 800Hz, level ±16dB
HIGH
10kHz shelf; level ±16dB
VPF (Variable Pre-shape Filter)
center frequency 380Hz (cut)
VLE (Vintage Loudspeaker Emulator)
frequency range 250Hz20kHz (cut)
Outputs
EFFECT SEND
Unbalanced, max. voltage 20Vpp (pre-EQ)
TUNER OUT
Unbalanced, max. voltage 25Vpp
LINE OUT
Balanced XLR, max. voltage 10 Vpp
SPEAKER OUT
Speakon, 1/4"
SKU | CMD102PIV |
Barcode # | 8033829133910 |
Brand | Markbass |
