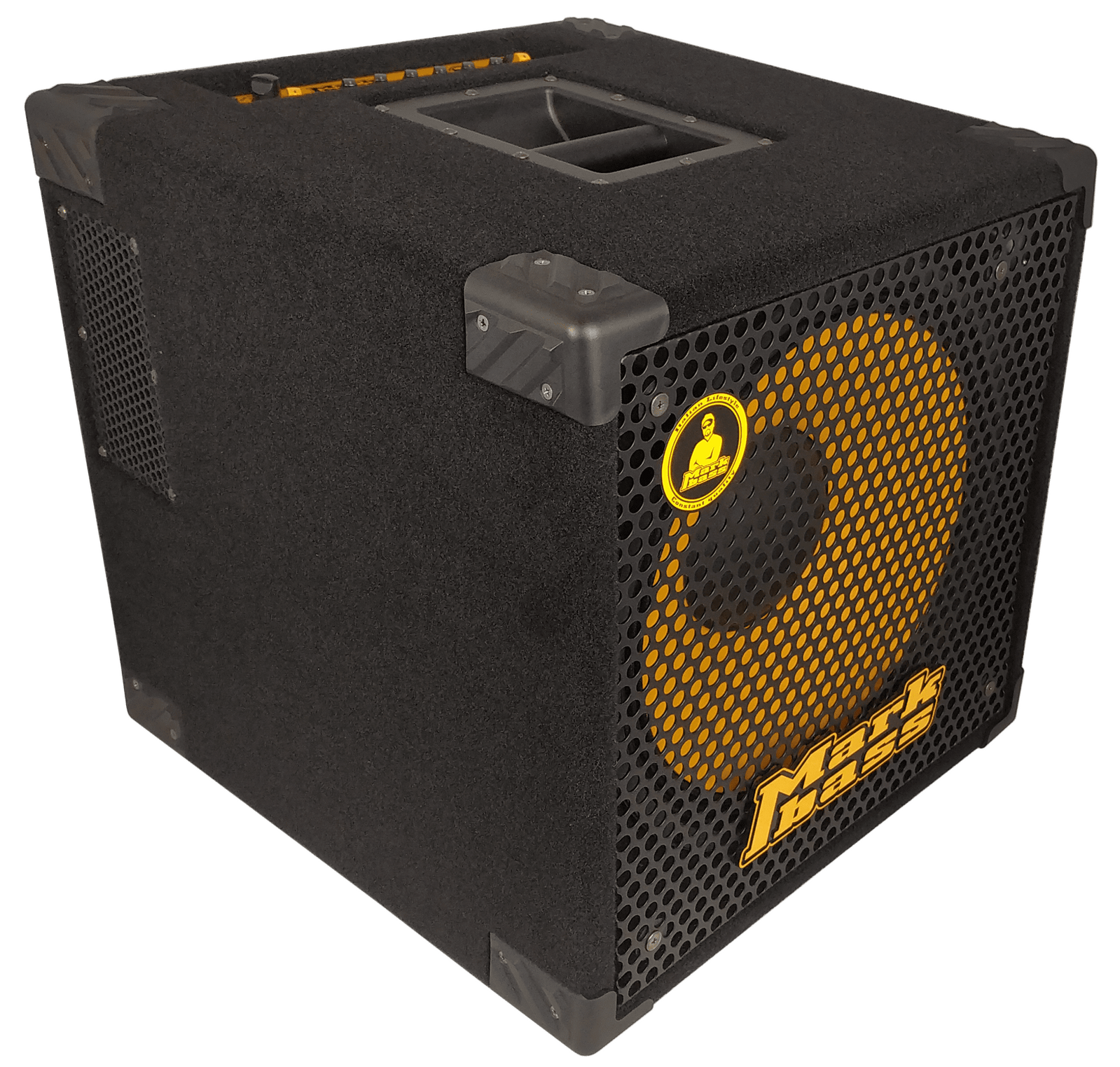

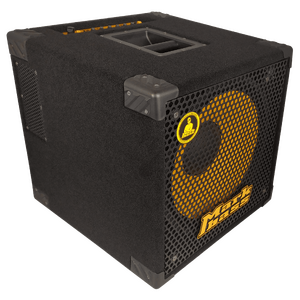

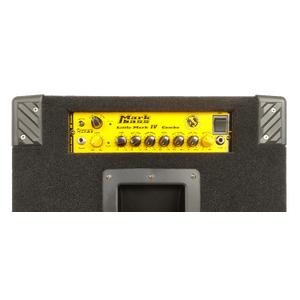

The Markbass CMD 151P is a bass combo amplifier equipped with Markbass' flagship solid state preamp, the Little Mark II. Despite being a Mini model, the CMD 151P amp gives you maximum power and sound. The amp provides plenty of power to blow through the high-quality 15" Markbass custom woofer and piezo tweeter. The CMD 151P also has 2 speaker outs which allow you to hook up to another 8 ohm extension cab, giving you a 500W rig! The Little Mark II has a 4-band EQ, as well as two exclusive Markbass' filters for rounding out your tone to perfection. A handle on top makes Markbass CMD 151P amp easy to transport too.

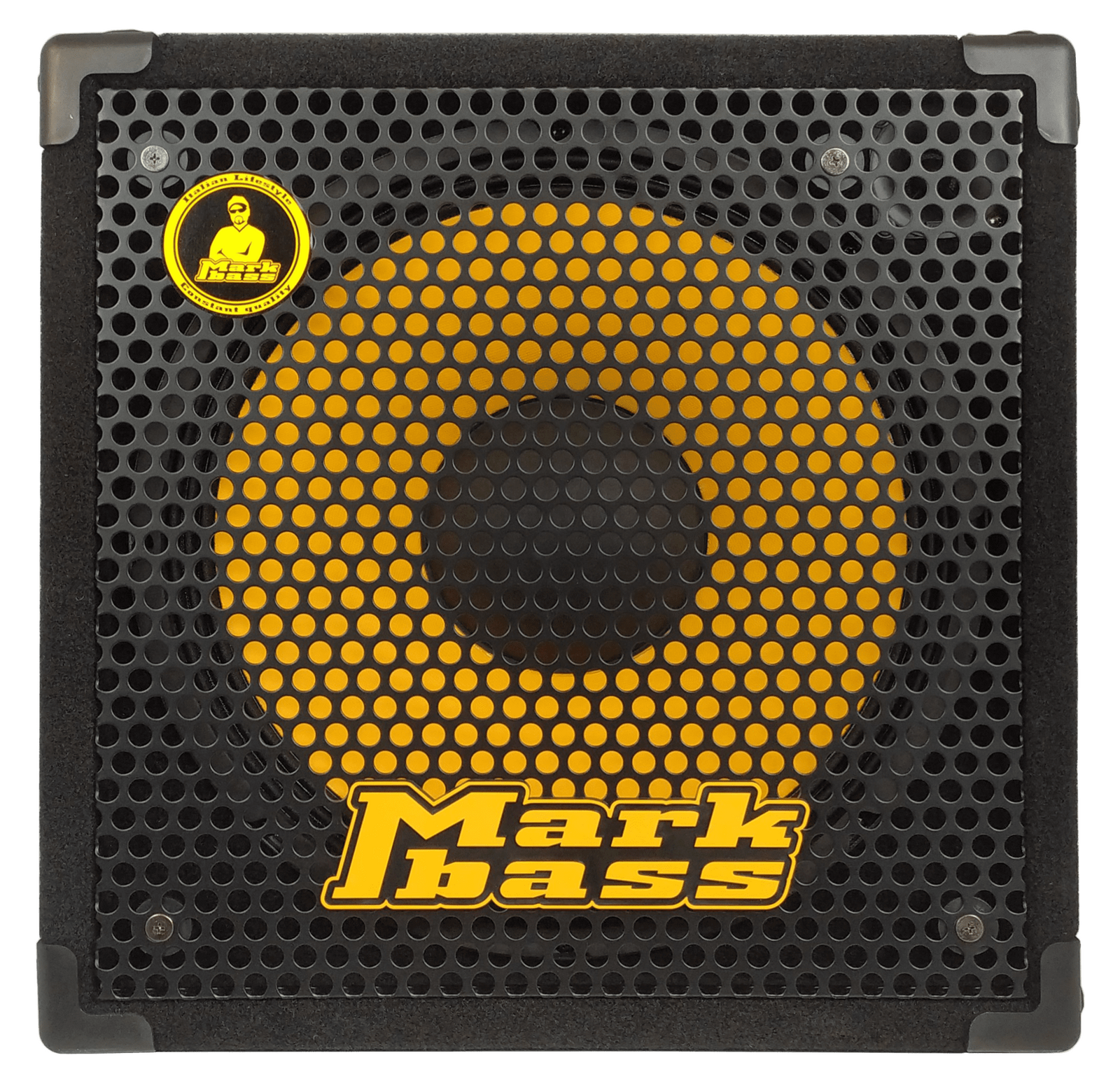

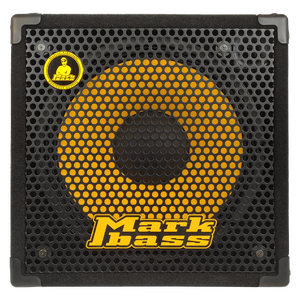

Speaker: 1 x 15"
Tweeter: piezo

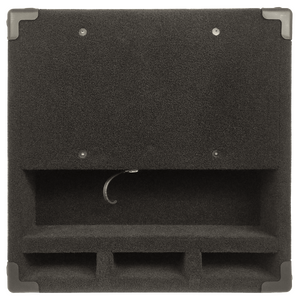

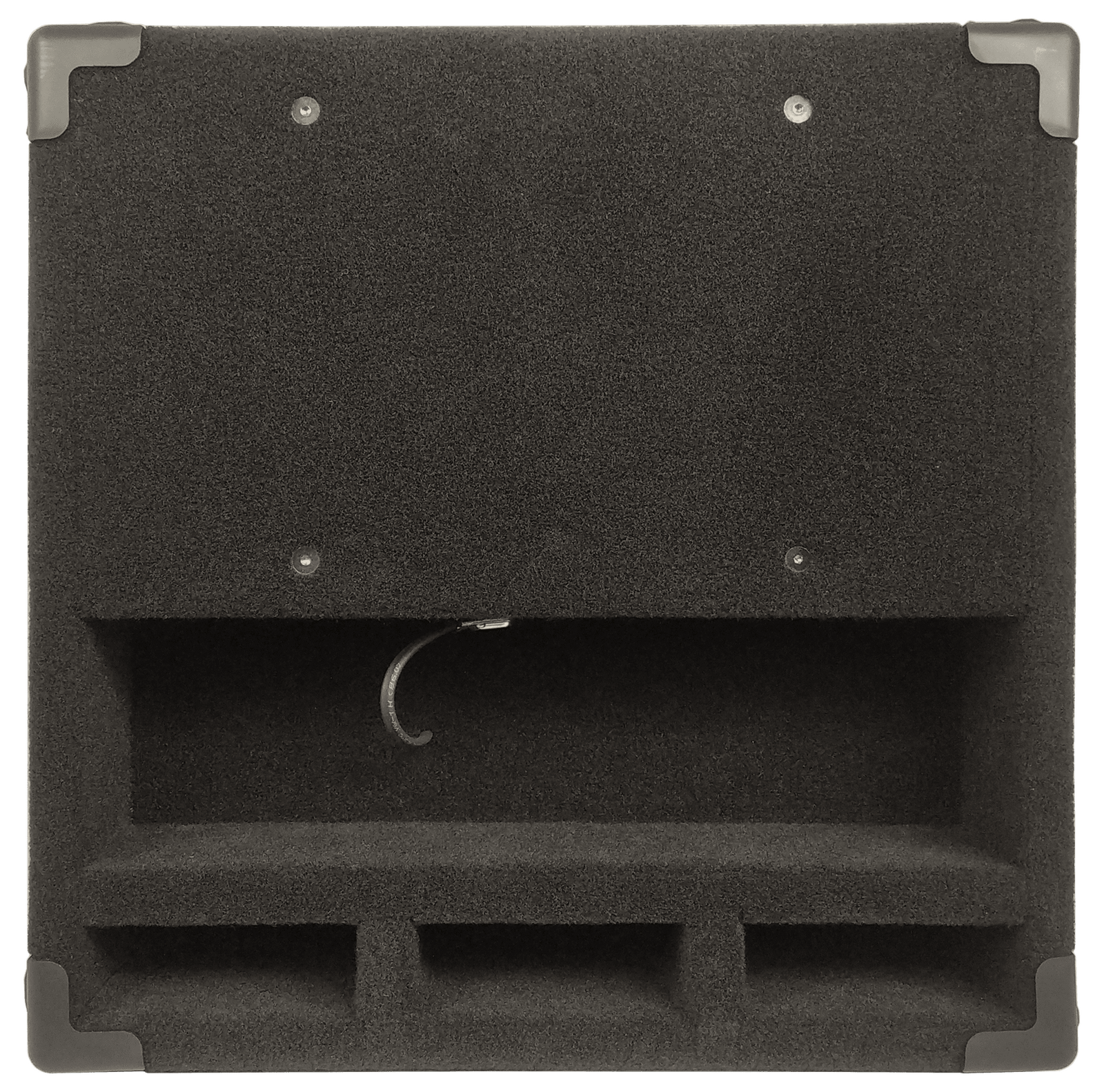

Bass reflex: rear
Impedance: 8 ohms
Sensitivity: 100 dB SPL
Speaker power handling: 400W RMS (AES Standard)
Frequency response: 40Hz to 18kHz
Crossover Frequency: 3.5kHz
Dimensions: 18.27"W x 18.27"H x 18.9"D
Weight: 40.79 lbs.
Little Mark II head
Power
Input impedance: 500Kohm, max. voltage: 15 Vpp
Balanced Output (XLR): 22Kohm, max. voltage 25 Vpp
Effect Return impedance: 22Kohm, max. voltage: 25 Vpp
Output Power: 300W RMS at 8 ohm, 500W RMS at 4 ohm
Voltage is factory preset for Australia
Controls
GAIN 80 dB to +23 dB range
MASTER VOLUME
GROUND LIFT: switch on rear panel
Equalization
LOW
Center frequency: 40Hz; level ±16dB
LOW MID
Center frequency 360Hz, level ±16dB
HIGH MID
Center frequency 800Hz, level ±16dB
HIGH
10kHz shelf; level ±16dB
VPF (Variable Pre-shape Filter)
center frequency 380Hz (cut)
VLE (Vintage Loudspeaker Emulator)
frequency range 250Hz20kHz (cut)
Outputs
EFFECT SEND
Unbalanced, max. voltage 20 Vpp (pre-EQ)
TUNER OUT
Unbalanced, max. voltage 25 Vpp
LINE OUT
Balanced XLR, max. voltage 10 Vpp
SPEAKER OUT
Speakon, 1/4"
