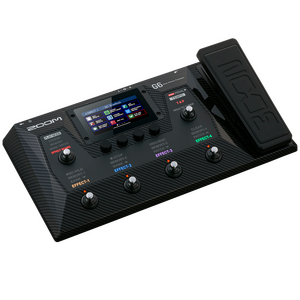

Zoom G6 Multi-Effects Guitar Processor

FEATURES OF THE G6

• Integrated pedal board with 6 stomp switches and expression/volume pedal
• Ultimate Zoom FX processor technology with custom amp modeling
• 4.3˝ color LCD touch-screen interface
• Chain up to 9 effects or 7 effects + amp emulation
• IR load function for speaker cabinet simulation
• New Play Mode Footswitch provides instant access to different play modes
• 68 rhythm patterns
• Looper with loop time up to 2 hours with SD card installed
• Built-in USB audio interface (2-in / 2-out)
• Compatible with Zoom Guitar Lab
• Wireless control via optional Bluetooth adapter (BTA-1) with Handy Guitar Lab app (iOS)

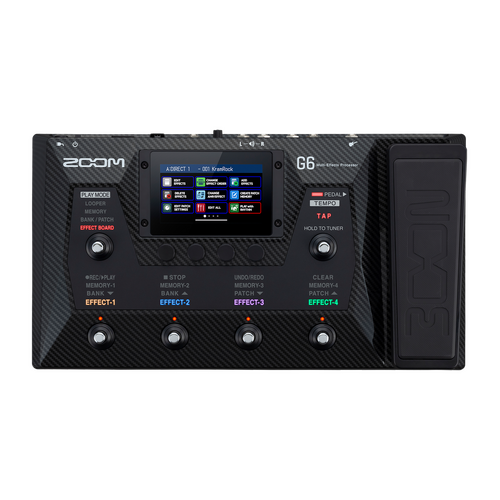

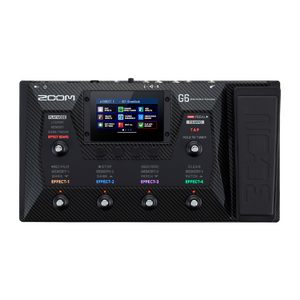

• 1. PLAY MODE SWITCH

  2. TOUCHSCREEN INTERFACE

  3. CONTROL KNOBS

  4. TAP TEMPO/TUNER SWITCH

  5. FOOTSWITCHES

  6. EXPRESSION PEDAL

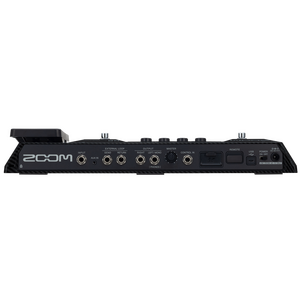

  7. INPUTS

  8. EFFECTS LOOPS INS/OUTS

  9. OUTPUTS

  10. MASTER VOLUMN CONTROL

  11. EXTERNAL EXPRESSION PEDAL INPUT

  12. SD/SDXC CARD SLOT

  13. BLUETOOTH ADAPTER SLOT

  14. MICRO USB PORT



  SPECS

  MAXIMUM NUMBER OF SIMULTANEOUS EFFECTS	9 effects or 7 effects + Amp
  USER PATCHES	240
  SAMPLING FREQUENCY	44.1 kHz
  A/D CONVERSION	24-bit 128x oversampling
  D/A CONVERSION	24-bit 128x oversampling
  SIGNAL PROCESSING	32-bit
  FREQUENCY CHARACTERISTICS	20 Hz - 20kHz (+0.5 db/-0.5 dB) (10Ωk load)
  DISPLAY	4.3" TFT color LCD (480x272)

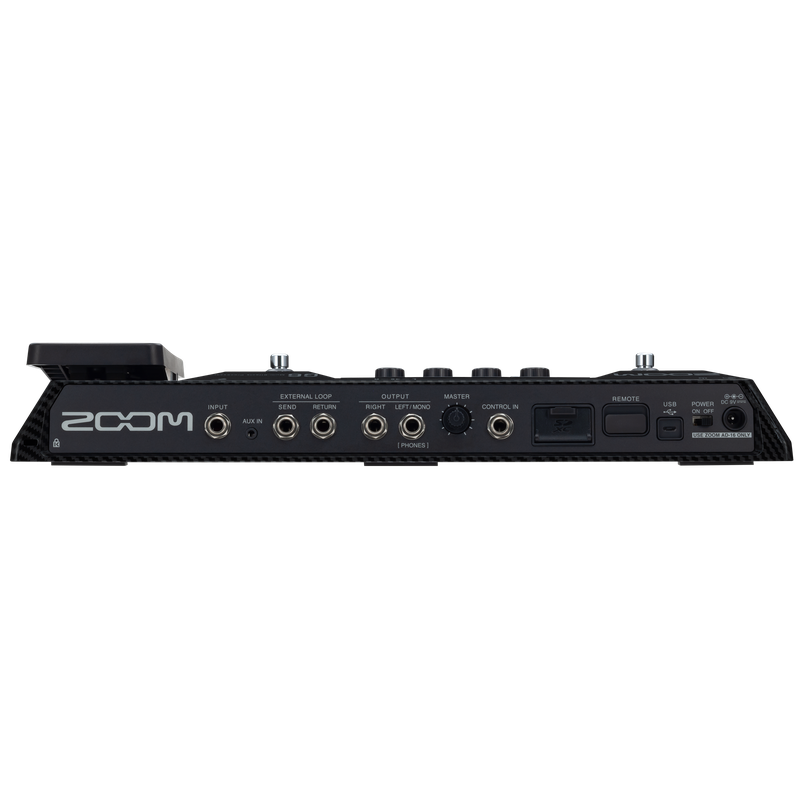

  INPUTS

  INPUT	Standard mono phone jack
  	Rated input level: -20 dBu
  	Input impedance (line): 500 Ωk
  RETURN	Standard mono phone jack
  	Rated input level: -20 dBu
  	Input impedance (line): 1 ΩM
  AUX IN	Stereo mini jack
  	Rated input level: -10 dBu
  	Input impedance (line): 10 Ωk

  OUTPUTS

  OUTPUT R	Standard mono phone jack
  	Maximum output level: +11.4 dBu (when output impedance 10 Ωk or higher)
  OUTPUT L/MONO (PHONES)	Standard stereo phone jack
  	Maximum output level: +11.4 dBu (when output impedance 10 Ωk or higher)
  	Headphones 24 mW + 24 mW (at 32 load)
  SEND	Standard stereo phone jack
  	Maximum output level: +11.4 dBu (when output impedance 10 Ωk or higher)

  INPUT S/N

  123 dB

  NOISE FLOOR (RESIDUAL NOISE)

  L/R	-99.3 dBu
  SEND	-99.0 dBu

  CONTROL INPUT	FP02M input
  POWER	AC adapter ( 9v DC 500mA, center negative) (Zoom AD-16)
  USB	Port: USB 2.0 Micro-B/Supported cable type: Micro-B
  	Guitar Lab: USB 1.1 Full Speed
  	Audio Interface: USB 2.0 Full Speed, 44.1 kHz/32-bit, 2 in, 2 out
  	- Use a USB cable that supports data transfer. USB bus power is not supported

  SD CARD

  STANDARDS	Cards that support SD/SDXC/SDHC specifications (class 10 or higher)
  LOOPER	44.1 kHz/ 16-bit stereo WAV
  IR	44.1 - 192kHz, 16/24/32-bit WAV

  REMOTE	ZOOM BTA-1 or other dedicated wireless adapter
  EXTERNAL DIMENSIONS	228 mm (D) x 418 mm (W) x 65 mm (H)
  WEIGHT	1.94 kg
