More info- SPECIFICATIONS (LOOPER)
- Sampling Frequency
- 44.1 kHz
- AD/DA Conversion
- 32 bits
- Processing
- 32-bit floating point
- Recording/Playback
- Maximum Recording Time: Approx. 6 hours (stereo)
Maximum Phrase Memory: 99
Number of Tracks: 2
Data Format: WAV (44.1 kHz, 32-bit float, stereo) - SPECIFICATIONS (RHYTHM)
- Rhythm Type
- 280 types or greater
- Rhythm Control
- Intro, Pattern 1, Pattern 1 Fill, Pattern 2, Pattern 2 Fill, Ending
- Rhythm Kit
- 16 types
- Maximum Polyphony
- 24 voices
- Effect
- Reverb (only for rhythm part)
- SPECIFICATIONS (COMMON)
- Memory
- 99
- Nominal Input Level
- INPUT A/MONO, B: -10 dBu
- Maximum Input Level
- INPUT A/MONO, B: +8 dBu
- Input Impedance
- INPUT A/MONO, B: 1 M ohm
- Nominal Output Level
- OUTPUT A/MONO, B: -10 dBu
- Maximum Output Level
- OUTPUT A/MONO, B: +8 dBu
- Output Impedance
- OUTPUT A/MONO, B: 1 k ohms
- Recommended Load Impedance
- OUTPUT A/MONO, B: 10 k ohms or greater
- Bypass
- Buffered bypass

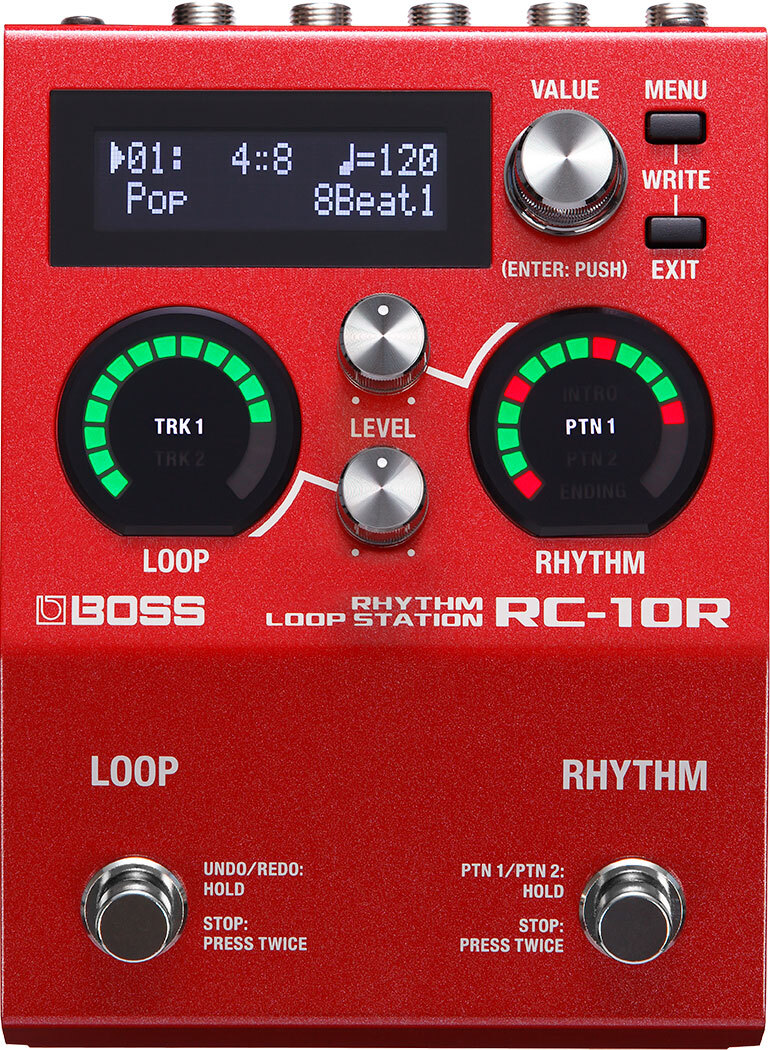

- Controls
- RHYTHM switch, LOOP switch
VALUE knob, RHYTHM LEVEL knob, LOOP LEVEL knob
MENU button, EXIT button - Display
- 16 characters x 2 lines LCD (with backlit)
- Indicator
- RHYTHM indicator, LOOP indicator

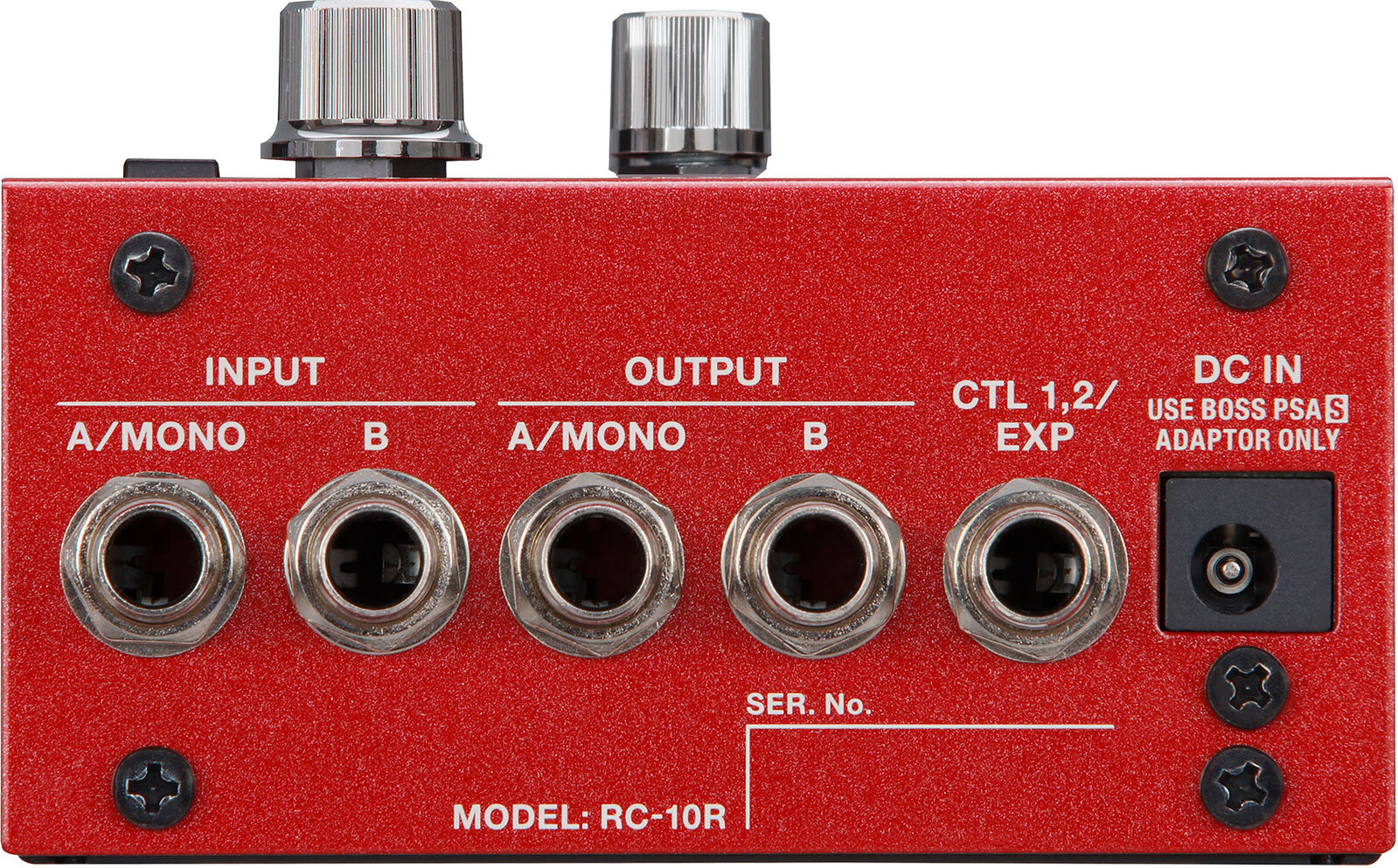

- Connectors

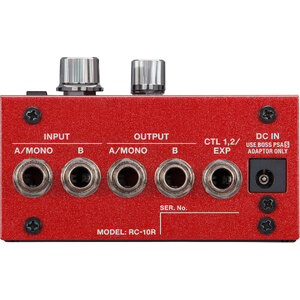

- INPUT (A/MONO, B) jacks, OUTPUT (A/MONO, B) jacks: 1/4-inch phone type
CTL 1, 2/EXP jack: 1/4-inch TRS phone type

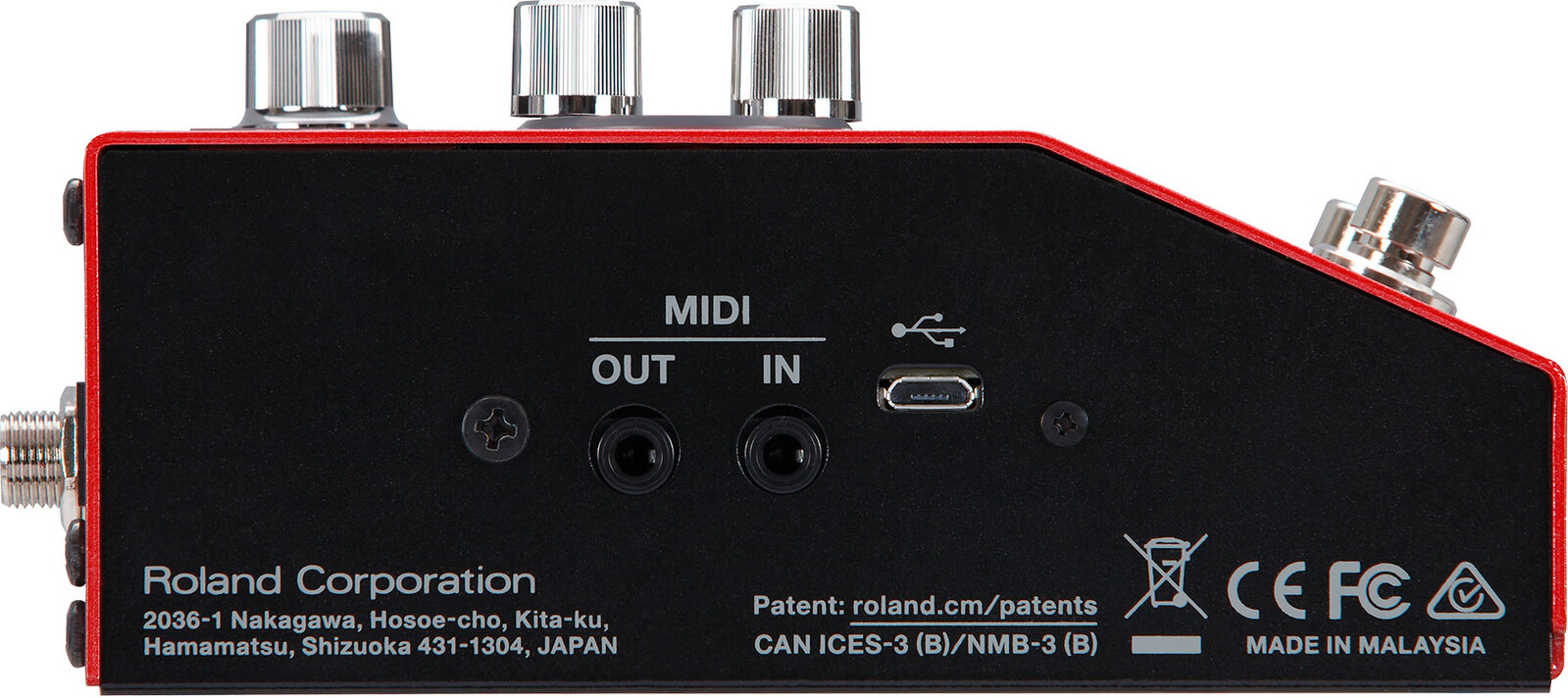

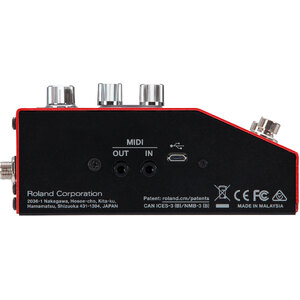

MIDI (IN, OUT) jacks: stereo miniature type
DC IN jack
USB COMPUTER port: USB micro B type - Power Supply
- AC adaptor
- Current Draw
- 250 mA
- Accessories
- Owner's Manual
Leaflet "USING THE UNIT SAFELY"
AC adaptor
Rubber foot x 4 - Options (sold separately)
- Footswitch: FS-5U
Dual footswitch: FS-6, FS-7
Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5
TRS/MIDI connecting cable: BMIDI-5-35 - SIZE AND WEIGHT
- Width
- 101 mm
4 inches - Depth
- 138 mm
5-7/16 inches - Height (excluding rubber foot)
- 63 mm
2-1/2 inches - Height (including rubber foot)
- 65 mm
2-9/16 inches - Weight (excluding AC adaptor)
- 620 g
1 lbs 6 oz - * 0 dBu = 0.775 Vrms
- *The specifications are subject to change without notice.

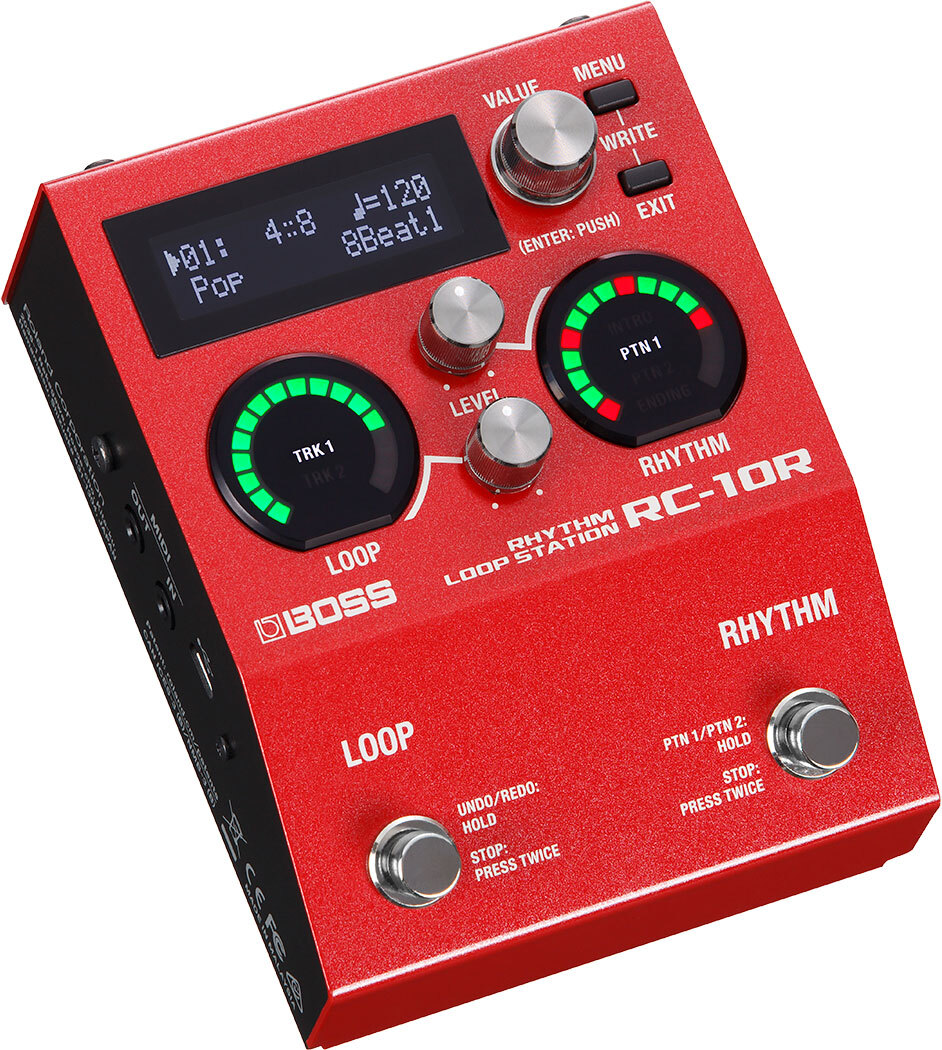

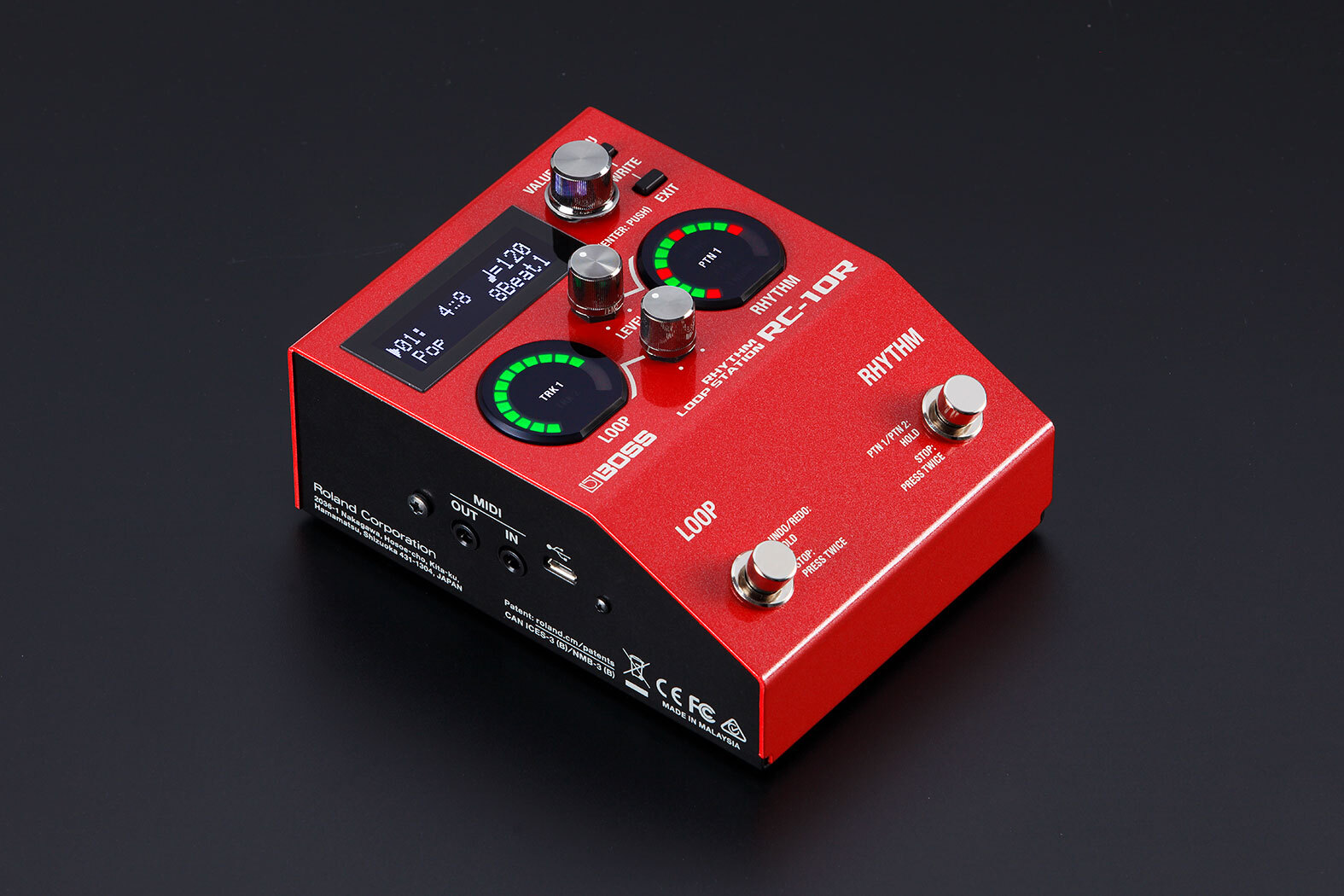

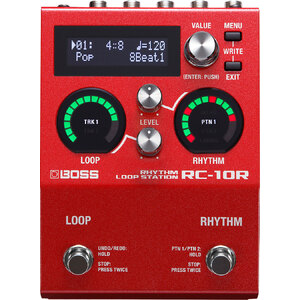

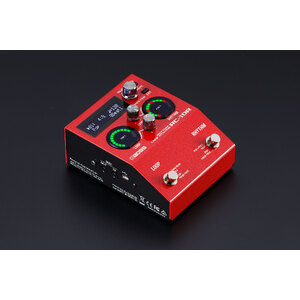

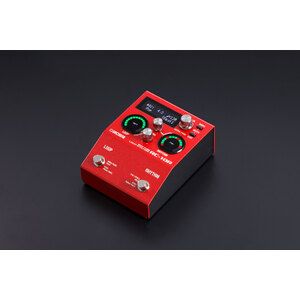

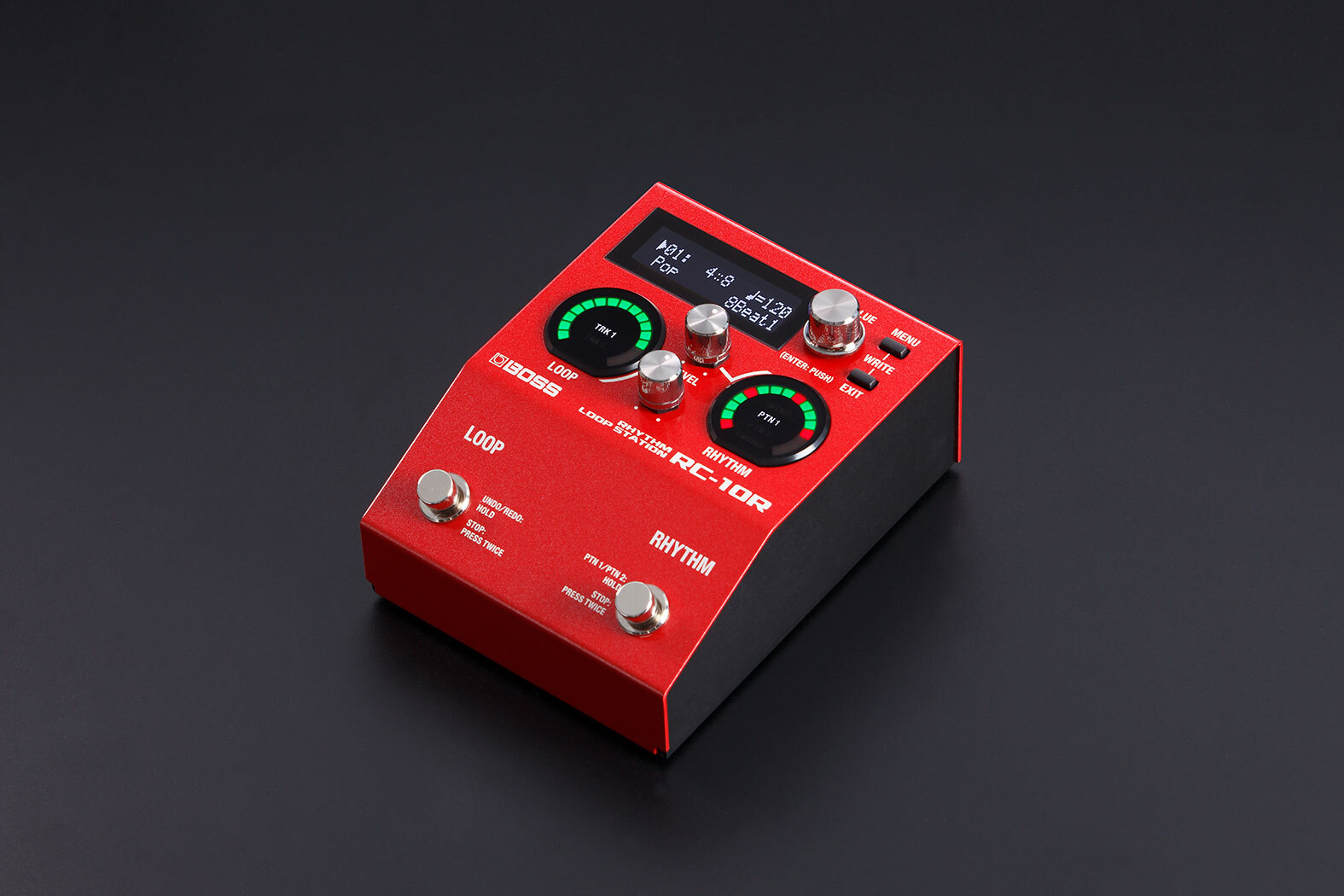

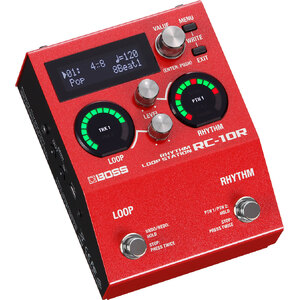

Boss RC-10R Rhythm Loop Station
Perform at the Speed of Inspiration
SKU: RC10R
Combining song-based looping and organic rhythms in a compact package, the RC-10R brings fresh inspiration to live performances, songwriting sessions, and daily practice. This next-generation Loop Station is a real-time creation machine, enabling you to develop spontaneous music that moves and grooves with two unique song sections, intros/endings, and rhythm fills. Onboard controls and visual loop indicators provide easy, self-contained operation, while expanded control is possible with external switches and MIDI. A vast rhythm library is on hand to cover nearly any music genre, and you can even import your own rhythms to personalize the RC-10R for specific songs and styles.
- Next-generation performance tool combining song-based looping and dynamic rhythms in a small footprint
- Cover nearly any genre with over 280 preset rhythm styles that include two unique sections, intro/ending fills, and two transition fills
- Sixteen versatile drum kits with high-quality sounds from the BOSS and Roland rhythm libraries
- Stereo looper engine with six hours of recording time and class-leading 32-bit AD/DA and 32-bit floating-point processing
- Serial two-track operation for building loop performances with two independent song parts
- Two circular indicators display loop and rhythm playback status
- Simple operation with informative LCD and intuitive interface
- Onboard storage for 99 phrase memories and 50 user rhythms
- Selectable output filter to optimize guitar and rhythm sounds for a guitar amp or full-range sound system
- Support for expanded control via external footswitches, an expression pedal, or MIDI
- Full MIDI I/O provided with space-saving mini TRS jacks (BMIDI-5-35 adaptor cable available separately)
- Mac/Windows software for importing WAV loops and user rhythms in SMF format
- Additional content available for download at BOSS Tone Central
| SKU | RC10R |
| Barcode # | 4.95705E+12 |
| Brand | Boss |
