Roland EC-10M Cajon Microphone Processor

The EC-10M ELCajon Mic Processor is a totally unique and innovative creative tool designed for the acoustic cajon. Compact and battery powered` the EC-10M picks up the cajon’s acoustic sound with the included clip-on condenser mic` which is also used to trigger a variety of onboard tones for layering with the acoustic voice. You can then send both sounds to an amp or PA` giving you complete control over your stage sound. It’s also possible to create percussion phrases with a built-in looper` and play additional sounds via integrated A/B foot pads or optional kick trigger pedals. Everywhere you play` the EC-10M transforms the acoustic cajon experience with a world of new expressive power.

*Maximum use time will vary depending on the battery specifications` capacity` and conditions of use.

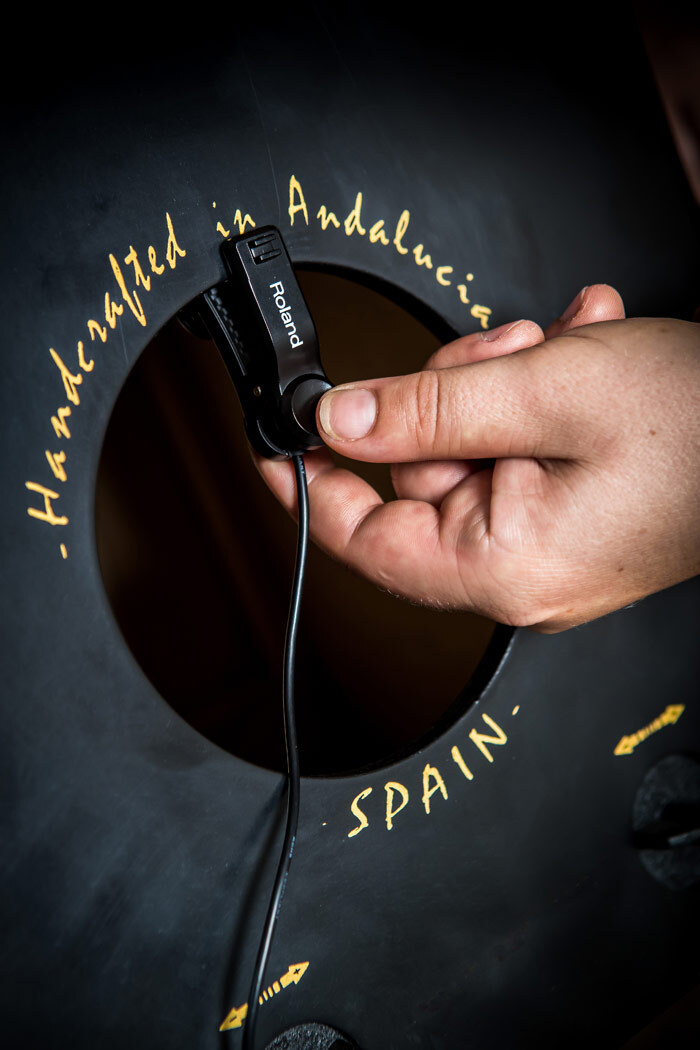

• Easy setup—simply attach the included clip-on condenser mic to the sound hole of the acoustic cajon and start playing
• Amplify the acoustic cajon—the EC-10M can be used as a mic preamp for the supplied microphone
• A variety of sounds—16 onboard kits with tones including tambourine` shaker` djembe` electronic drums` and more can be layered with the acoustic cajon
• Multiple tones—play two different electronic sounds by slapping the edge or head of the acoustic cajon
• Add pedals—up to two kick trigger pedals (Roland KT-10` KT-9` or KD-7) can be connected to play additional sounds; integrated A/B foot pads can also trigger sounds
• Create loops and play along—a simple looper function allows recording of rhythm phrases using the onboard sounds
• Versatile outputs—send the microphone and layered sounds to a PA mixer via two independent outputs` or mix all sounds to one mono output
• Two-way power—can be used with four AAA-size batteries (for up to five hours of use*) or included power supply

ENHANCE YOUR ACOUSTIC CAJON PERFORMANCES

With the EC-10M` it’s easy to take your acoustic cajon performances to new heights. Just attach the dedicated clip-on mic to the instrument’s sound hole` and then layer EC-10M tones with the acoustic voice to create unique hybrid sounds. The 16 kit variations include percussion sounds such as tambourine` surdo` splash cymbal` and many others` plus acoustic snare drum and the famous TR-808 snare. Built-in cajon tones with ambience are also included for reinforcing your acoustic cajon’s natural voice with powerful studio sound.

ADD VARIETY AND PLAY WITH AUTHENTIC CAJON TECHNIQUES

The EC-10M intelligently senses when the mic is picking up sounds from the head and edge surfaces on the cajon` giving you the ability to trigger distinctly different electronic sounds with each of these areas. This lets you integrate EC-10M sounds using authentic cajon techniques` so you don’t have to adjust your playing in any way.

TRIGGER EXTRA SOUNDS WITH FOOT PADS OR OPTIONAL PEDALS

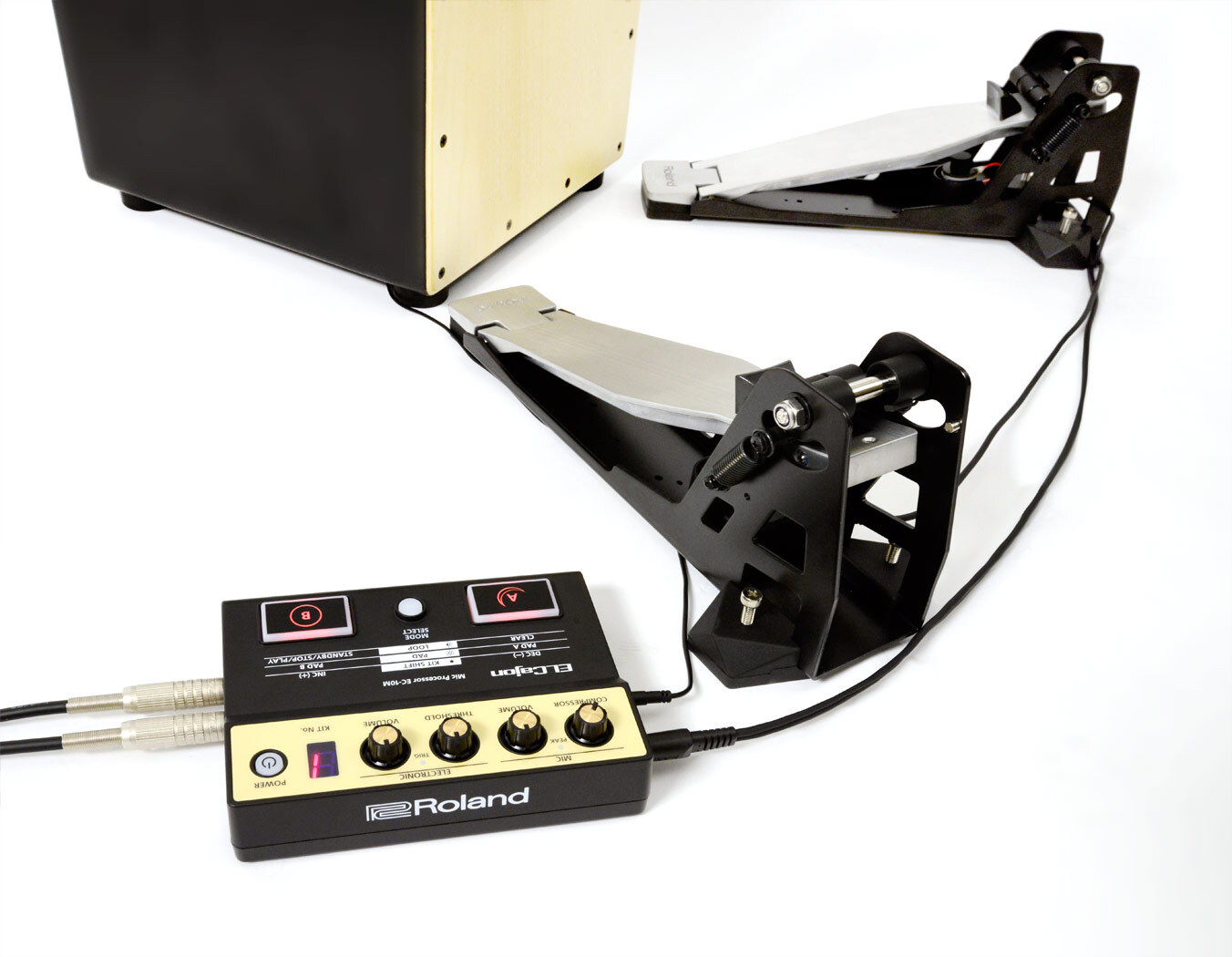

In addition to head and edge sounds` each of the 16 kits within the EC-10M includes two electronic sounds that are pre-assigned to the onboard A/B foot pads for triggering with toe taps while performing. If you’d prefer to play these sounds with authentic foot techniques and a more solid feel` up to two Roland kick trigger pedals (KT-10` KT-9` or KD-7) can be connected.*

*A splitter cable (such as the optional PCS-31L) is required to connect two kick trigger pedals to the EC-10M.

LIGHT` COMPACT` AND BATTERY-POWERED

You can use the compact EC-10M anywhere` since it weighs just 500 g/1.1 lbs. and runs on four AAA batteries. The included clip-on condenser mic is compact and convenient` eliminating the need to take up valuable stage space with a mic stand and large microphone. With its small footprint` the EC-10M is an easy fit in the tightest performing spaces.

AMPLIFY YOUR ACOUSTIC CAJON AND EC-10M LAYERED SOUNDS

Along with being a sound module for electronic sounds` the EC-10M also functions as a mic preamp for the clip-on mic` enabling you to amplify both the acoustic cajon and layered sounds through an amp or PA. You can send the sounds to two independent outputs` or mix them together to one. With the EC-10M` it’s simple to achieve a powerful` consistent cajon sound at every gig` from intimate street performances to the biggest concert stages.

RECORD PERCUSSION PHRASES AND PLAY ALONG

The EC-10M includes a built-in looper* for the electronic layered sounds. This lets you create instant percussive backing for acoustic cajon playing or jamming with another instrument. The looper is controlled using the A/B foot pads` and you can capture electronic sounds triggered from the cajon and external pedals in your loops. And by changing the kits while the loop is playing` the tones in the loop are changed too. With this cool creative option` your acoustic cajon performances will be transformed forever!

*Recorded phrases cannot be saved.

Secifications

Sound Kit Variation

16

Layered Sound Contents

2 (High` Low)

Controls

[Top Panel]

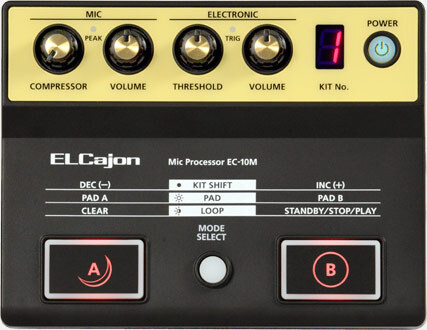

POWER switch
(MIC) COMPRESSOR knob
(MIC) VOLUME knob
(ELECTRONIC) THRESHOLD knob
(ELECTRONIC) VOLUME knob

MODE SELECT button
A button
B button

[Left Side]
MIC GAIN knob
ENHANCE switch

Indicators

KIT Number

Connectors

TRIGGER INPUT jack: 1/4-inch TRS phone type
MIC INPUT jack: Stereo miniature type (Use included clip mic only)
MIC/MIX OUTPUT jack (MONO): 1/4-inch phone type
ELECTRONIC OUTPUT jack (MONO): 1/4-inch phone type
DC IN jack

Power Supply

AC adaptor (DC5.7V)

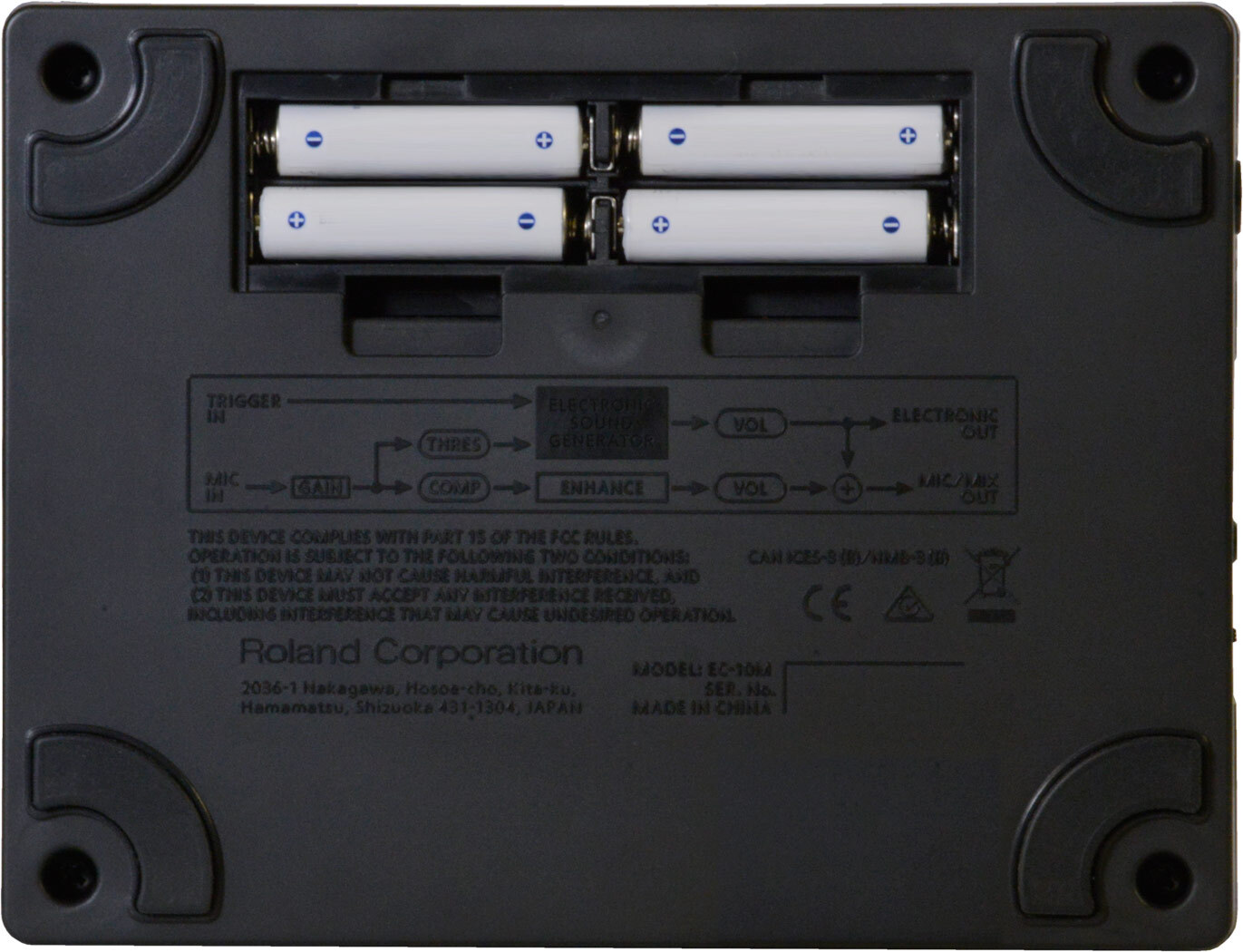

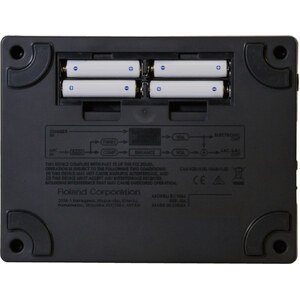

Rechargeable Ni-MH battery (AAA` HR03) x 4

Current Draw

150 mA

Expected battery life under continuous use

Approx. 5 hours.
* These can vary depending on the specifications of the batteries` capacity of the batteries` and the conditions of use.

Accessories

Clip Mic
Owner's manual
Leaflet USING THE UNIT SAFELY
AC adaptor

Options (sold separately)

Kicks: KD-7` KT-9` KT-10
Stereo Split Cable: PCS-31L

Size and Weight

Width

175 mm
6-15/16 inches

Depth

135 mm
5-3/8 inches

Height

55 mm
2-3/16 inches

Weight

500 g
1 lb. 2 oz.
