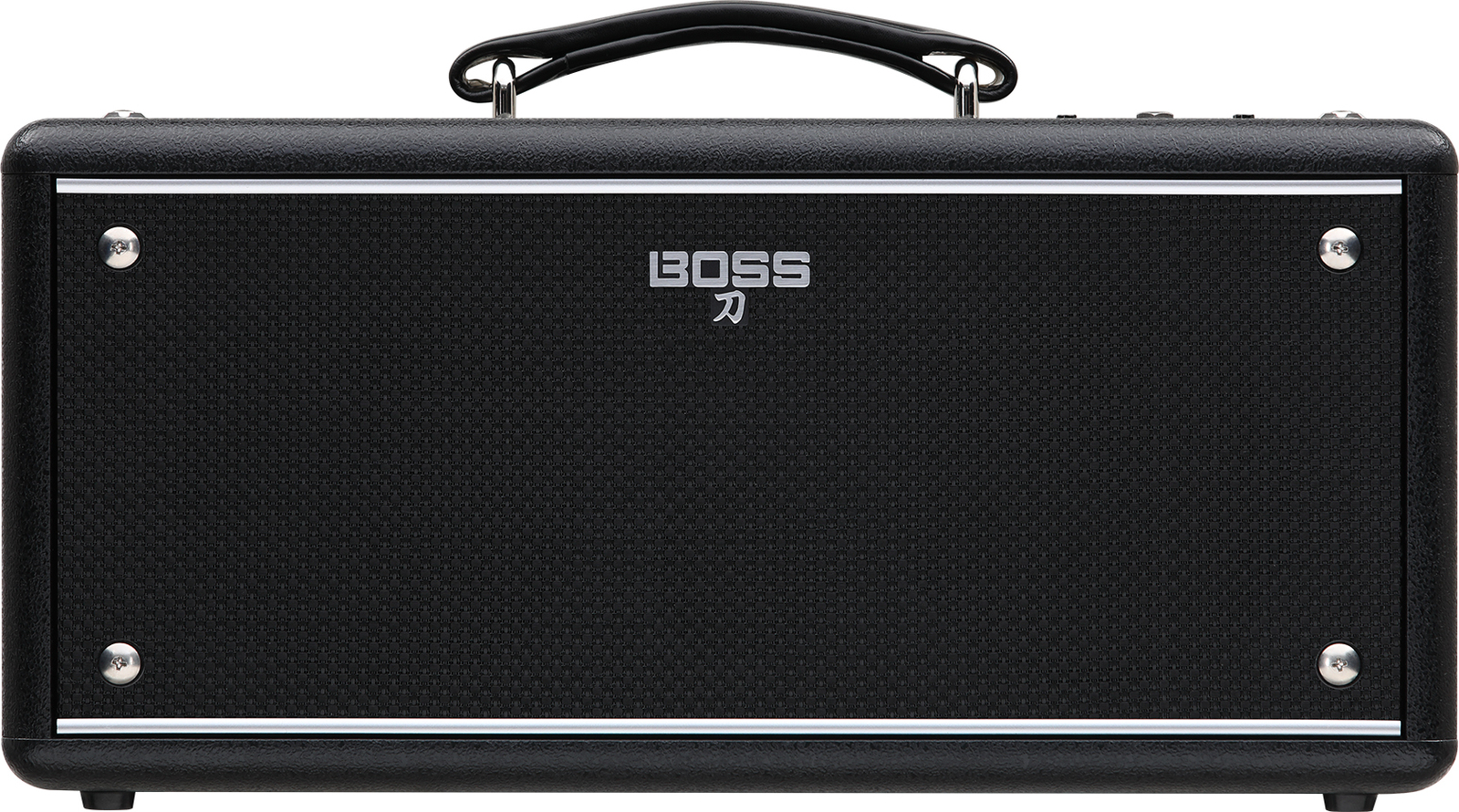

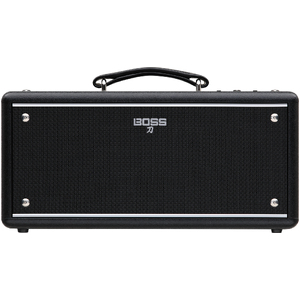

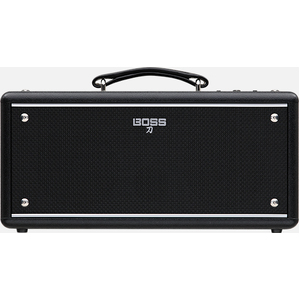

KATANA-AIR EX Katana EX Wireless Guitar Amp

SKU: KTNAIREX

Stock Availability:

In Store
Arties Aspley store

Out of Stock
Online
Ships from suppliers warehouse

Out of Stock

Powerful desktop amplifier with professional stereo sound, BOSS wireless connectivity, acclaimed Katana amp and effect tones, and versatile features for practice, recording, and performance.

Specifications
Output: <AC adaptor>
Maximum power output: 35W (17.5 W+17.5 W)

<Battery>
Rated power output: 20 W (10 W+10 W)
(when using the alkaline batteries, Ni-MH batteries, Roland Rechargeable Amp Power Pack (BTY-NIMH/A))
Nominal Input Level: INPUT: -10 dBu (1 M ohm)
AUX IN: -10 dBu
Nominal Output Level: LINE OUT (L/MONO, R): -10 dBu
Speakers: 12 cm (5 inches) x 2
Controls: POWER button
Bluetooth button
MASTER knob

<AMPLIFIER>
AMP TYPE knob
GAIN knob
VOLUME knob

<EQUALIZER>
BASS knob
MIDDLE knob
TREBLE knob

<MULTI EFFECT>
BST/MOD knob
BST/MOD button
DELAY/FX knob
DELAY/FX button
TAP button
REVERB knob
REVERB button

<TONE SETTING>
CH A button
CH B button
PANEL button
Indicators: POWER
Bluetooth
Guitar Wireless
PANEL
CH A
CH B
BST/MOD
DELAY/FX
REVERB
TAP
Connectors: Input jack: 1/4-inch phone type
AUX IN jack: Stereo miniature phone type
PHONES OUT jack: Stereo miniature phone type
TRANSMITTER IN jack: Stereo 1/4-inch phone type
LINE OUT (L/MONO, R) jacks: 1/4-inch phone type
USB port: USB B type
DC IN jack
Power Supply: AC adaptor (DC 13 V)
Alkaline battery (AA, LR6) x 8
Ni-MH battery (AA, HR6) x 8(commercially available)
Roland Rechargeable Amp Power Pack (BTY-NIMH/A)
Current Draw: 680 mA
Expected battery life under continuous use: Alkaline battery: Approximately 7 hours
Ni-MH battery: Approximately 10 hours (When using batteries having a capacity of 2500 mAh.)
Roland Rechargeable Amp Power Pack (BTY-NIMH/A): Approximately 16 hours

* These can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use.
Accessories: Owner’s Manual
Leaflet USING THE UNIT SAFELY
Transmitter
AC adaptor
Power cord
Options (sold separately): Roland Rechargeable Amp Power Pack: BTY-NIMH/A
Wireless MIDI Expression Pedal: EV-1-WL
Wireless Footswitch: FS-1-WL
Size and Weight
Width: 414 mm
16-5/16 inches
Depth: 192 mm
7-7/16 inches
Height: 236 mm
9-5/16 inches
Weight (excluding AC adaptor): 5.6 kg
12 lb 6 oz
Transmitter (WL-T)
Nominal Input Level: INPUT: -10 dBu (1 M ohm)
Control: Power button
Indicator: BATTERY
Connectors: Input plug: Stereo 1/4-inch phone type
DC IN 5 V port: USB Micro-B
Power Supply: Lithium-ion battery
Supplied from the DC IN 5 V port
Current Draw: 47 mA
Expected battery life under continuous use: Approximately 12 hours
Size and Weight
Width: 87 mm
3-7/16 inches
Depth: 22 mm
7/8 inches
Height: 36 mm
1-7/16 inches
Weight (excluding AC adaptor): 43 g
2 oz
* 0 dBu = 0.775 Vrms
*The specifications are subject to change without notice.
