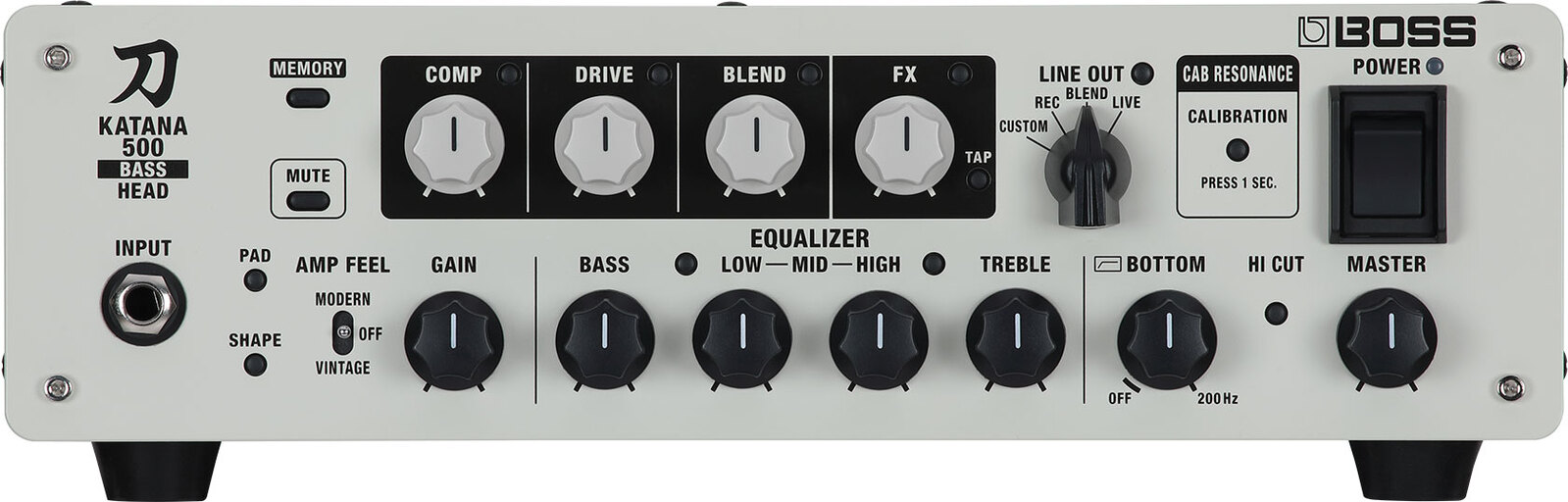

KTN500B HD Bass Amplifier

Specifications

Output Power

500 W (4 ohms) Peak
250 W (8 ohms) Peak

Nominal Input Level

INPUT: -10 dBu (1 M ohms)
RETURN IN: -10 dBu (100 k ohms)

Controls

MEMORY button
MUTE button
BOTTOM knob
HI CUT button
MASTER VOLUME knob
POWER switch

[AMPLIFIER]
PAD button
SHAPE button
AMP FEEL Switch (VINTAGE, OFF, MODERN)
GAIN knob

[INPUT EFX]
COMP button
DRIVE button
COMP knob
DRIVE knob

[EFFECTS]
BLEND button
FX button
TAP buttom
BLEND knob
FX knob

[EQUALIZER]
LOW MID button
HIGH MID button
BASS knob
LOW MID knob
HIGH MID knob
TREBLE knob

[LINE OUT]
LINE OUT button
LINE OUT konb (CUSTOM, REC, BLEND, LIVE)
GND LIFT switch (OFF, ON)
SELECT switch (POST, PRE, DIRECT)

[CAB RESONANCE]
CALIBRATION button

Indicators

PAD
SHAPE
MEMORY
MUTE
COMP
BLEND
FX
TAP
LOW MID
HIGH MID
LINE OUT
CALIBRATION
HI CUT
POWER

Connectors

INPUT jack: 1/4-inch phone type
LINE OUT jack:XLR type
SPEAKER OUT (MIN 4 ohms) connector: speakON type
PHONES/REC OUT jack: Stereo 1/4-inch phone type
EXP PEDAL jack: 1/4-inch TRS phone type
GA-FC/CTL CH1/CH2 jack jack: 1/4-inch TRS phone type
USB port: USB B type
BLUETOOTH ADAPTOR SLOT: Bluetooth® Audio MIDI Dual Adaptor
AC IN jack

Power Consumption

500 W

Accessories

Owner's Manual
Power cord
GA-FC sticker

Options (sold separately)

Footswitch: BOSS FS-5L, BOSS FS-6, BOSS FS-7
Expression pedal: Roland EV-5, BOSS EV-30, BOSS FV-500L, BOSS FV-500H
GA FOOT CONTROLLER (GA-FC, GA-FC EX)
Bluetooth® Audio MIDI Dual Adaptor (Model BT-DUAL)

Size and Weight

Width

298 mm
11-3/4 inches

Depth

212 mm
8-3/8 inches

Height

96 mm
3-13/16 inches

Weight (including battery)

2.8 kg
6 lbs 3 oz

* 0 dBu = 0.775 Vrms

*The specifications are subject to change without notice.
