Element Active System™

Advanced Undersaddle Pickup With Unrivaled Dynamic Range

Unlike typical undersaddle acoustic guitar pickups that are dependent on string compression for their sound, the Element was engineered to mirror the soundboard’s actual movement as you play. At the heart of the pickup, a flexible film sensor only 2 thousandths of an inch thick picks up the guitar’s most delicate nuances. Tracking the motion of the top rather than a direct string attack suppresses “quack” caused by compression and unlocks the Element’s unrivaled dynamic range. The pickup’s minimalist construction lessens any influence on the acoustic properties and creates an intimate coupling between the pickup and guitar for the highest fidelity possible.

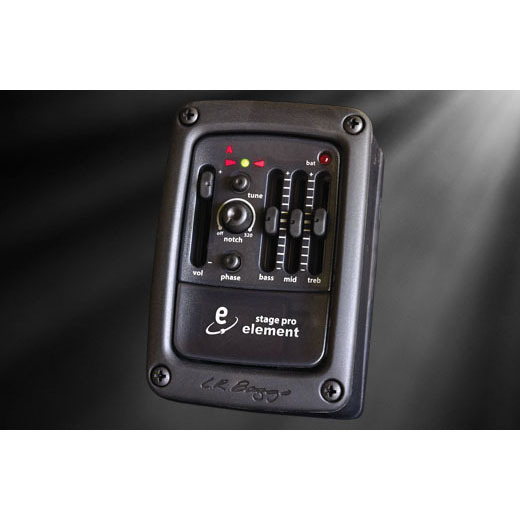

Stagepro Element™
The Stagepro Element is a side-mounted preamp/EQ that offers battery access and a full chromatic tuner that is hidden beneath the control panel to maintain a clean, classy look. The three band EQ With phase inversion and Garrett Null notch filter controls deliver warm, pristine sound even under the most challenging conditions. The system includes the Element pickup and pre-wired strapjack.

FEATURES:

• Includes Element pickup
• Side mounted preamp/controls
• Master volume
• Bass, mid & treble control
• Notch filter
• Phase inversion
• Onboard tuner With mute function
• 9V Battery access drawer
• Battery life indicator
• Battery life: 100+ hrs

Element Active System™ Support

Please Note: LR Baggs products must be installed by an authorized LR Baggs dealer to qualify for warranty coverage. Technical assistance will not be provided for home or hobbyist installations.

Stagepro Element™

 Stagepro Element™ User Guide
