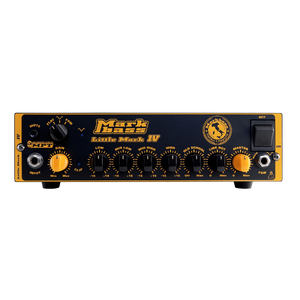

The new Little Mark IV amps add some amazing features to our flagship Markbass Little Mark III amplifier, an industry standard for tone, portability and value. The new bi-band limiter featured on this amp responds faster and more dynamically to your playing. Its paired with a 500 watt power amp providing impeccable bass frequency reproduction thanks to our MPT proprietary amp specifically designed for bass. In addition the Little Mark IV features a mute switch, and the 3 way switch that that includes the options of a Flat, Scooped or FSW (Footswitchable) EQ options.
Inputs
Input impedance: 500kOhm, maximum voltage 15Vpp
Balanced Input (XLR) impedance: 100kOhm, maximum voltage 25Vpp
Effect Return Impedance: 33kOhm, maximum voltage 10Vpp
Controls:
Gain: -60dB-+23 dB range
Master Volume
Line Out Level
Ground Lift switch on rear panel
Pre/Post EQ switch on rear panel
Equalization
Low: Center frequency 60Hz, level ±16dB
Low Mid: Center frequency 360Hz, level ±16dB
High Mid: Center frequency 800Hz, level ±16dB
High: 5kHz shelf, level ±16dB
VPF (Variable Pre-shape Filter): Center frequency 380Hz (cut)
VLE (Vintage Loudspeaker Emulator): Frequency range 250Hz-20 kHz (cut)Output:
Line Out: Balanced XLR, maximum voltage 20Vpp
Effect Send: Unbalanced, maximum voltage 20Vpp (pre-EQ)
Tuner Out: Unbalanced, maximum voltage 2Vpp
Speaker Out: Speakon & 1/4" combo, 1/4"
Output Power: 300W RMS @ 8 ohm, 500W RMS @ 4 ohm
