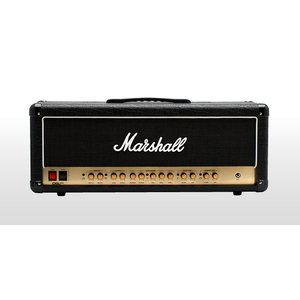

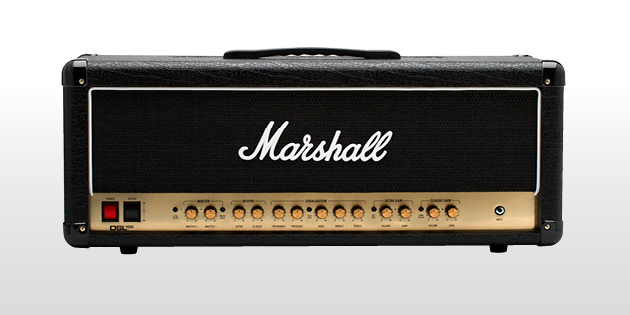

Marshall DSL100H
SKU: 76DSL100H
DSL100H
The DSL100H has two gain channels to produce that legendary Marshall sound with rich functionality for those who require flexibility and unquestionable quality. The amp can move between two sounds within each gain channel, so that players can create and release their personality through sound.
TECHNICAL SPECIFICATION
GENERAL
Model
DSL100H
Range
DSL
Technology
Valve
Channels
2 (Split) "Ultra gain" and "classic gain"
ELECTRONICS
Output wattage
100w (with power reduction option to 50w)
Outputs
Speaker outputs: 5 x 1/4" jack sockets (16Ω load / 8Ω load / 4Ω load), 1 x 1/4" jack emulated line out
Inputs
1 x 1/4" instrument jack, 1 x 3.5mm jack Aux in, MIDI in, footswitch
Controls
Loop on/off switch, master volume II, master volume I, master select switch, reverb (ultra gain channel), reverb (classic gain channel), resonance, presence, tone shift switch, bass, middle, treble, ultra gain channel (OD1/2 switch, volume, gain), classic gain channel (clean/crunch switch, volume, gain), low power option (on rear)
Effects
Reverb
Effects loop
Yes, Send/Return
VALVES
Pre amp valves
4 x ECC83
Power amp valves
4 x EL34
ACCESSORIES
Footswitch
PEDL-90012 included. Compatible with PEDL-91016 modes include: 1 - Clean (classic green) 2 - Crunch (classic red) 3 - OD1 (ultra green) 4 - OD2 (ultra red) 5 - Master 1/Master 2 (toggle) 6 - FX Loop on/off
Cable
Detachable power cable included
DIMENSIONS
Weight (kg)
24.2
Width (mm)
740
Height (mm)
274
Depth (mm)
242
|
Type: |
Electric Guitar Amp Heads |
| SKU | 76DSL100H |
| Brand | Marshall |
