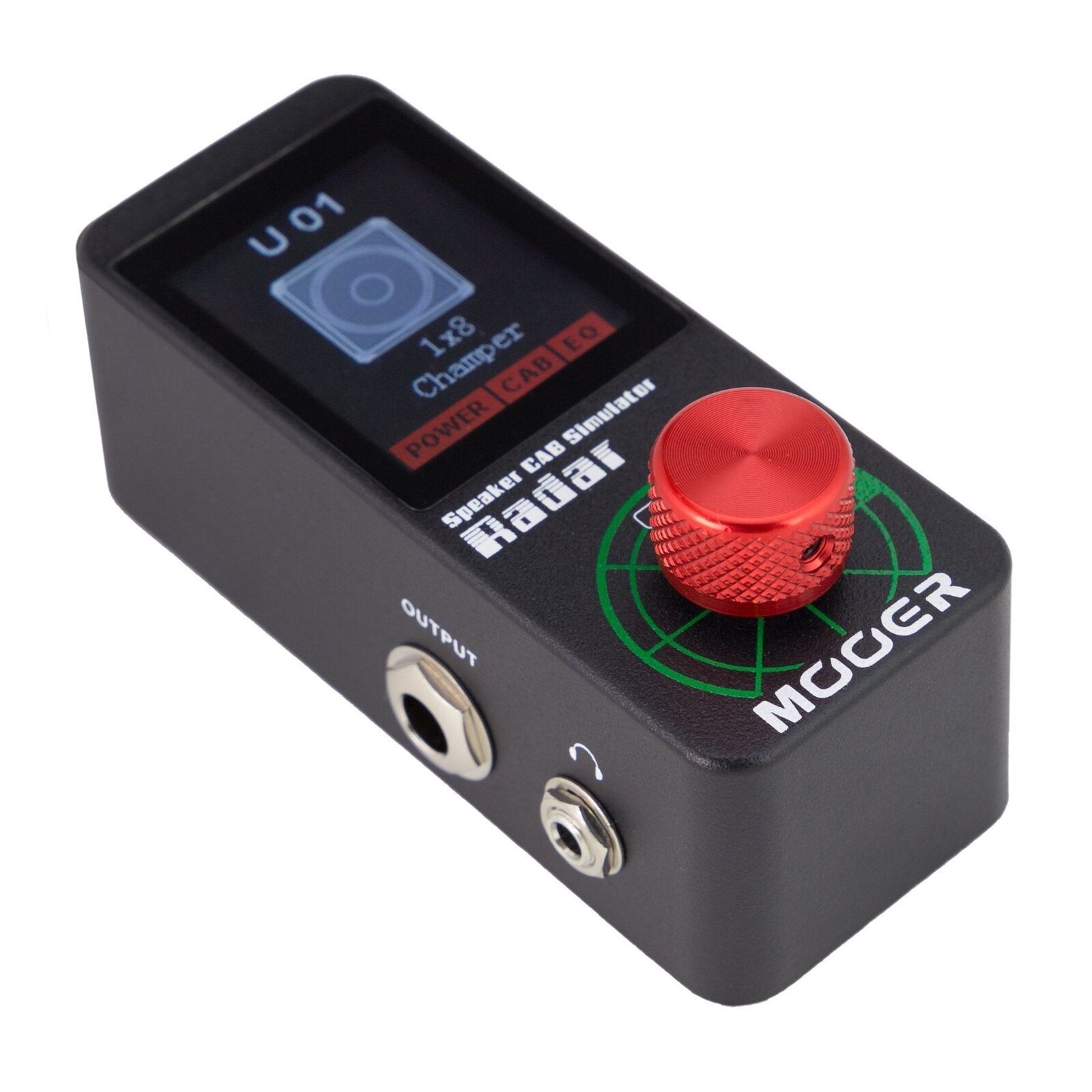

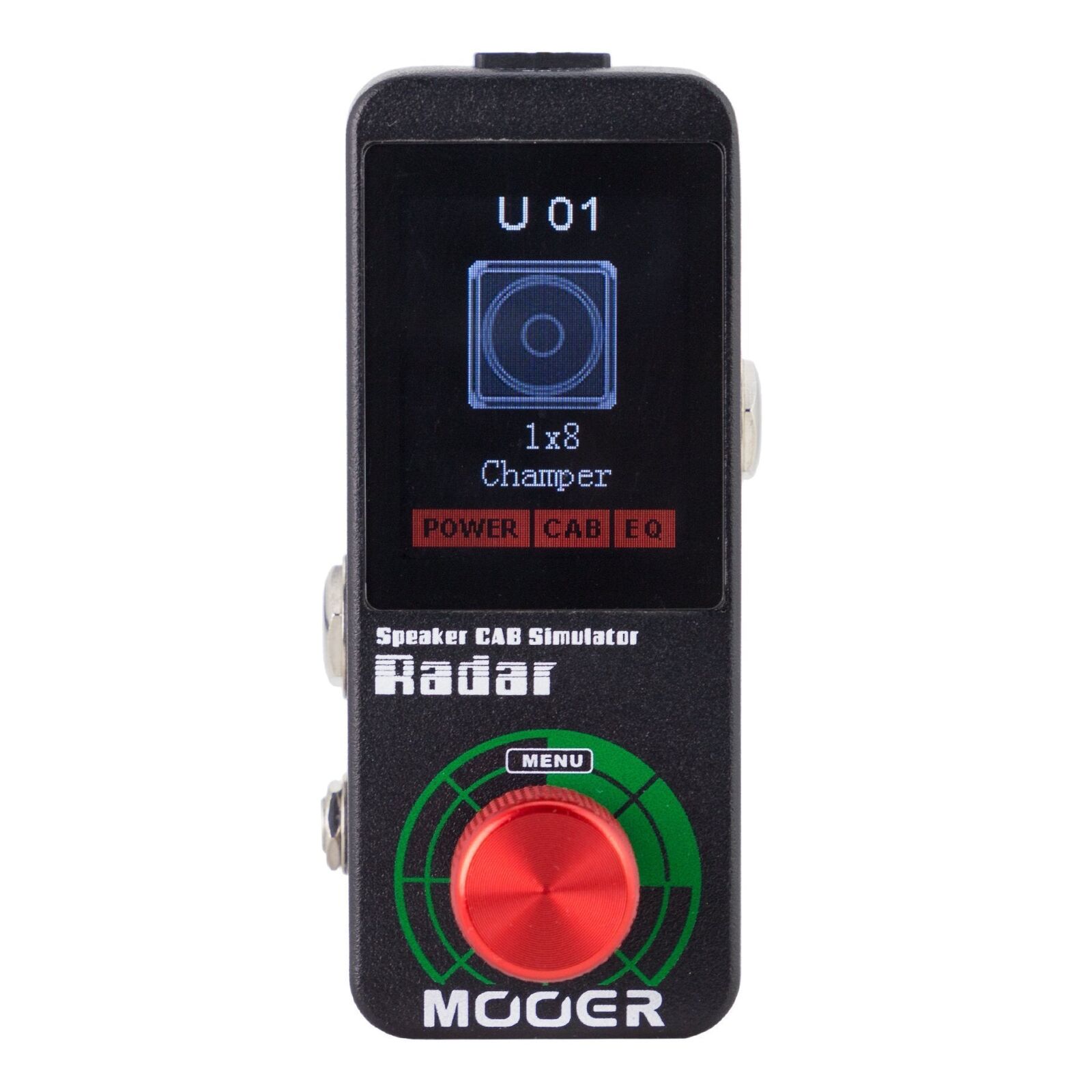

Mooer 'Radar' Speaker Cabinet Simulator

The Mooer Radar is a professional speaker cabinet simulator perfect for lightweight gigging, silent practice or recording when you are limited by space or noise restrictions. Featuring thirty classic speaker cabinet simulations, power amp simulator, microphone simulator and the ability to store and recall user presets, the Radar is the ultimate in tonal flexibility.



 Main Features

* 30 different speaker cab models

* 11 mic models

* 4 power amp models

* Customizable EQ stage

* Capable of loading custom IRS

* Store and recall up to 36 user presets

* Connect to PC editor via USB

* Supports headphones and lineout



Specifications:

Input: 1/4” mono jack (Impedance: 100k Ω)
Output: 1/4” mono jack (Impedance: 470 Ω)
Headphone: 1/8” stereo jack (Impedance: 10 Ω)
Sampling rate: 44.1K
Sampling accuracy: 24bit
Signal to noise ratio: 100dB
Frequency Range: 20Hz~20KHz

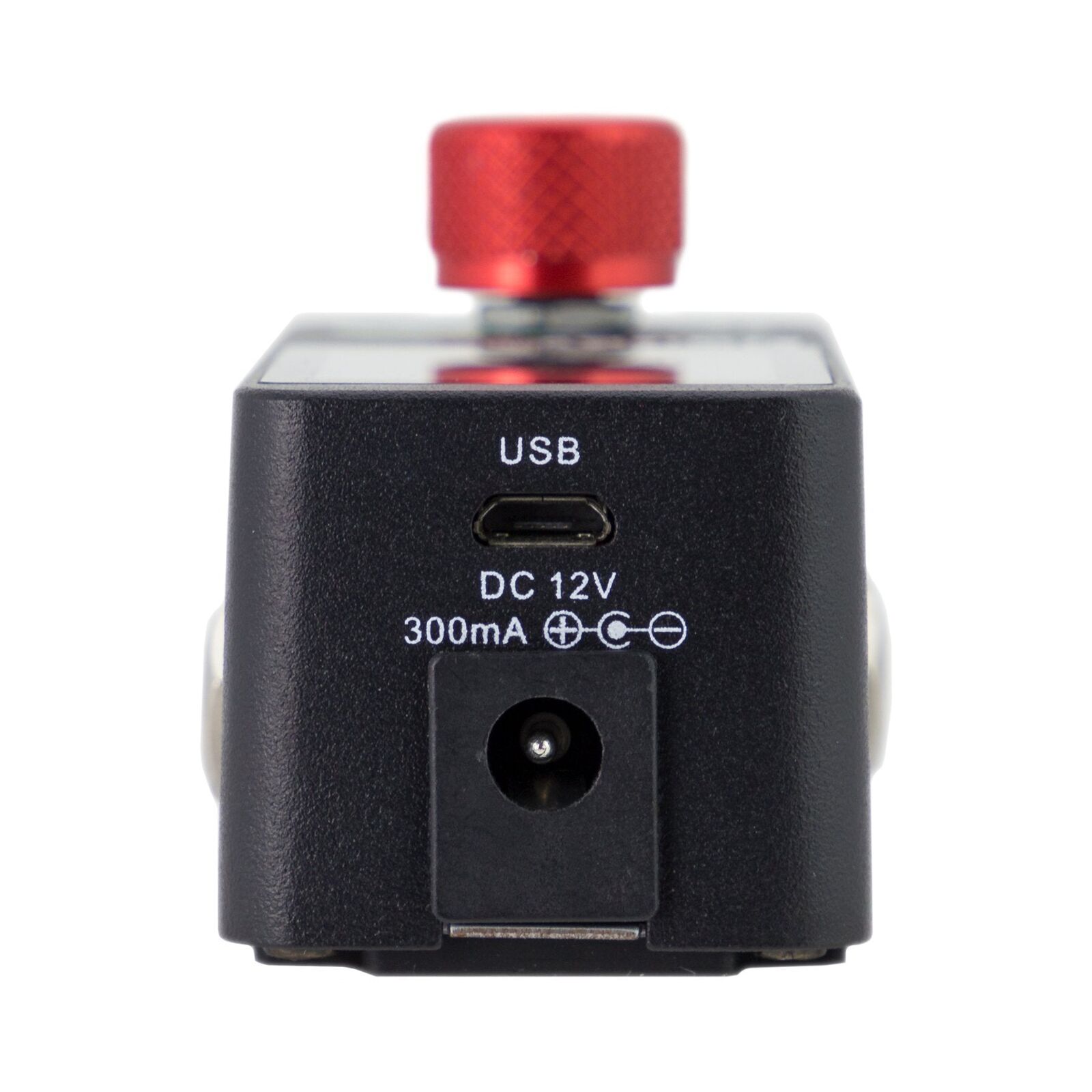

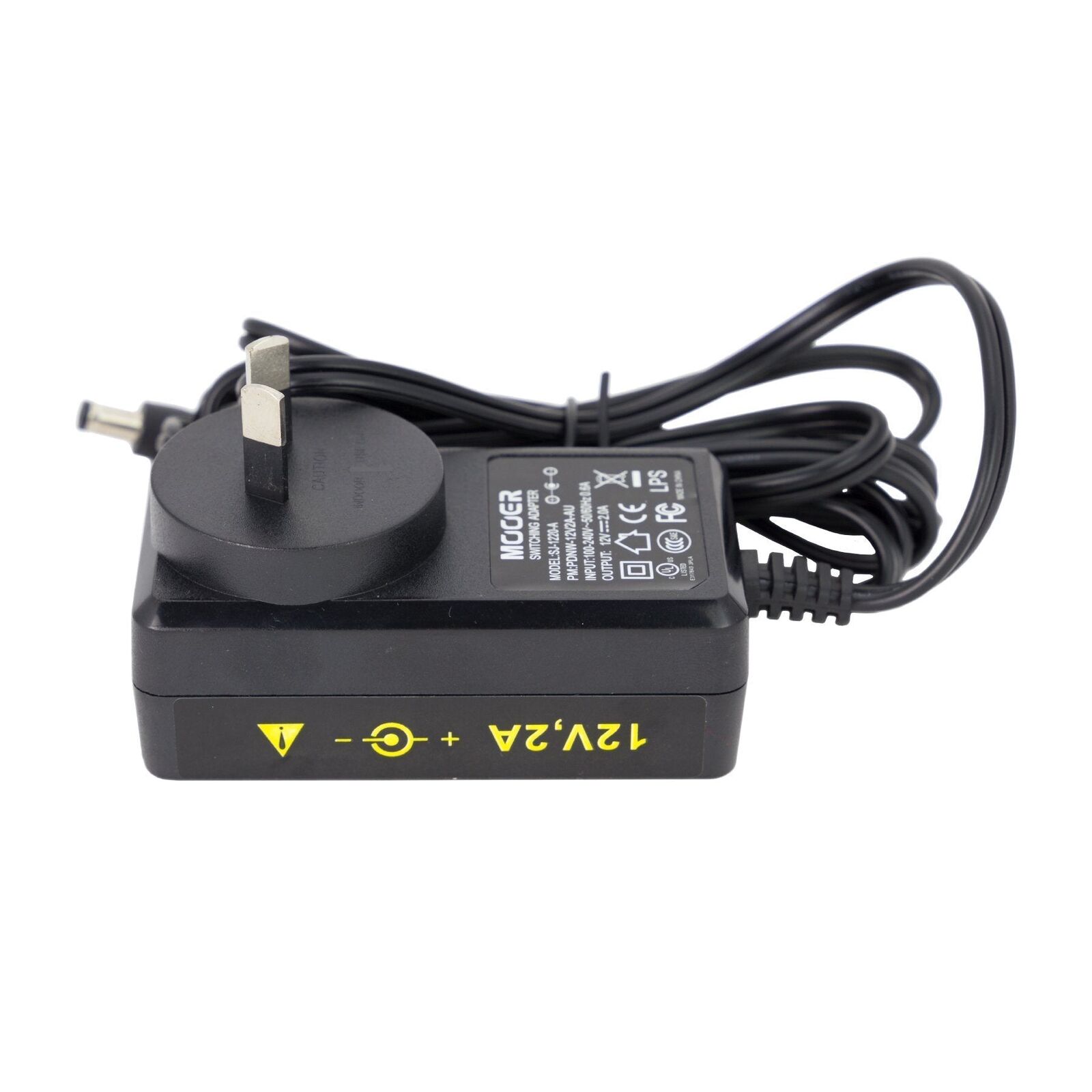

Power requirements: 12V DC Only use the power supply provided
Current Draw: 300mA
Dimensions: 93.5mm(D) x 42mm(W) x 52mm(H)
Weight: 150g



*Speaker simulators require some form of preamp, such as the Mooer Micro Preamp series of pedals or a guitar amplifier with FX loop to operate correctly.
The display is protected by a removable clear plastic film which can make the display appear foggy, dirty or scratched. Simply peel away the film for improved display visibility.
