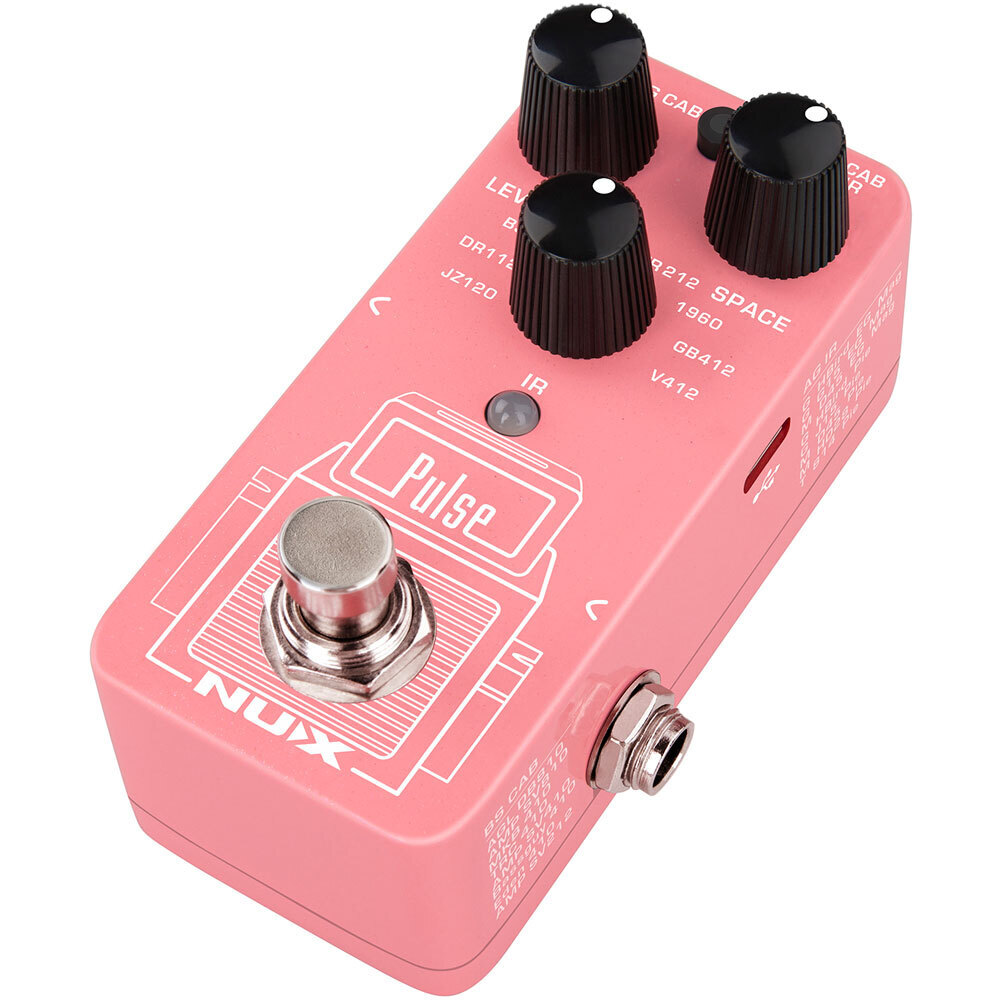

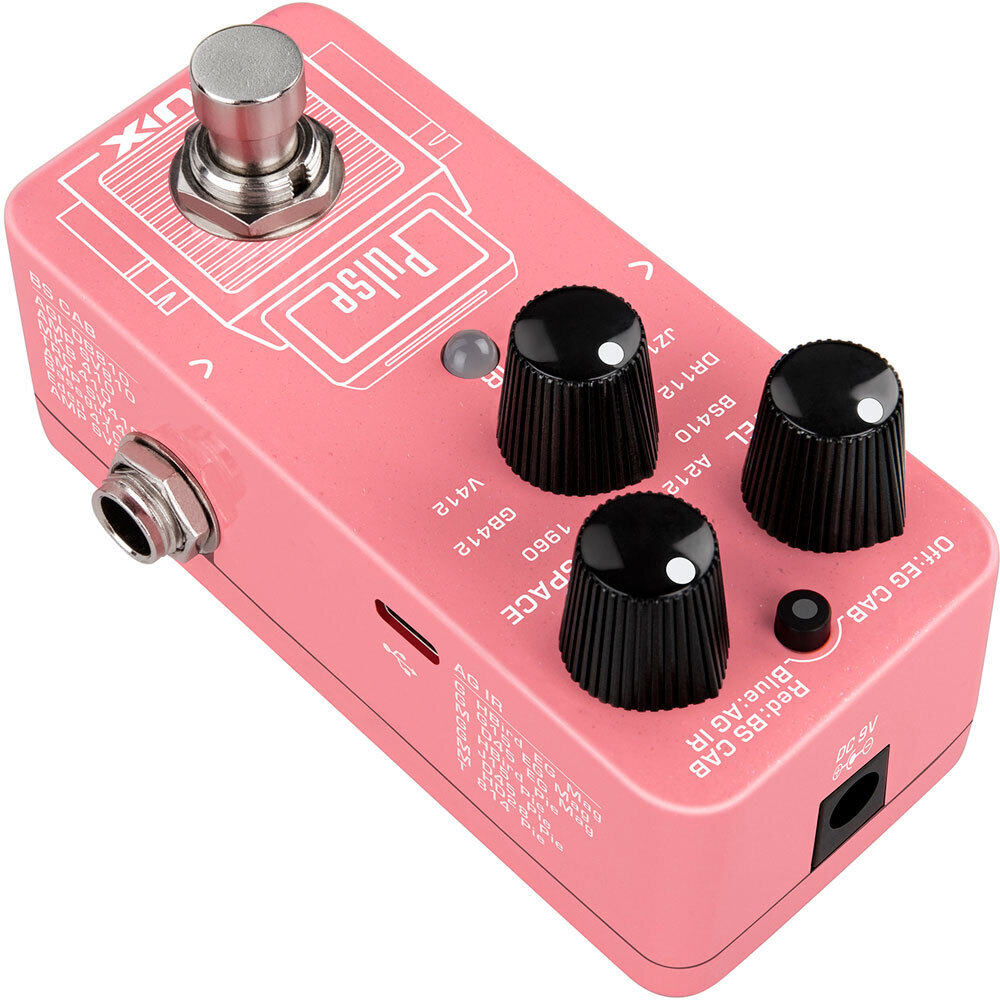

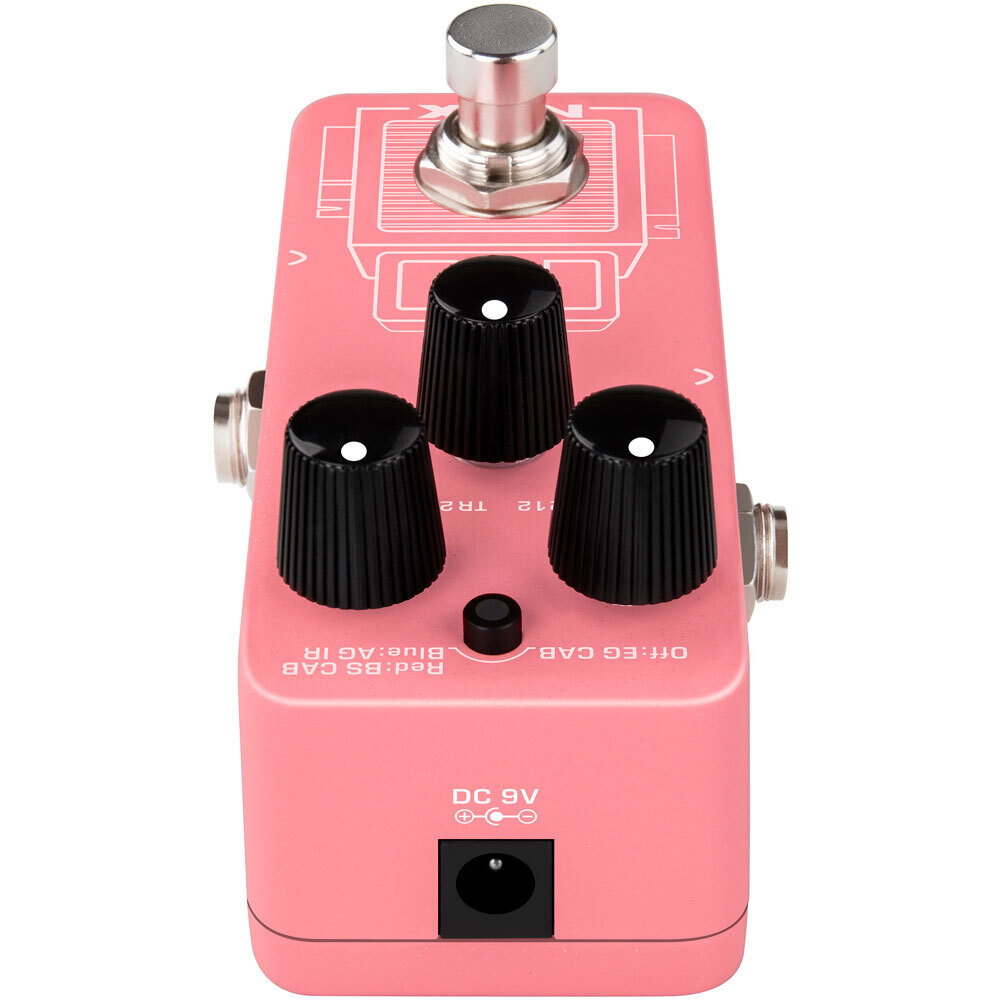

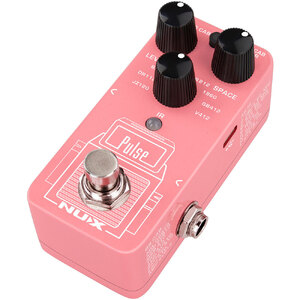

NU-X Mini Core Series "Pulse" IR Loader, Acoustic Guitar & Cabinet Simulator

Pulse (NSS-4) is a mini IR-Loader pedal with 3 different modes including EG CAB, BS CAB, and AG IR. You can switch the types by tapping the tap switch. Besides that, you can use Pulse as a silent practice tool (1/8" phone jack) in the end of your pedalboard and even as a USB recording interface onto DAW.

FEATURES:

• WAV format supports automatically. (through Pulse Editor)
• 3 default IR types in the mini enclosure. (Total = 24slots)
• Electric Guitar Cab IR: JZ120, DR112, BS410, A212, TR212, 1960, GB412, V412
• Bass Guitar Cab IR: AGL DB810, AMP SV810, MKB 410, TRC 410, AMP SV410, Bassguy 410, Eden 410, AMP SV212
• Acoustic Guitar IR: G HBird EG Mag, G J15 EG Mag, M D45 EG Mag, G HBird Pie, G J15 Pie, M D45 Pie, M HD28 Pie, T 814 Pie
• 1024 samples real time calculation
• True-bypass or Buffer-bypass
• Supports Stereo
• Low power consumption. (less than 100mA)
• USB Audio Stream, Firmware Update
• Pulse Editor for 3rd party IR loading, IR tweaking. (IR Level, Low Cut, High Cut)
• Mini but mighty! It also supports Stereo input & output (Use 1/4" TRS plug, and choose Stereo mode)
• The USB-C port is for firmware update. Connect USB cable to a PC and hold the footswitch to boot-up the device and to enter the DFU (Device Firmware Update) mode. Once connected you can do firmware updates using DFU updater software

SPECIFICATIONS:

• Input Impedance: 1MΩ
• Output Impedance: 10kΩ
• Dynamic Range: 103 dB
• DSP Processing: 48KHz / 32-bit
• A/D D/A Sampling Rate: 48KHz / 24-bit
• Power: 9V DC (Negative tip, Optional ACD-006A adapter)
• Current Draw: Less than 100mA
• Dimensions: 94 x 51 x 53mm (L x W x H)
• Weight: 175g



Ampless? No worry, Pulse IR loader is the compact solution!

EG CAB means electric guitar cabinet IRs. Pulse offers 8 guitar cab IRs:

• JZ120 (Roland Jazz 120)
• DR112 (Fender Deluxe Reverb)
• BS410 (Fender Bassman 410)
• A212 (VOX AC30 212)
• TR212 (Fender Twin Reverb 212)
• 1960 (Marshall 1960A 412)
• GB412 (Celestion Greenback 412)
• V412 (Celestion Vintage30 412)



BS CAB means bass cabinet IRs. Pulse offers 8 bass cab IRs:

• AGL DB810 (Aguilar DB 810)
• AMP SV810 (Ampeg SV810)
• MKB 410 (Mark Bass 410)
• TRC 410 (Trace Elliot 410)
• AMP SV410 (Ampeg SV410 + Tweeter)
• Bassguy 410 (Fender Bassman 410)
• Eden 410 (EDEN 410)
• AMP SV212 (Ampeg SV212)



AG IR means acoustic guitar IRs. Pulse offers 8 acoustic guitar IRs:

• G HBird EG Mag (Gibson Hummingbird for Electric Guitar Magnetic PU)
• G J15 EG Mag (Gibson J15 for Electric Guitar Magnetic PU)
• M D45 EG Mag (Martin D45 for Electric Guitar Magnetic PU)
• G HBird Pie (Gibson Hummingbird for Acoustic Guitar Piezo under saddle PU)
• G J15 Pie (Gibson J15 for Acoustic Guitar Piezo under saddle PU)
• M D45 Pie (Martin D45 for Acoustic Guitar Piezo under saddle PU), M HD28 Pie (Martin HD28 for Acoustic Guitar
• Piezo under saddle PU)
• T 814 Pie(Taylor 814 for Acoustic Guitar Piezo under saddle PU)



EDIT SOFTWARE

• You can download Pulse edit software on the product page. For the default slots, you can replace any 3rd party IRs into them.
• Pulse editor will convert WAV format automatically.
• You can setup the USB stream routing on Pulse editor.
• For more operation tips and tutorials, you can search it on NUX EFX & Amplifier YouTube channel.
• For MAC, there is no need for driver. For WIN, please visit the product page and click Support to download the related ASIO driver.
