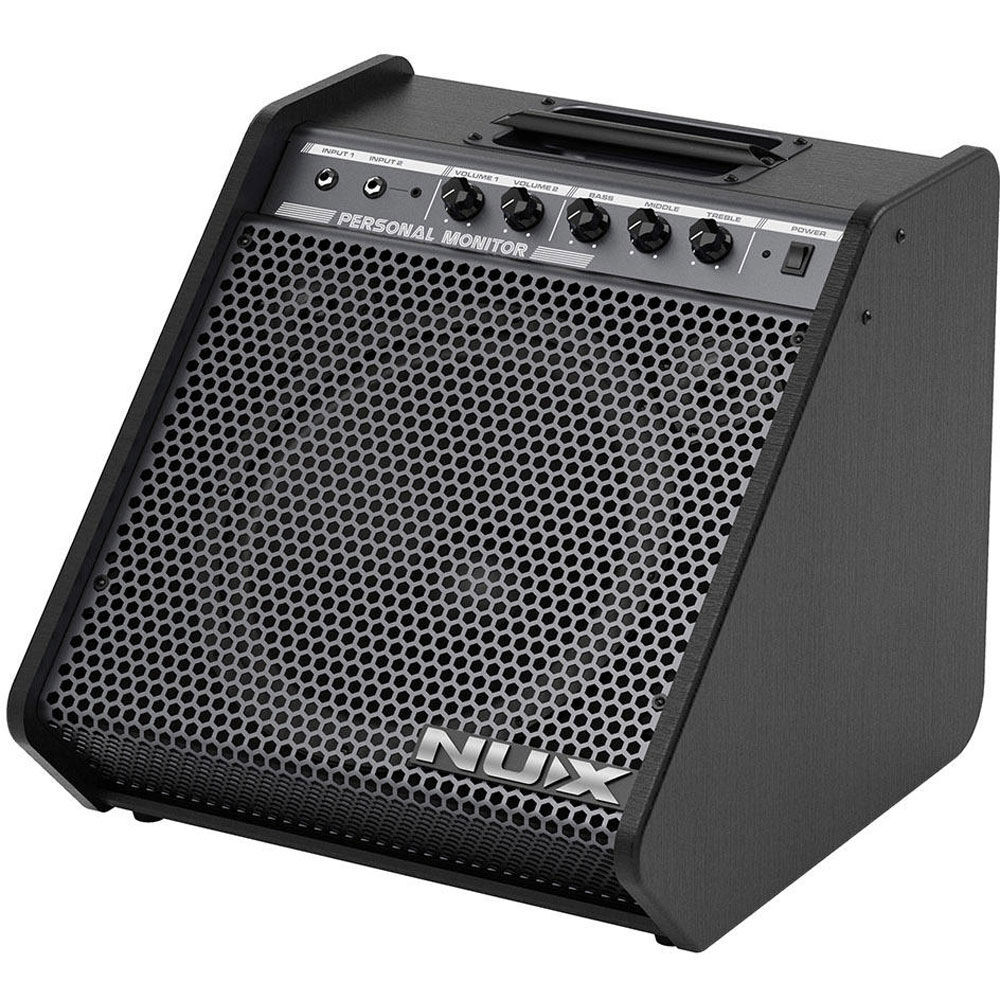

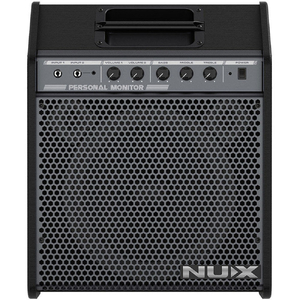

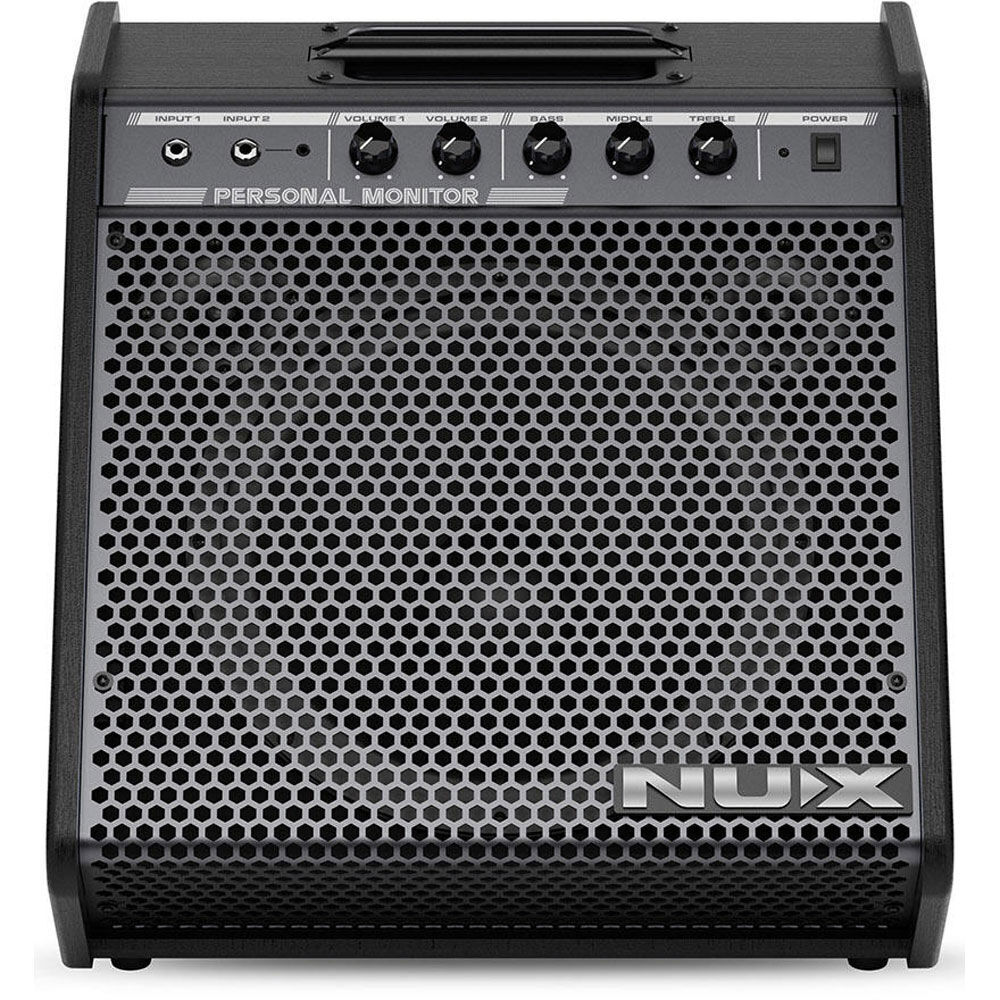

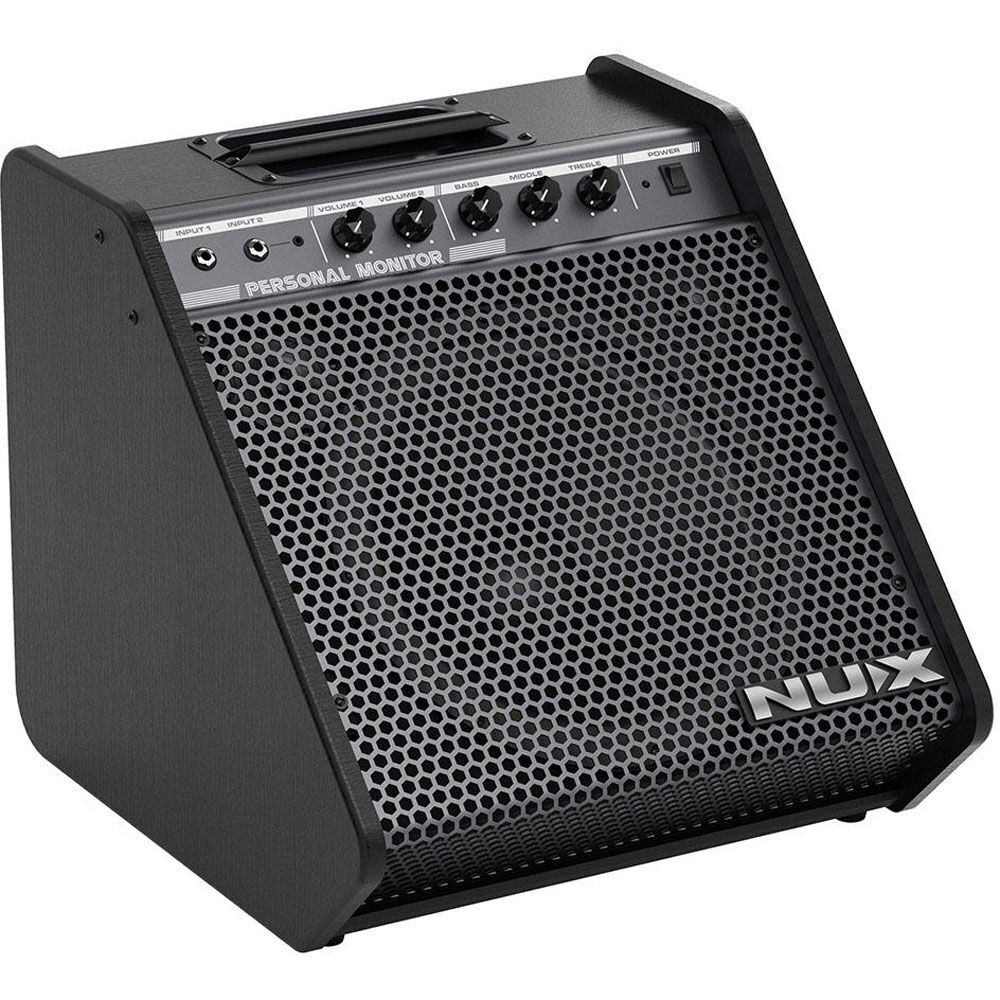

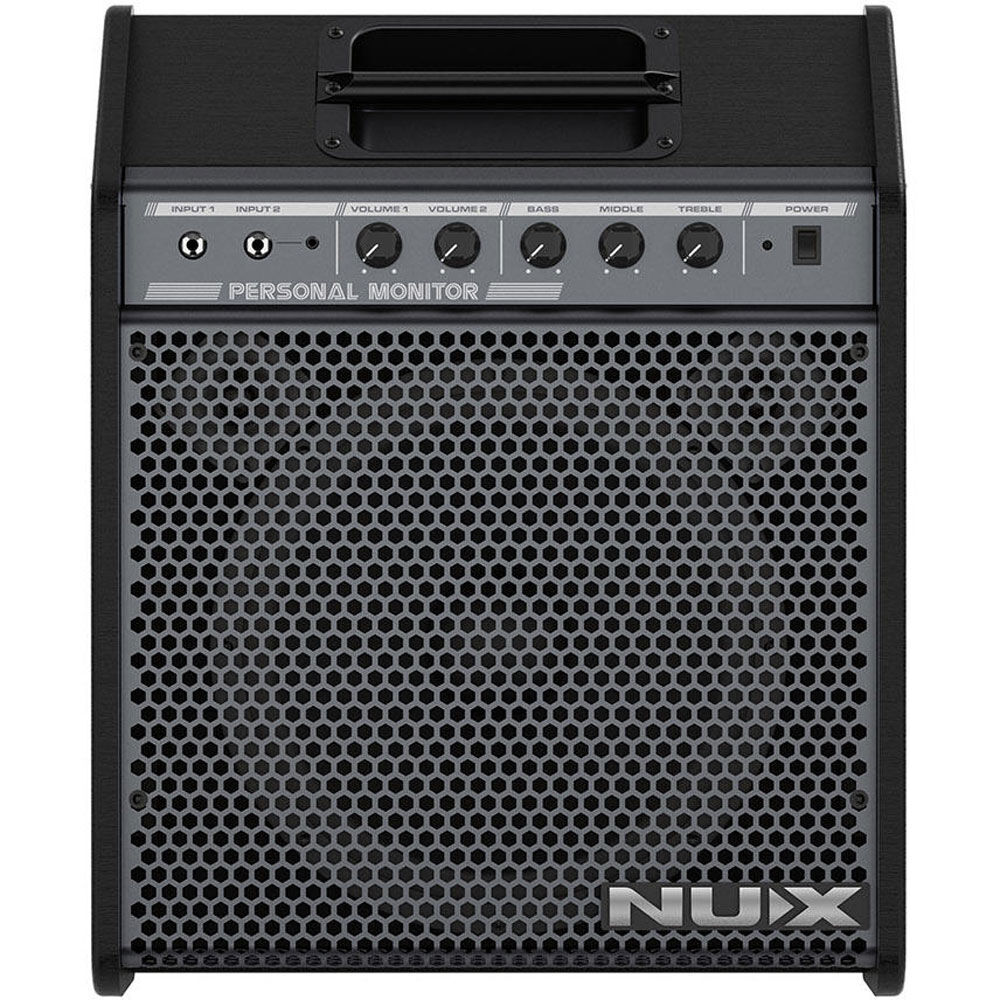

NU-X NPA-100 Professional Personal Monitor Speaker (120-Watts)

NPA-100 is a monitor speaker designed for digital drums, featuring high power, high resolution, and full-range performance. Upgraded specifically for the NUX digital drum series, it performs perfectly in practice, rehearsals, and recordings. It offers high dynamics and rich expression, accurately capturing the details of a drummer’s performance.



FEATURES:

• 120-Watt powerhouse
• 12" woofer and two 2" tweeters
• Dual-channel inputs with dedicated volume controls
• Two XLR outputs with differential capabilities
• 3-band EQ (Bass, Middle, Treble)

SPECIFICATIONS:

• Output Power: 120W
• Frequency Response: 45Hz - 20kHz (-3DB)
• Woofer: 12" x 1
• Tweeter: 2" x 2
• INPUT 1: Stereo
• INPUT 1 Impedance: 10kOhms
• INPUT 2: Stereo
• INPUT 2 Impedance: 10kOhms
• AUX IN: Stereo
• AUX IN Impedance: 10kOhms
• DI OUT: Differential capabilities
• DI OUT Impedance: 560 Ohms
• (EQ Control) Bass Frequency: ±10dB (20Hz to 360Hz)
• (EQ Control) Mid Frequency: ±10dB (360Hz to 4kHz)
• (EQ Control) Treble Frequency: ±10dB (4kHz to 20kHz)
• Power Supply: AC 100-240V 50/60Hz
• Dimensions (L x W x H): 463 x 434 x 405 mm
• Weight: 15.8 kg



Powerful External Speaker
It is equipped with a 12-inch woofer, two 2-inch tweeters, and a rated power of 120W, offering ample dynamic headroom for rehearsals and stage performances.





Dedicated Digital Drum Input
The NPA-100 is equipped with two input channels, allowing you to connect two 6.35mm cables or a single 6.35mm stereo cable directly.

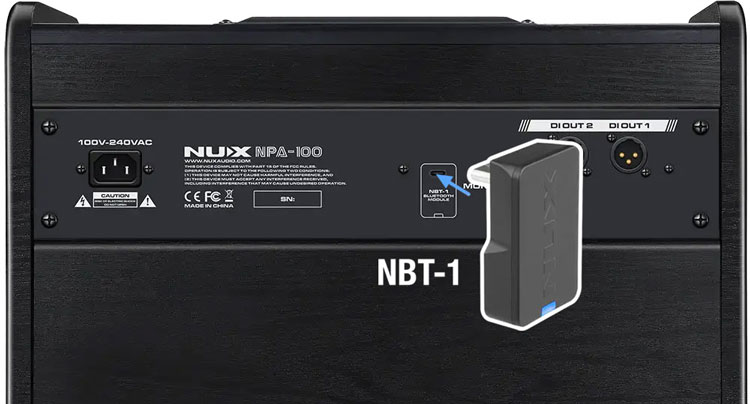

Bluetooth Connection
You can connect via Bluetooth for playback. Alternatively, you can use the 3.5mm line input to connect external audio devices, such as CD players, MP3 players.

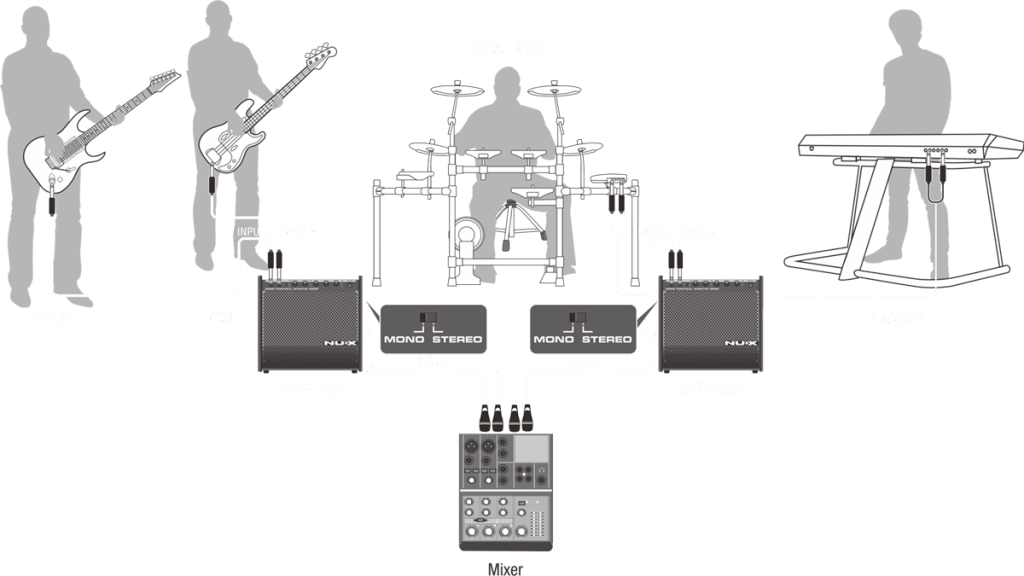

Versatile Usage
The NPA-100 offers two input channels, allowing you to connect two digital instruments with audio output at the same time. With two NPA-100, a standard four-piece band can achieve a powerful performance. For large-scale concerts, the NPA-100 can also be used as a stage monitor speaker.



XLR Output for Recording and Performance

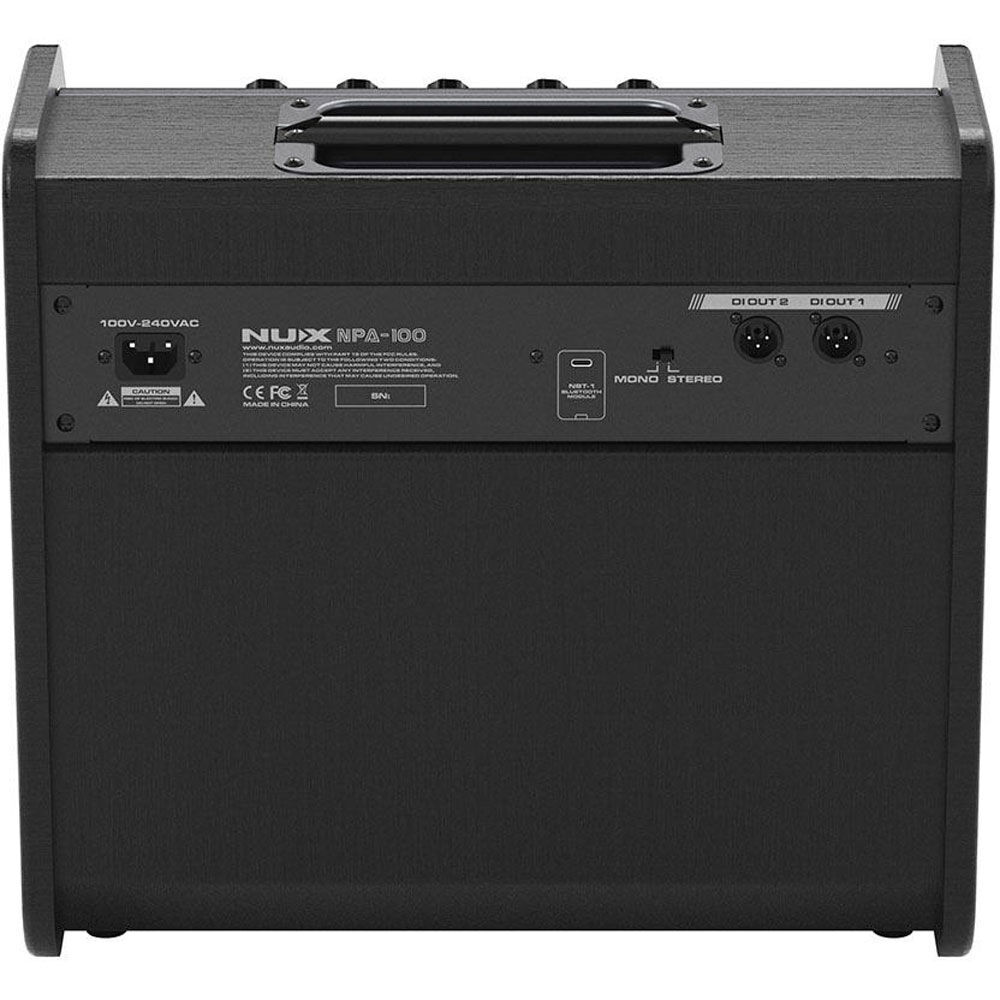

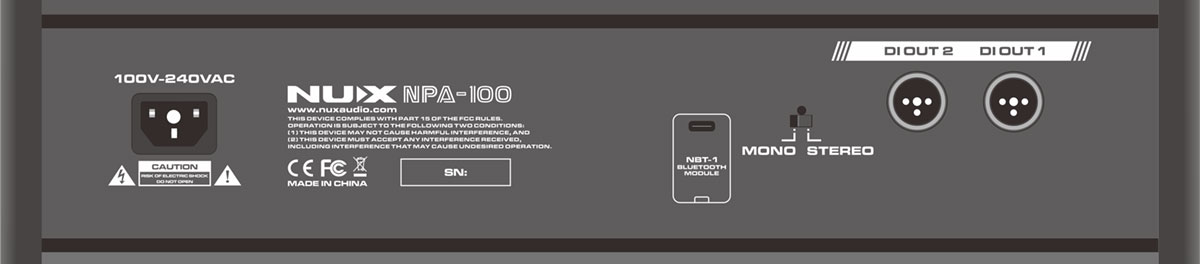

NPA-100 offers two balanced XLR DI OUT ports, allowing you to directly connect to a mixing console or record your performance through a recording device.





Versatile Mixer
NPA-100 is designed with circuitry optimized for the frequency range of drum. It features three adjustable knobs for controlling the treble, middle and bass frequencies, giving you great flexibility.
