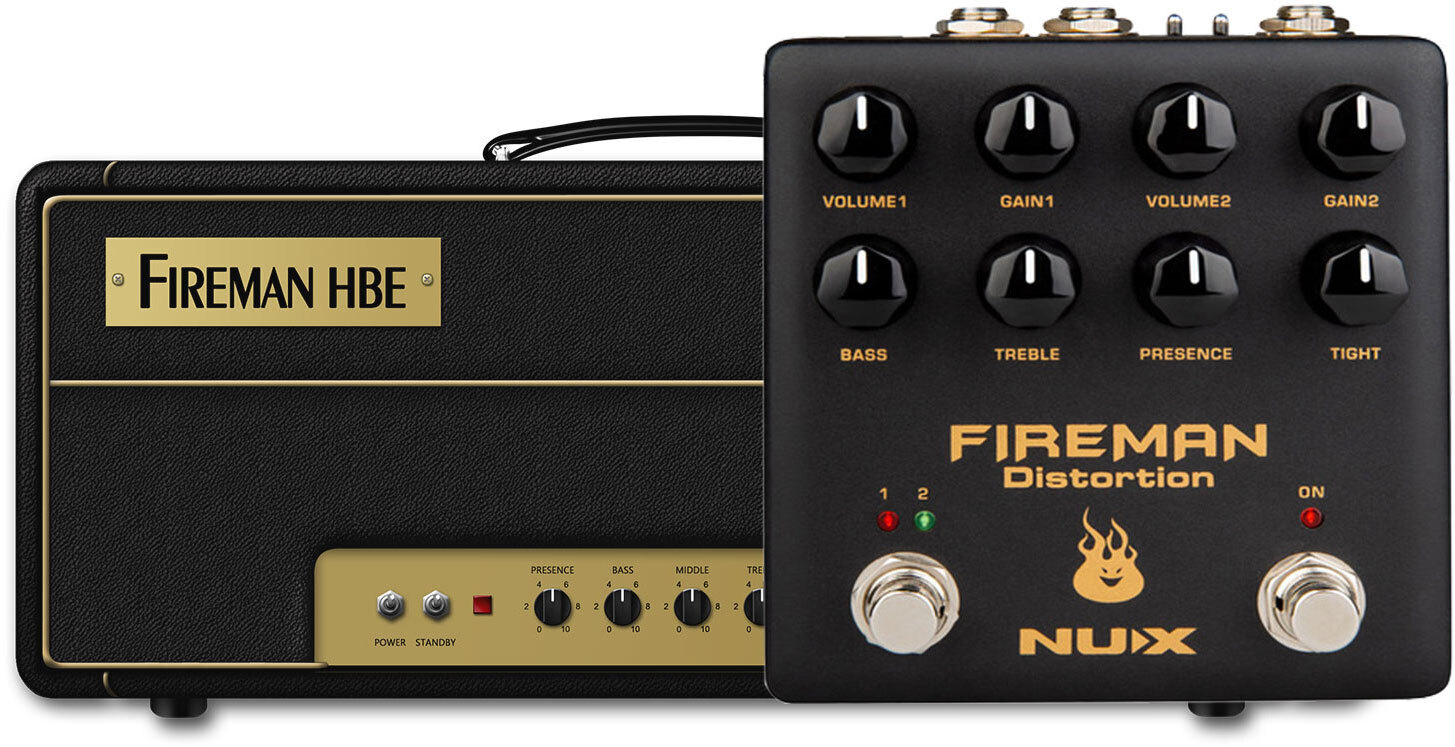

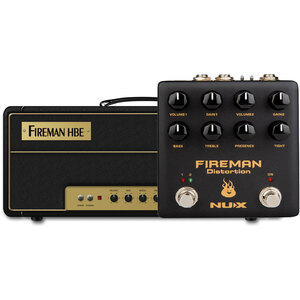

FIREMAN is based on the legendary amplifier builder's famous distortion pedal. It's a very amp-like distortion pedal with Modern Brown Sound. We designed it with 2 independent VOLUME, GAIN control knobs to fit rhythm and solo applications. FIREMAN offers a True-bypass / Buffer-bypass toggle switch, and a 9V/18V toggle switch. The 18V position doubles the working voltage inside to give you wider dynamic range.

Features:

• Modern Brown Sound in a box
• True-bypass / Buffer-bypass toggle switch
• 18V / 9V toggle switch to get different dynamic range
• 2 independent GAIN, VOLUME knobs for rhythm / solo application.

Specifications:

• Frequency Response: 20Hz~20kHz-±1dB
• Input Impedance: 2.2MΩ
• Output Impedance: 1MΩ
• Power Supply: 9V DC, Negative Tip (ACD-006A)
• Dimensions: 105mm (L)×115mm (W) x 58mm (H)
• Weight: 460g

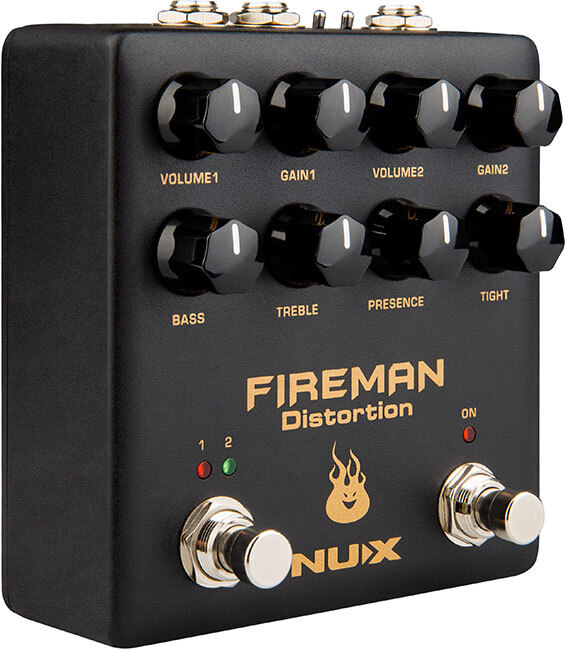

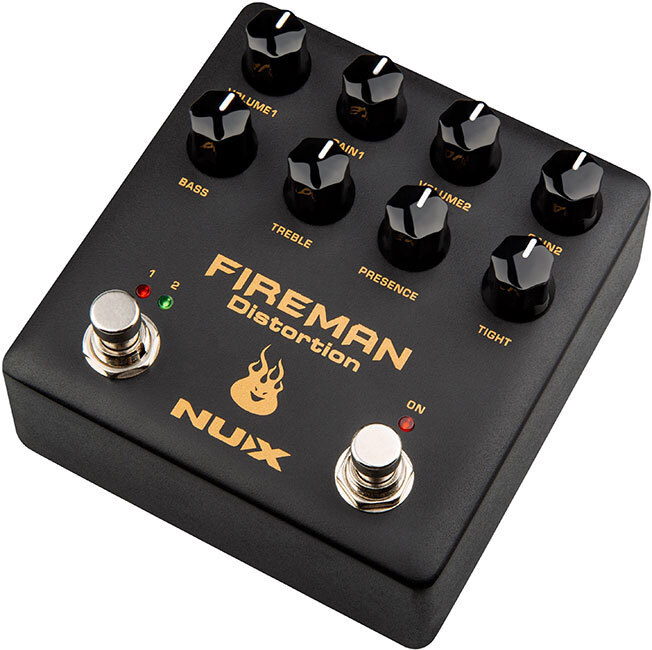

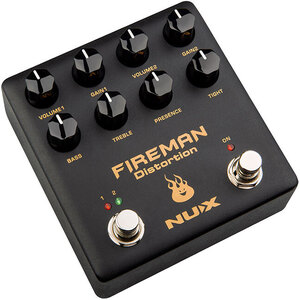

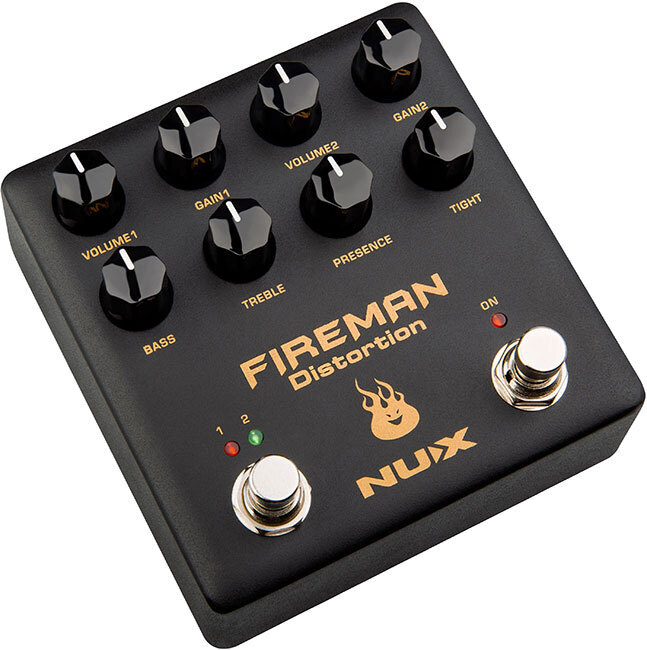

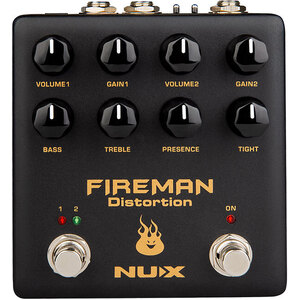

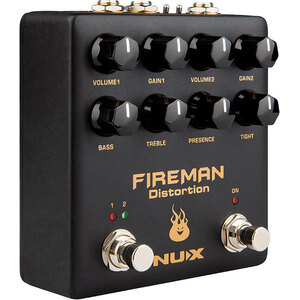

Control Panel:

• BASS: Adjusts the low-end response of distortion sound.
• TREBLE: Adjusts the high-end response of distortion sound.
• PRESENCE: Adjusts the ultra-high-end frequency of distortion sound.
• TIGHT: Shapes the low frequency content. (Turn it down to tighten the sound)
• VOLUME 1: Adjusts the output level while in Channel1.
• GAIN 1: Adjusts the distortion situation of the sound while in Channel1.
• VOLUME 2: Adjusts the output level while in Channel2.
• GAIN 2: Adjusts the distortion range of the sound while in Channel2.
• 1/2 Foot-switch: Chooses the current Channel for 1 or 2.
• ON Foot-switch: Engages or disengages the distortion sound

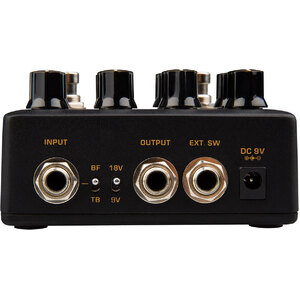

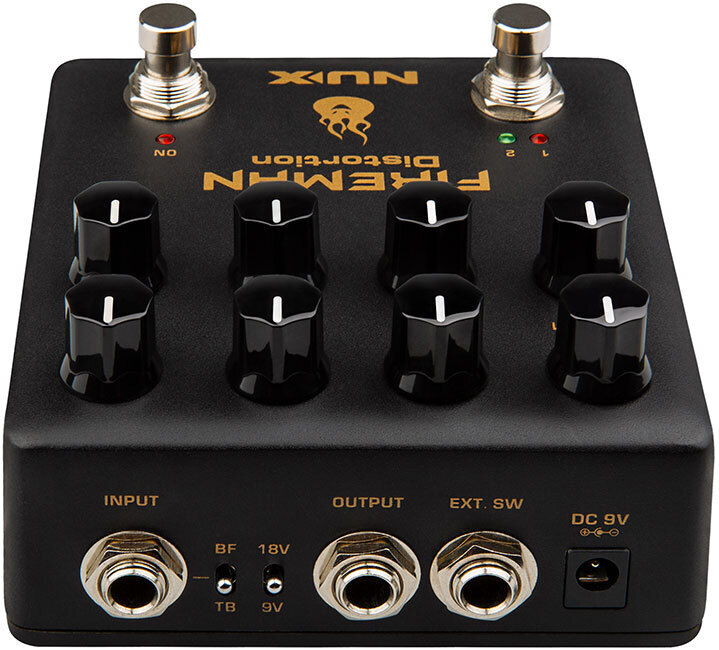

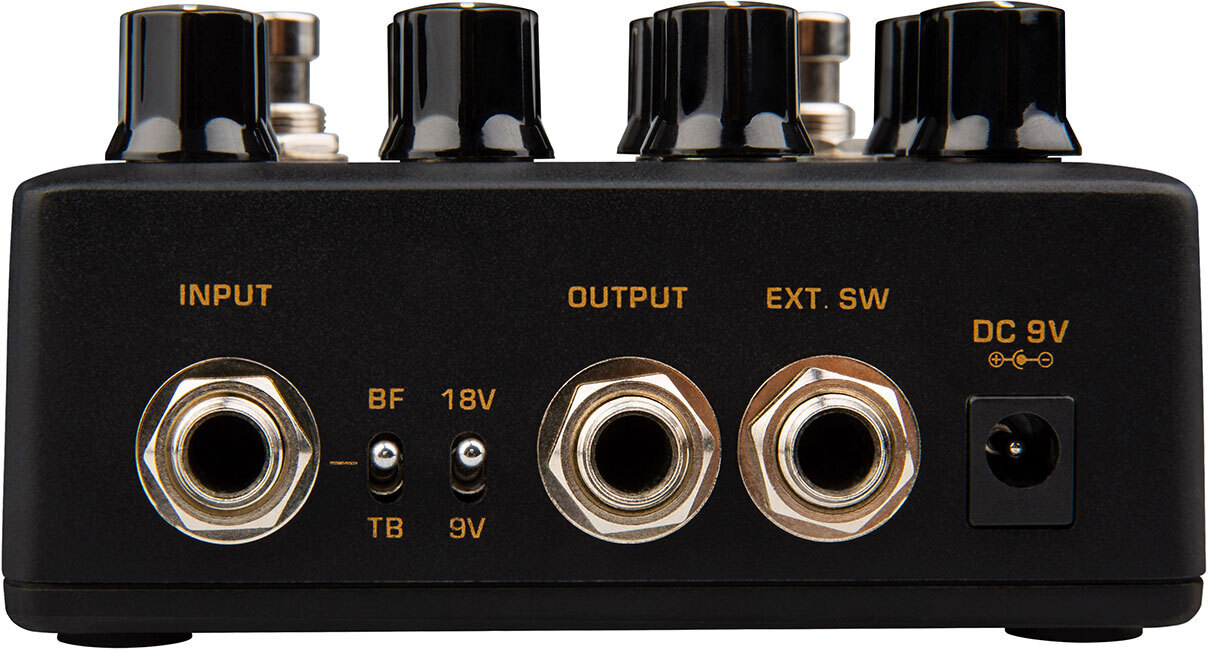

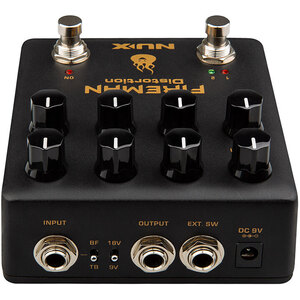

Input/Output:

• INPUT: Connects with your guitar or the signal from guitar side.
• OUTPUT: Connects with the amplifier or to the amp side.
• EXT. SW: Connects with TRS dual foot-switches to replace the 2 foot-switches function on the pedal.
• BF/TB Toggle Switch: BF means Buffer-bypass, TB means True-bypass.
• 18V / 9V Toggle Switch: The pedal uses 9V power, you can choose 18V position to double the working voltage inside to get wider dynamic range.
• DC Jack: Connects with 9V Negative Tip power with 100ma adaptor
