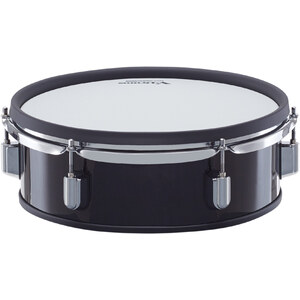

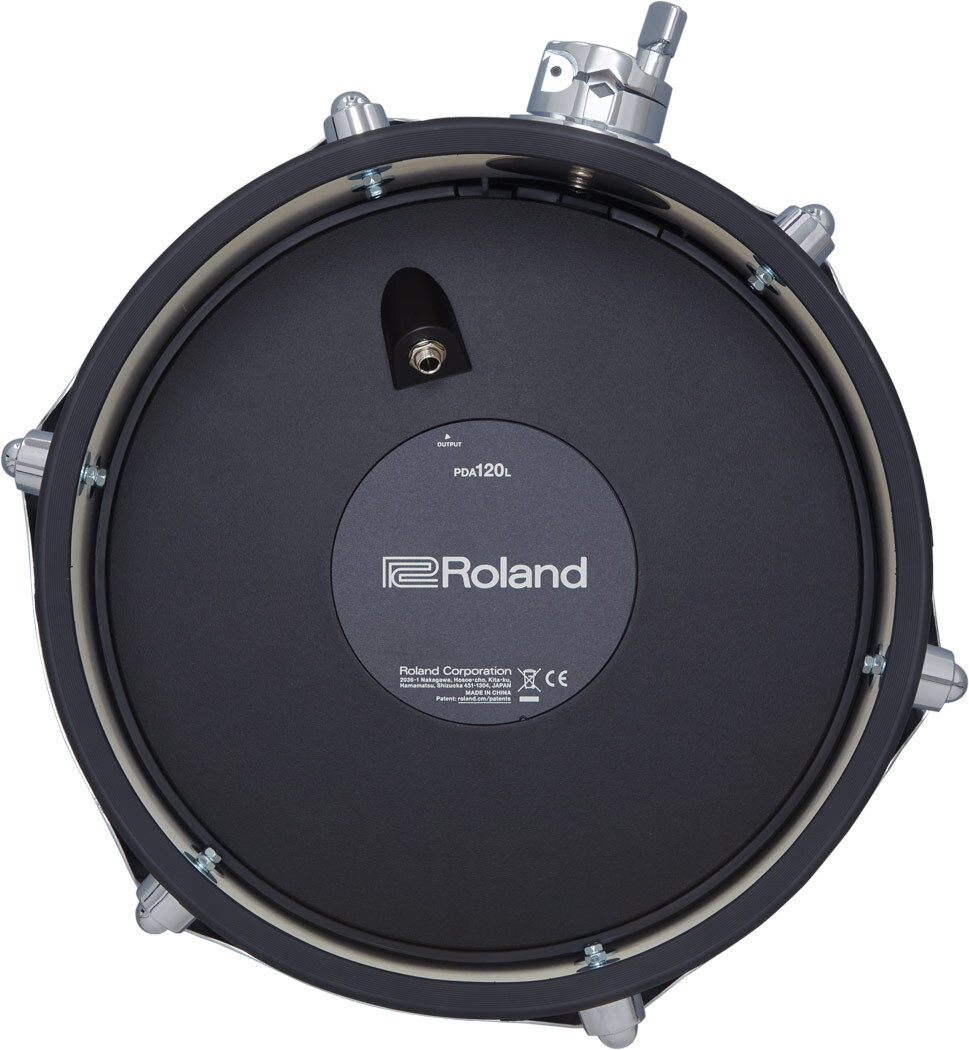

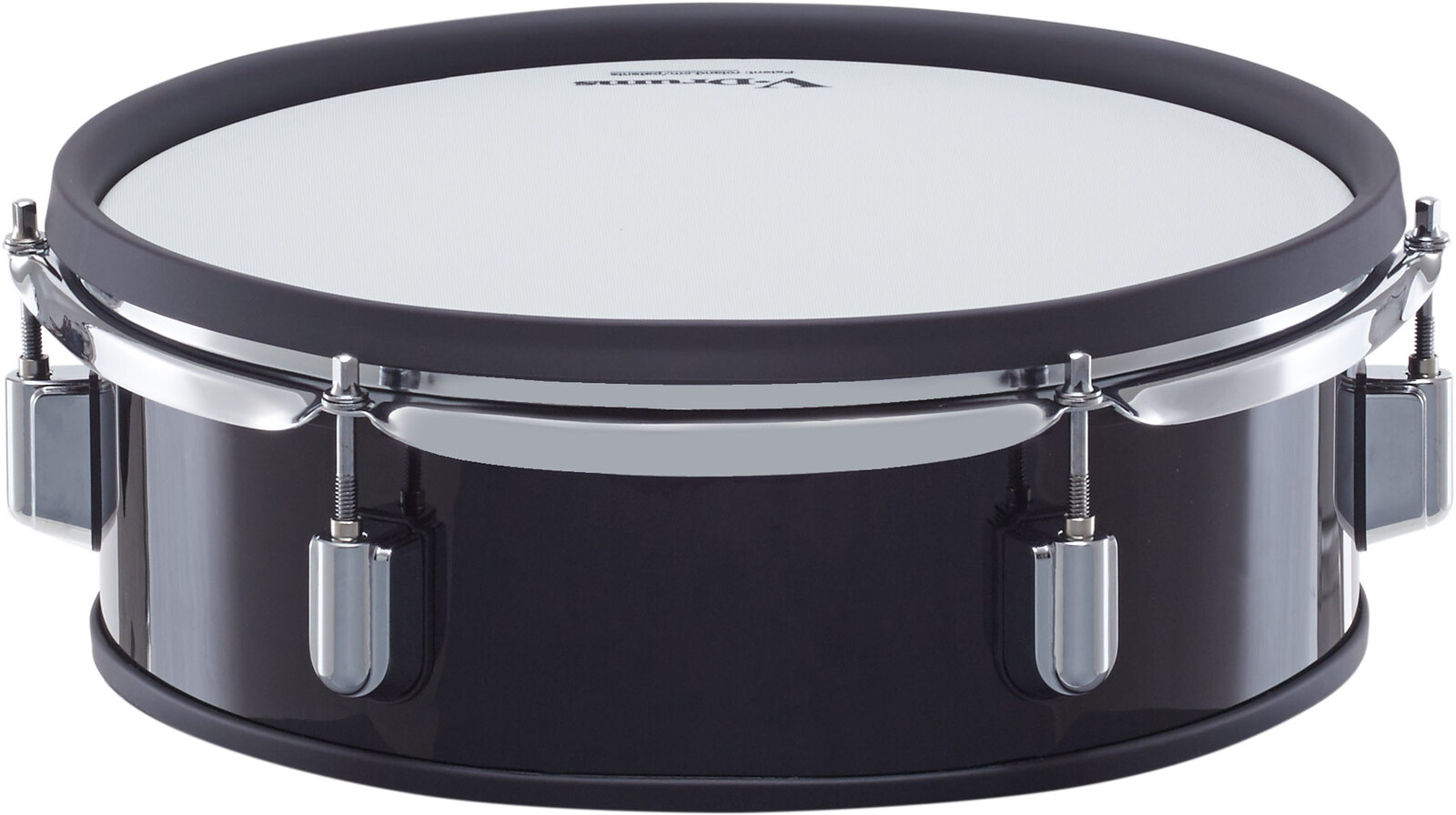

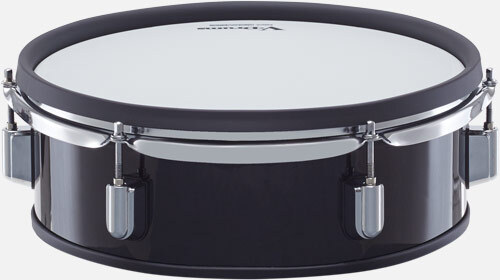

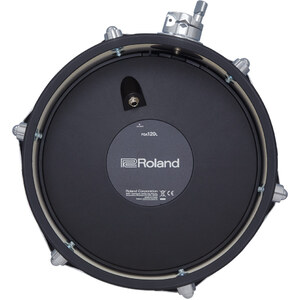

Roland PDA120LBK VAD3XX 12" Compact Tom

V-Drums Acoustic Design expands the V-Drums experience by blending the distinctive aesthetic of acoustic drums with Roland’s leading digital drum technology. Every component realizes the authentic crafted appearance of high-quality acoustic drums` with full-diameter wood shells` deluxe shell wraps` and heavy-duty chrome hardware designed by Roland.

Crafted with a shallow-depth wood shell` the 12” PDA120L-BK tom pad delivers V-Drums Acoustic Design looks and playability in a compact size. Dual zones provide independent head and rim triggering` while the newly developed sensor system eliminates hot spots for accurate and even response across the entire playing surface of the head.

​

• 12“ x 4“ dual-zone tom pad with wood shell construction
• Shallow shell design provides no-compromise performance in a compact size
• Legendary Roland double-ply mesh head with adjustable tension for customizing the rebound and feel
• Tom bracket included for mounting to standard acoustic tom holders
• Independent head and rim triggers
• Advanced sensor design eliminates hot spots for accurate playing expression and response
• Black wrap and custom chrome hardware

Specifications

Shell

12 (diameter) x 4 (depth) inches
Wood shell

Finish

Black (Wrap)

Head

2-ply mesh head

Triggers

2 (Head` Rim)

Connector

Output jack

Allowable diameter of mounting rod

9--13 mm (3/8?9/16 inches)

Usable pipe size

Not compatible

Dimensions

345 (W) x 380 (D) x 125 (H) mm
13-5/8 (W) x 15 (D) x 4-15/16 (H) inches

Weight

2.3 kg
5 lbs 2 oz

Accessories

Owner's Manual
Leaflet USING THE UNIT SAFELY
Connection cable
Drum key
