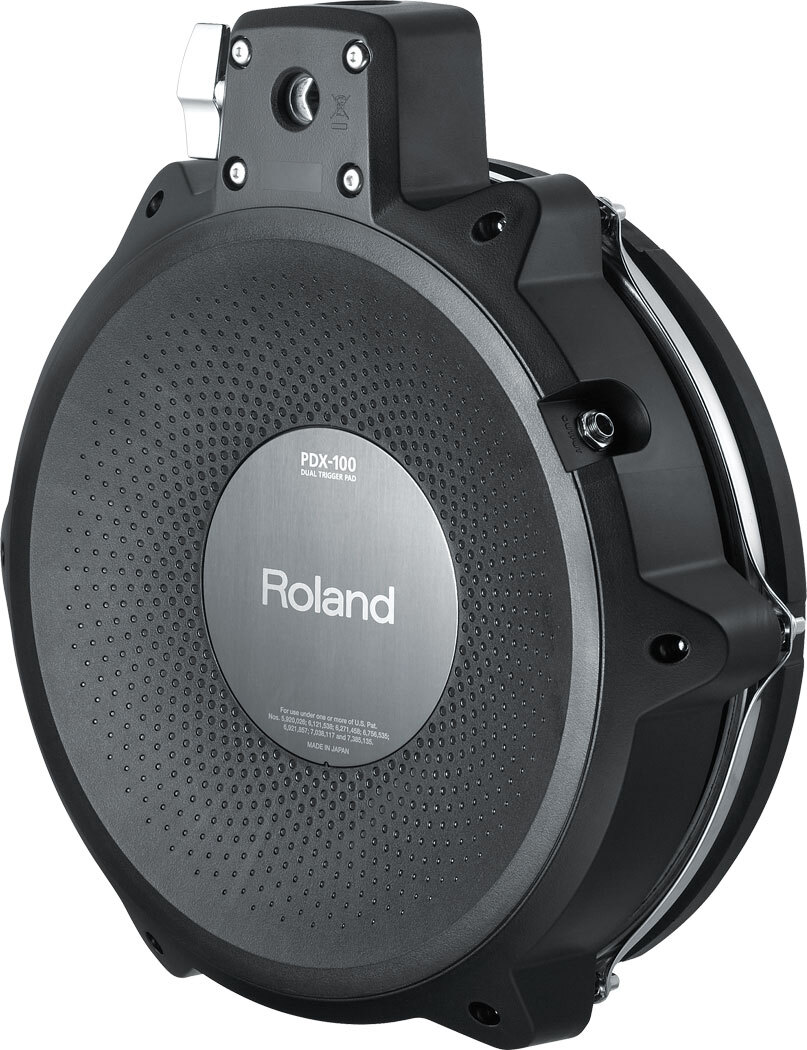

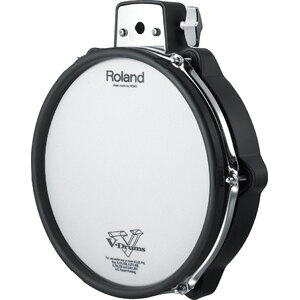

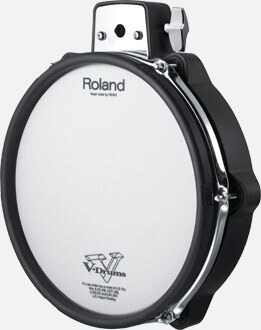

The PDX-100 is a lightweight 10 mesh head V-Pad for V-Drums. It has an advanced dual-trigger sensor` a metal rim hoop` a tensionable head` and a compact casing. For perfect positioning` the dual-mounting capability increases your setup versatility. The PDX-100 is ideal for use as snare and/or floor tom pads with the TD-30K` TD-25KV` TD-15KV` and other V-Drums.

Pad size

10 inches

Triggers

2 (Head` Rim)

Acceptable rod diameters

9.0 to 13.0 mm (3/8 to 9/16 inches)

Usable pipe size

22.2 mm (7/8 inches)

Accessories

Connection Cable
Drum Key
Owner’s Manual

Options (sold separately)

Pad Mount (MDH series)
Drum Stands (MDS series)

Size and Weight

Width (W)

310 mm
12-1/4 inches

Depth (D)

325 mm
12-13/16 inches

Height (H)

90 mm
3-9/16 inches

Weight

1.8 kg
4 lbs.

All specifications and appearances are subject to change.
