- Kit configuration (*1)
- Kick: KD-2
Hi-hat control pedal: Half-open stroke detectable
Tom: PDX-6A x 3 *2
Drum stand: Four-post type rack stand
- Drum kits
- 50 (Preset: over 20)
- Effect Types
- Pad Equalizer: each pad
Overhead Mic Simulator
Multi-Effects: 1 system, 30 types
- Coach functions (5 modes)
- Time check (easy)
Time check (hard)
- Tempo (20--260)
Rhythm type (5 types)
Sounds (15 types)
- Supported standards: Bluetooth Ver 4.2
Supported profile: A2DP (Audio), GATT (MIDI over Bluetooth Low Energy)
Codec: SBC (Support to the content protection of the SCMS-T method)
- 16 characters x 2 lines LCD (with backlight)

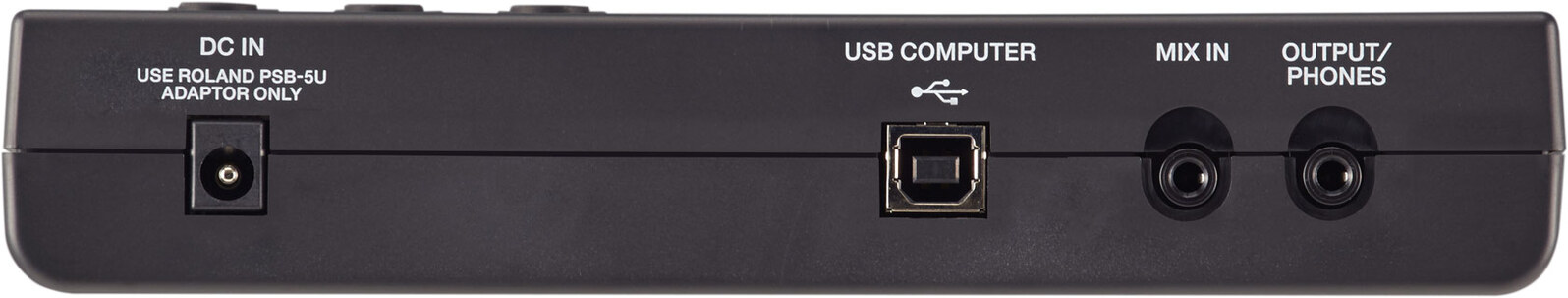

- OUTPUT/PHONES jack: Stereo miniature phone type
MIX IN jack: Stereo miniature phone type
USB COMPUTER port: USB B type
TRIGGER INPUT connector: DB-25 type (Kick, Snare, Tom 1, Tom 2, Tom 3, Hi-hat, Crash 1, Crash 2, Ride, Hi-hat control)
- USB COMPUTER
- Speed: Hi-speed USB
Driver mode: Generic, Vender
Protocol: USB MIDI, USB Audio *3
- USB Audio
- Sampling Rate (original): 44.1 kHz
Sampling Rate (with sampling rate converter): 96 kHz, 48 kHz
Record: 2 channels
Playback: 2 channels
- Power supply
- AC adaptor (DC 12 V)
- Current draw
- 250 mA
- Setup Guide
Leaflet "USING THE UNIT SAFELY"
Special connection cable
- Options (sold separately)
- Additional crash cymbal (Crash2): CY-5, MDY-Standard *4
Personal drum monitor: PM series
V-Drums accessory package: DAP-3X
V-Drums mat: TDM series
Noise eater: NE series
- SIZE & WEIGHT
- 1,200 (W) x 1,100 (D) x 1,200 (H) mm
47-1/4 (W) x 43-5/16 (D) x 47-1/4 (H) inches
(including sound module, kick pad, kick pedal and drum throne)
- 18.0 kg / 39 lbs 11 oz
- *1 Kick pedal and drum throne are not included.
- *2 Rim-shot is not supported.
- *3 In order to use USB audio, switch to vendor mode and use the vendor driver.
- *4 MDY-Standard is additionally required for mounting a CY-5 on the stand.

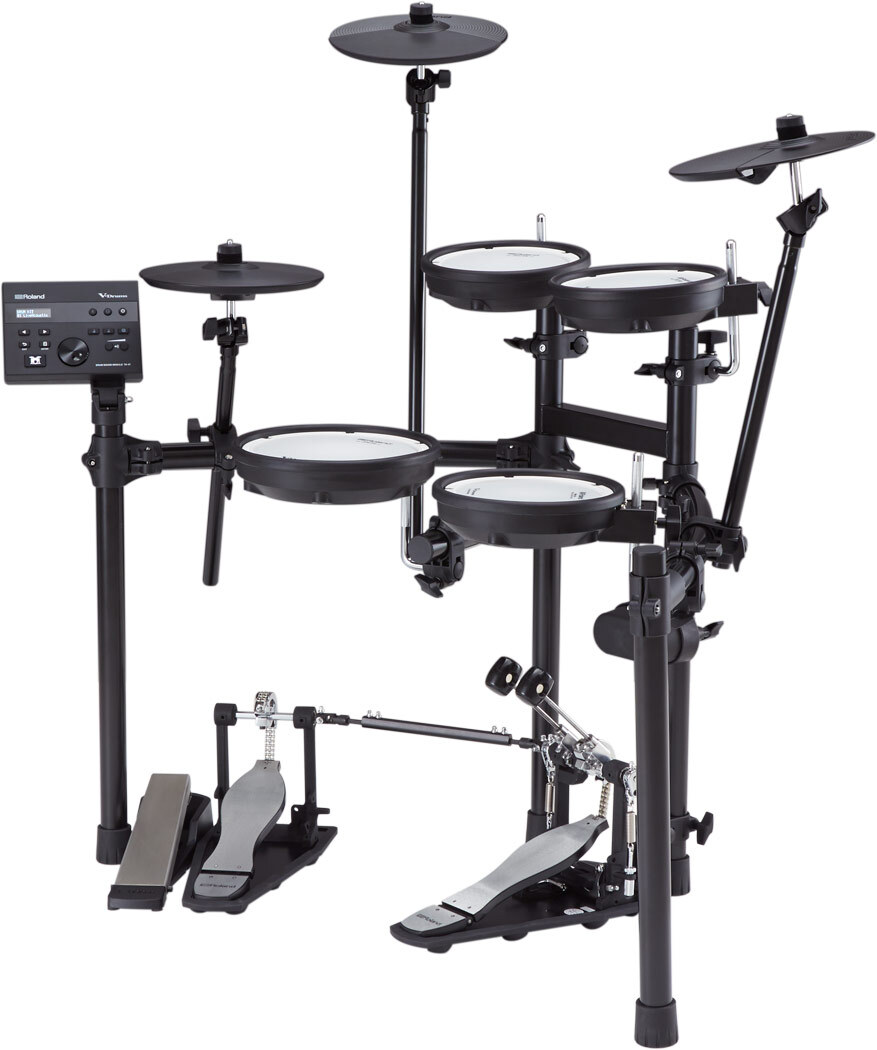

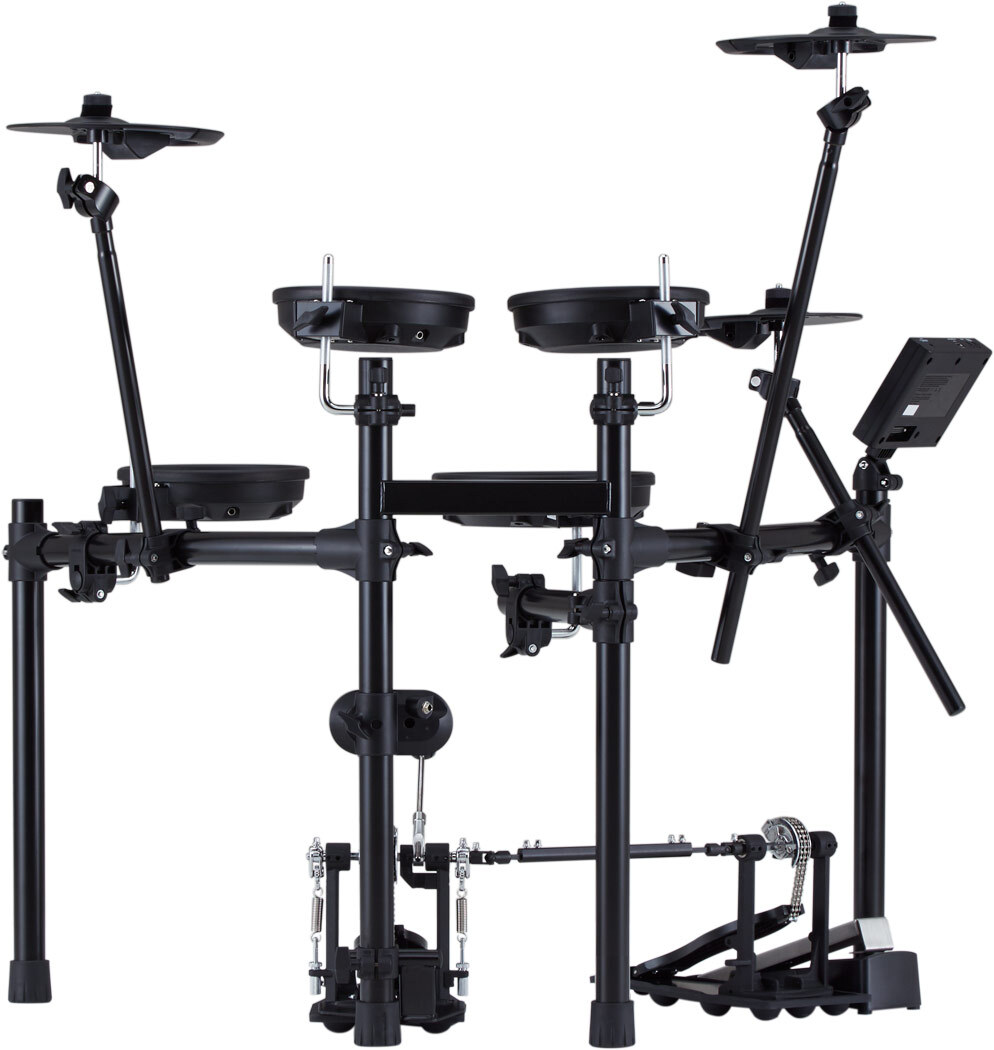

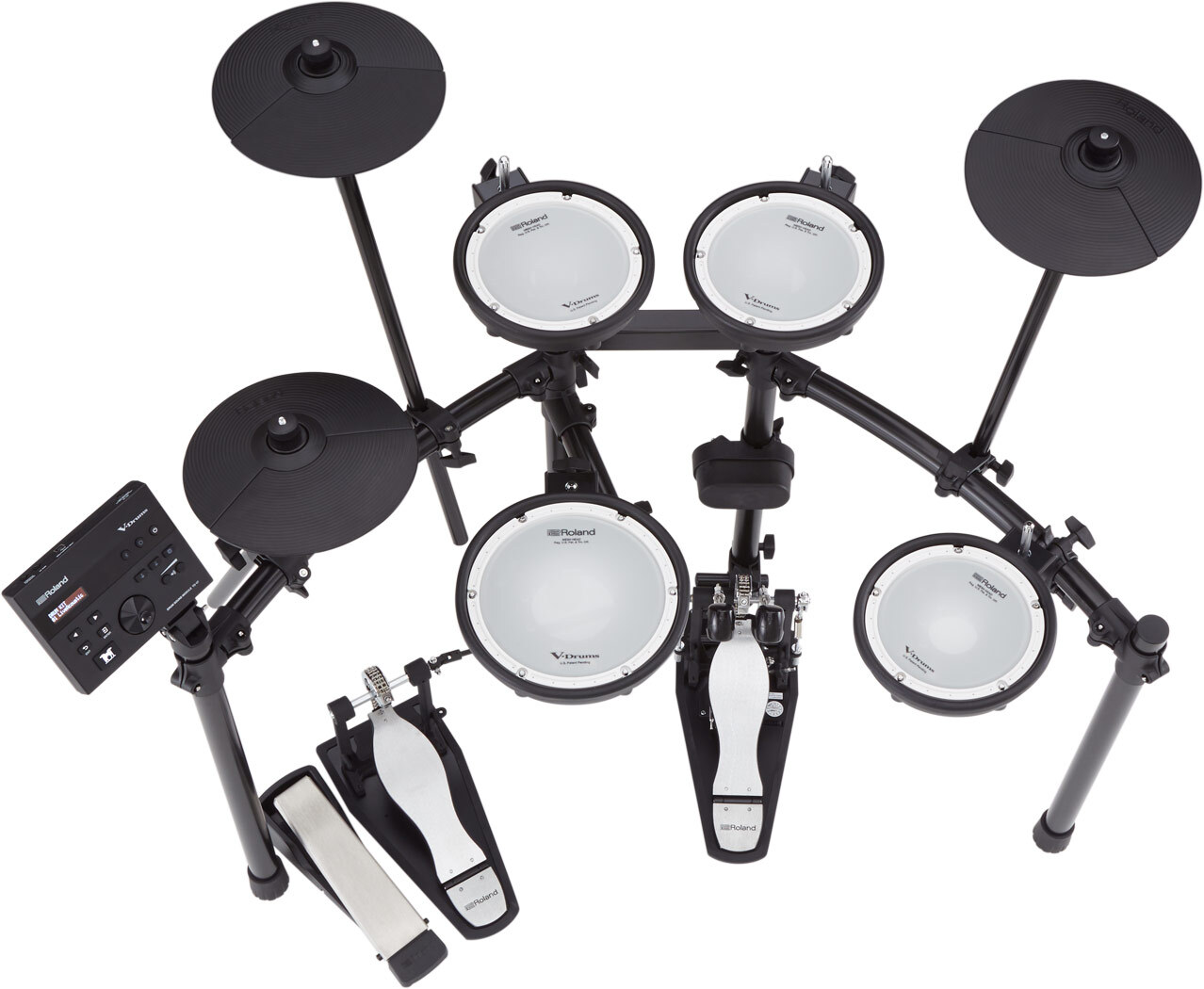

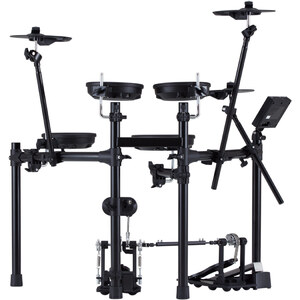

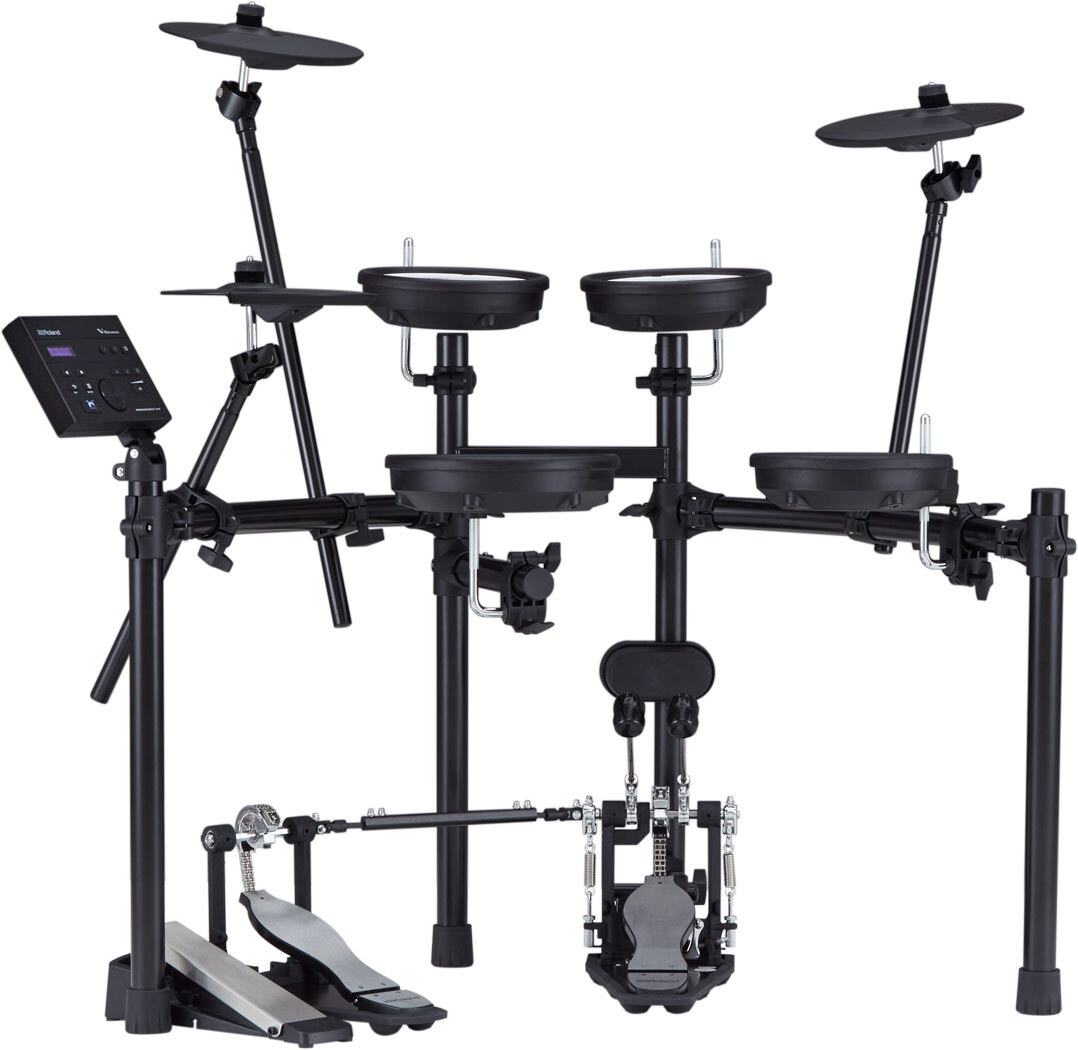

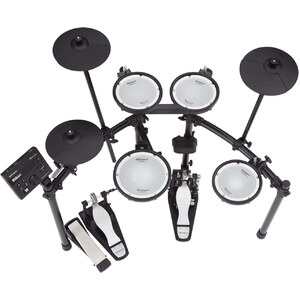

The Most Compact and Affordable Kit in the TD-07 Series

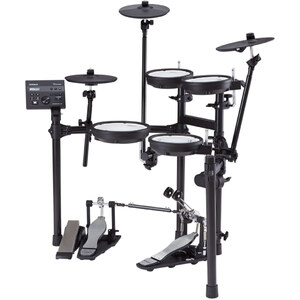

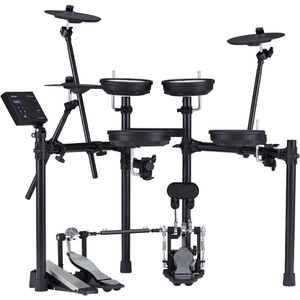

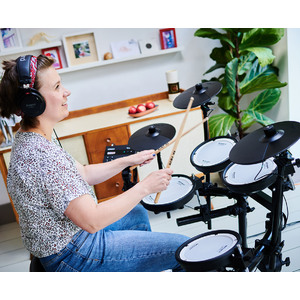

Compact and keenly priced—but with the professional tone, feel, and features to improve your drumming fast—the TD-07DMK is the entry point to the V-Drums TD-07 series. While the pads are smaller than the kits higher up the range, you’ll appreciate the satisfying feel from the PDX-8 snare and three PDX-6A toms, all featuring Roland’s ultra-quiet, double-ply mesh heads. The compact CY-5 crash and ride cymbals let you play with expression where space is tight, while a stand-mounted kick pad helps create the TD-07 range’s smallest footprint to make the perfect home kit.
Despite the compact size, you can still think big thanks to creative features that stretch beyond any acoustic kit. Call up authentic drum kits covering a range of styles and genres, and use deep tone editing tools to customize sounds just how you like. There’s also an onboard Coach mode to help you learn, Bluetooth® connectivity so you can play along with music streamed from your phone, tablet or computer, and USB to connect with computer-based recording software.

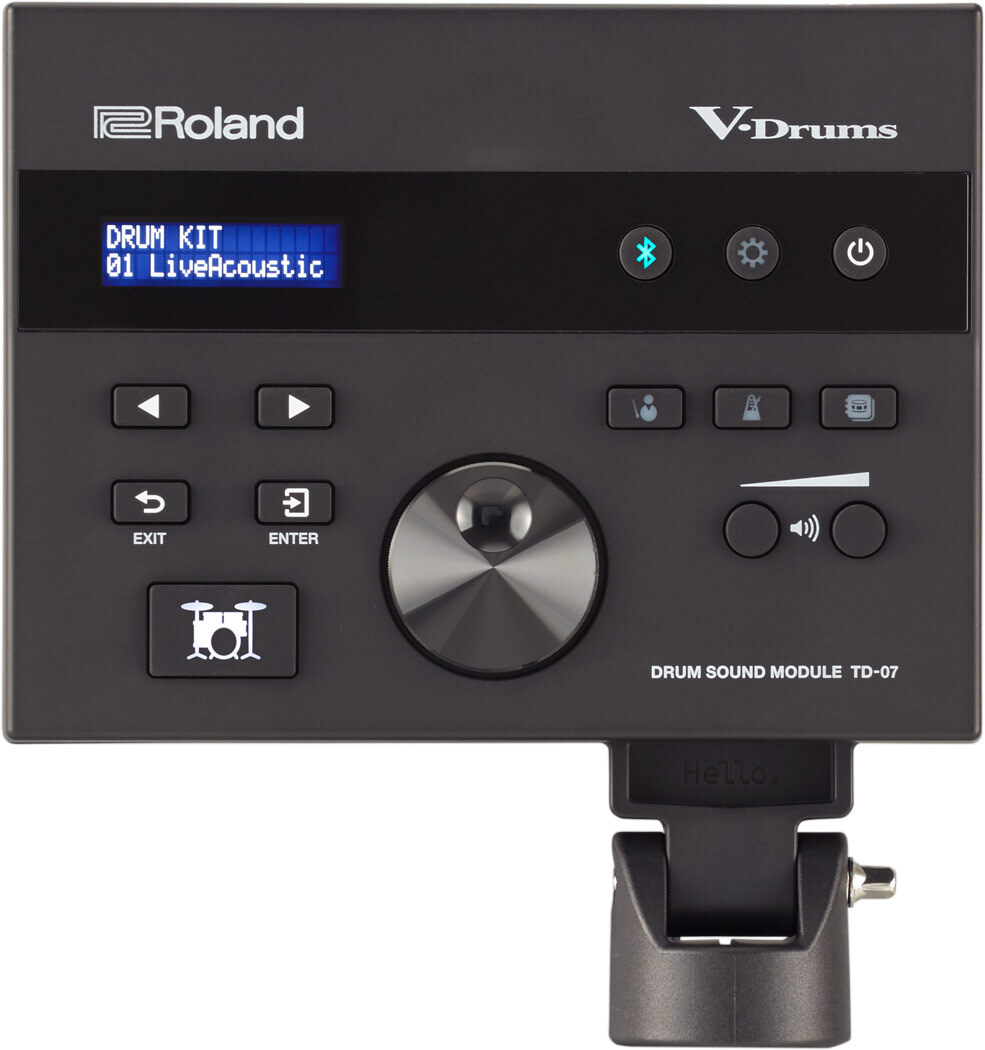

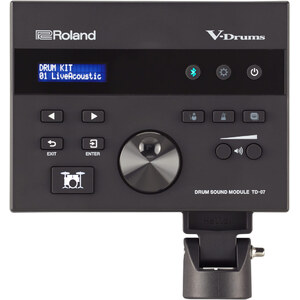

- TD-07 module with 25 preset kits, 25 user kits, and 143 instruments
- V-Edit, EQ, ambience, and 30 multi-effects offer deep editing tools to create your perfect drum kit sounds

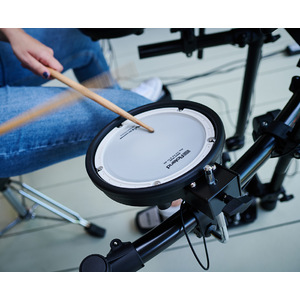

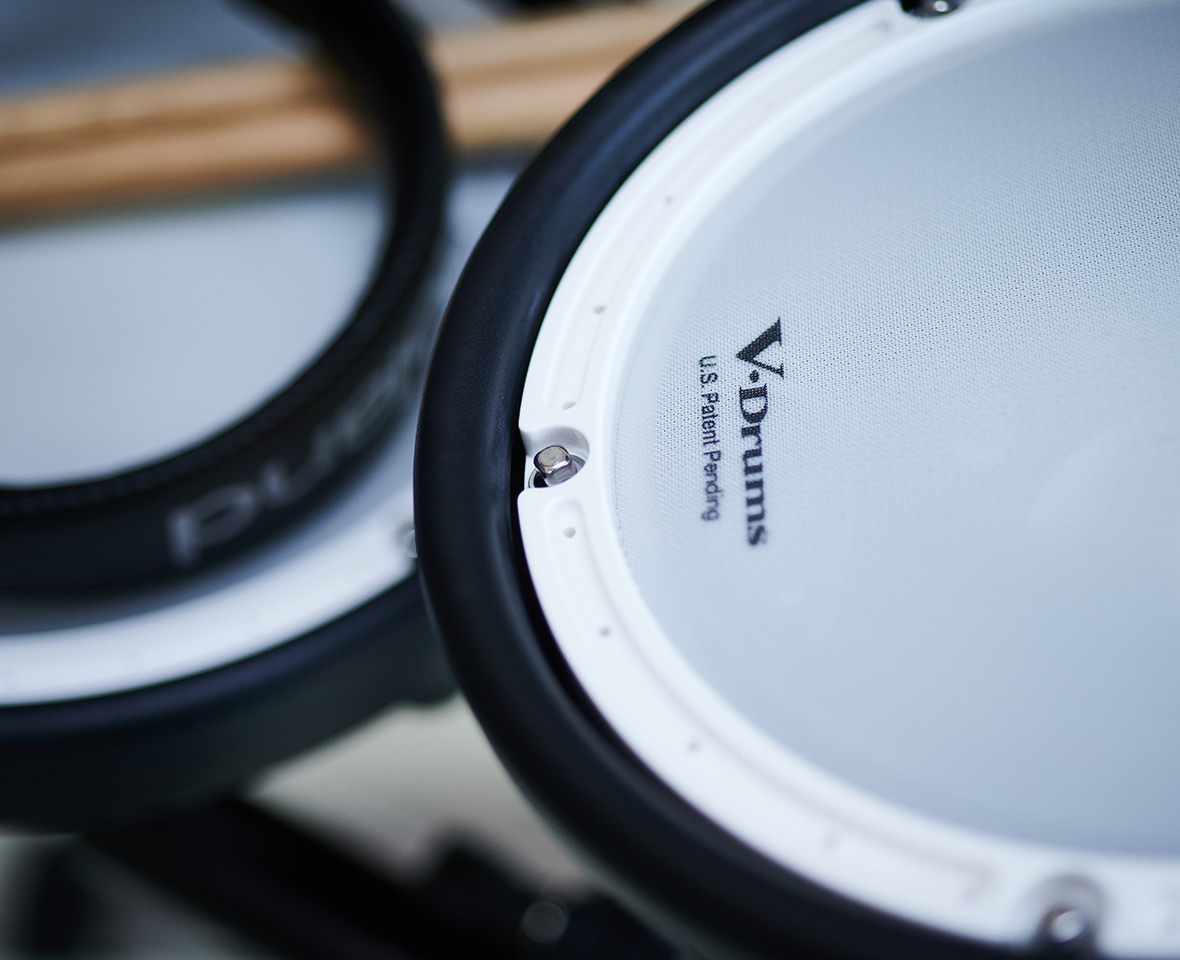

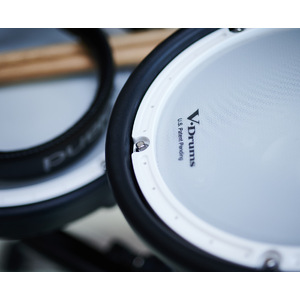

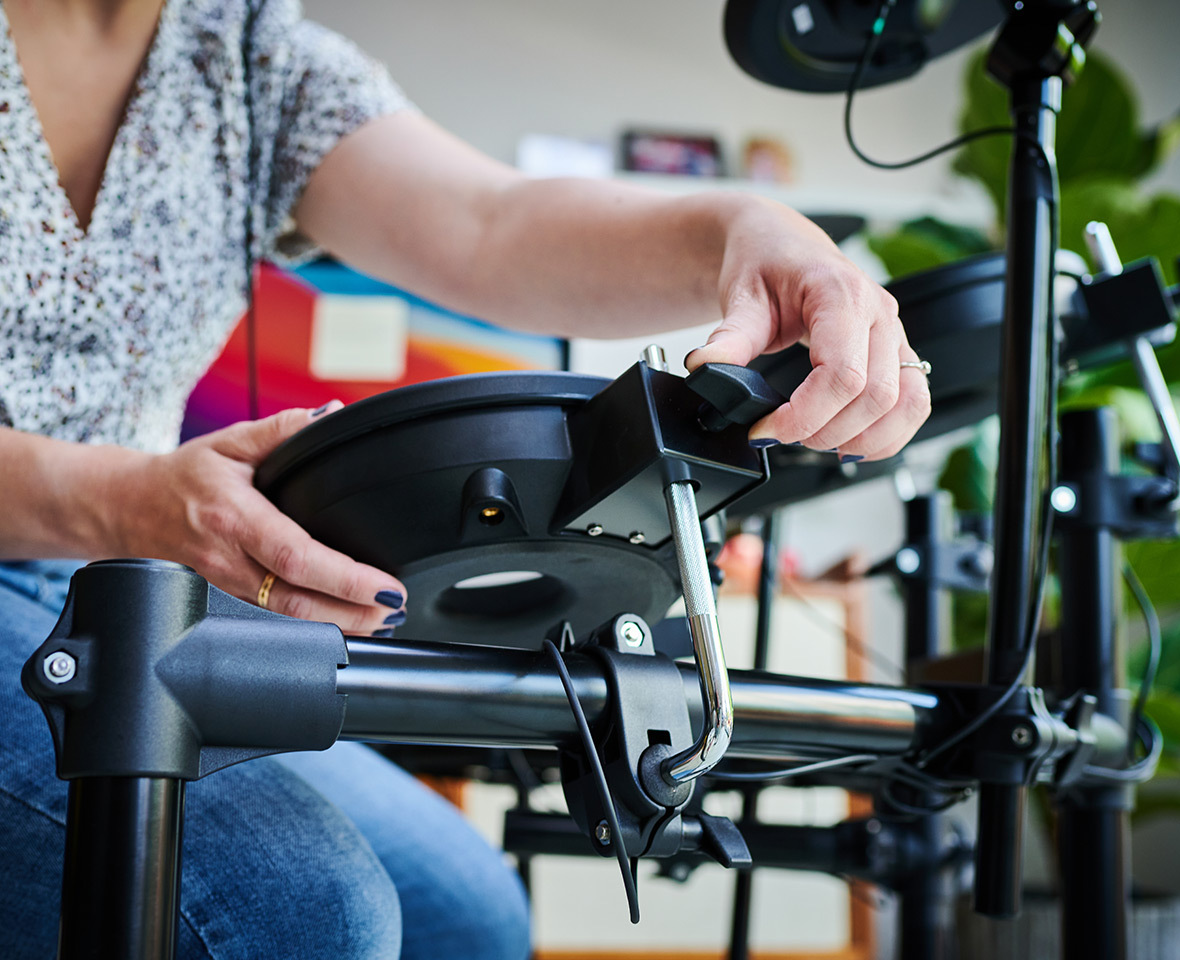

- Snare and tom pads with Roland’s legendary double-ply, tension-adjustable mesh drumheads

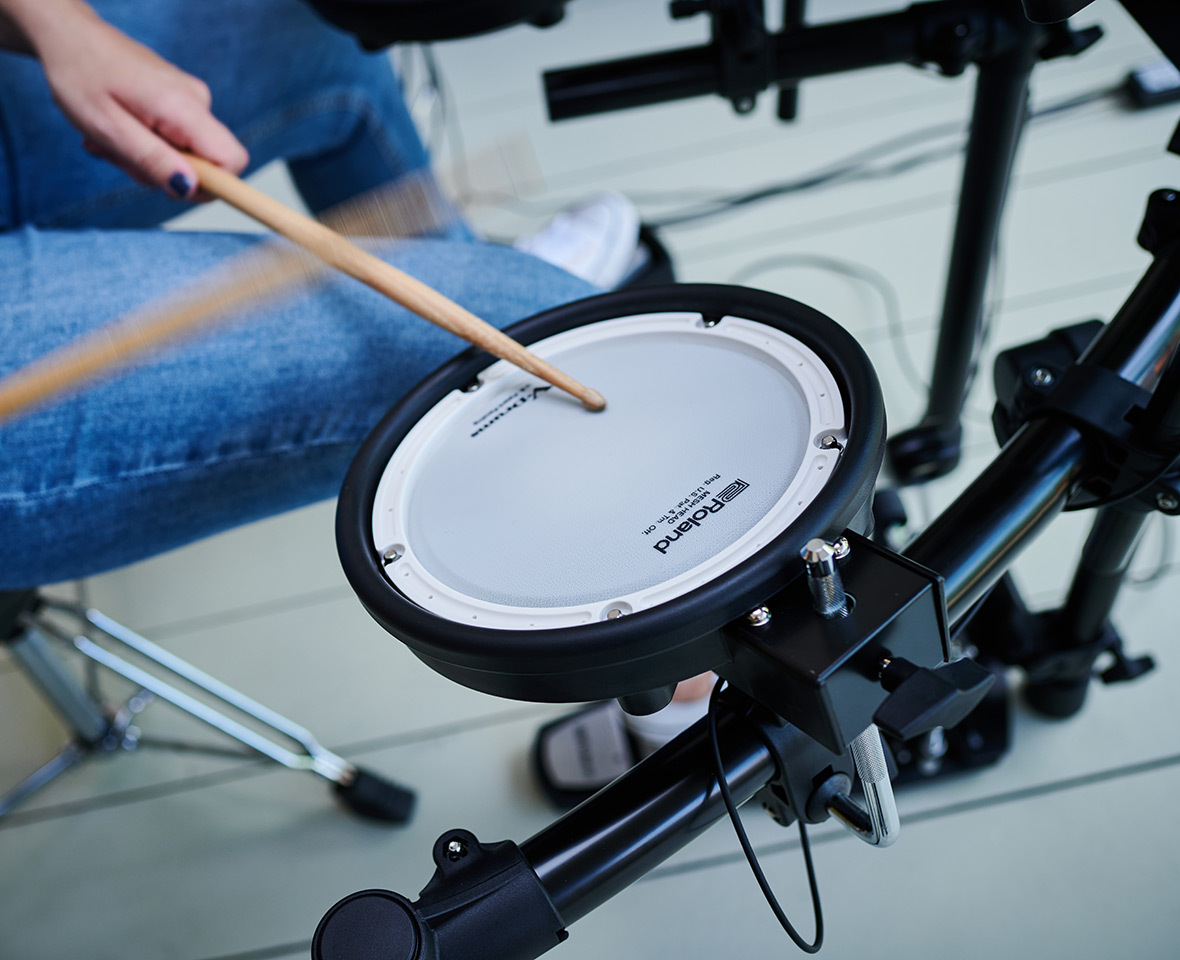

- One PDX-8 8-inch snare pad with independent head and rim zones for assigning different sounds and three PDX-6A 6.5-inch single-zone tom pads
- KD-2 kick pad attaches directly to the drum stand

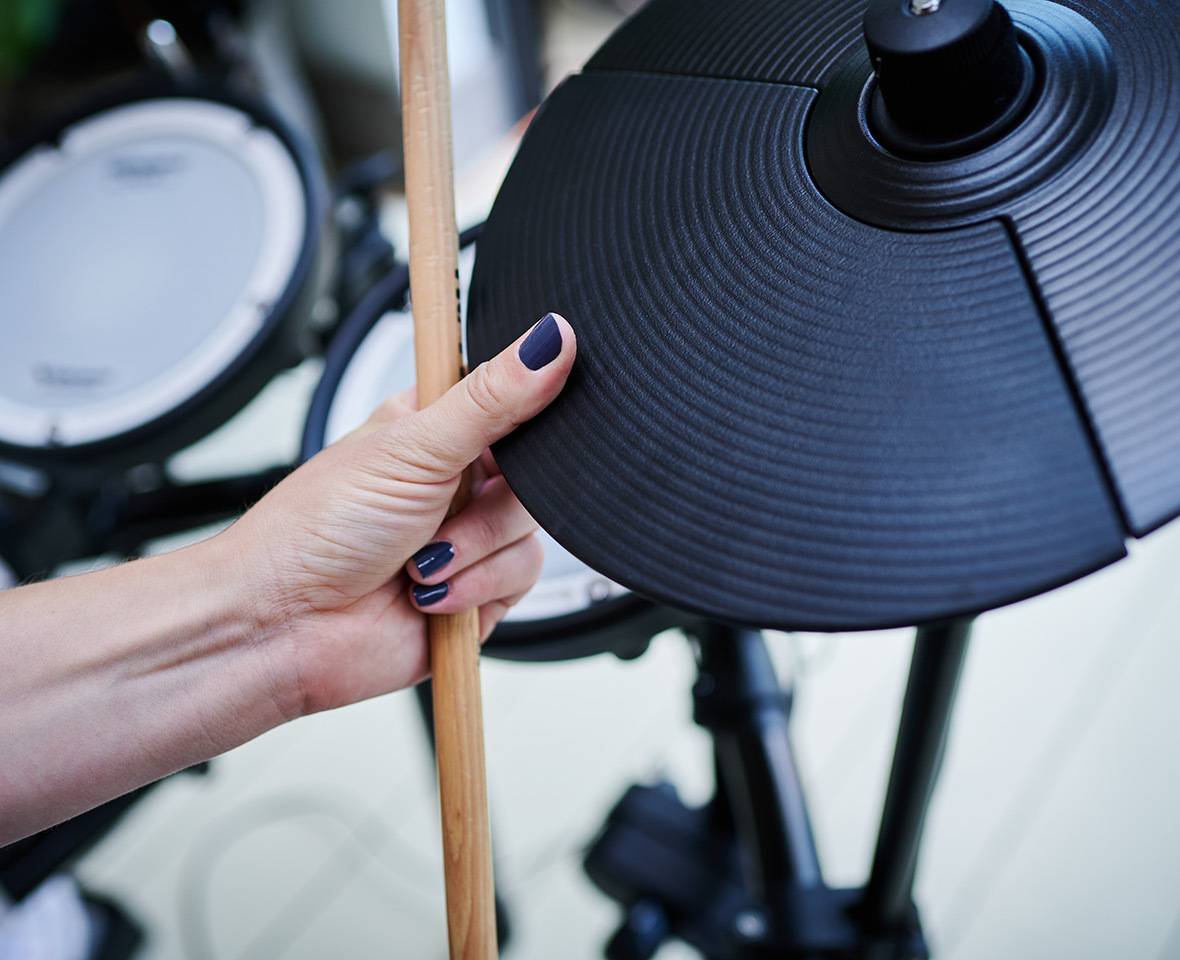

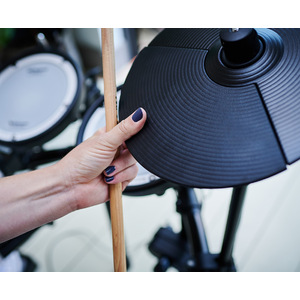

- CY-5 10-inch crash and ride cymbals with choke support
- CY-5 10-inch hi-hat cymbals and integrated foot pedal, with fine incremental control between open and closed positions

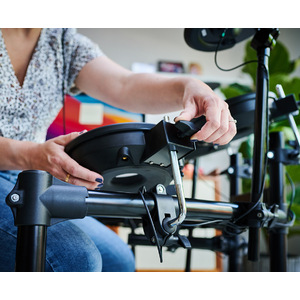

- Four-post drum rack stand with metal construction and sturdy clamps with strong grip
- Integrated Bluetooth lets you wirelessly stream sound from smartphones, tablets, and other Bluetooth devices and send MIDI data to music apps
- Advanced built-in metronome with the ability to adjust time signature, note value, and click tone
- Onboard Coach function provides interactive tools to build timing skills and track progress
- USB for recording audio and MIDI data to computer music software
- Support for kit expansion with a second crash cymbal (CY-8 V-Cymbal and MDY-Standard cymbal arm sold separately)
