Roland TD-27 V-Drums Sound Module

Flagship-Class Sound, Maximum Expression

SKU: TD27

Stock Availability:

In Store
Arties Aspley store

Out of Stock
Online
Ships from suppliers warehouse

In Stock

Have a Question

Newly updated and enhanced, the TD-27 V-Drums sound module is loaded with the finest acoustic drum sounds you’ve ever heard. Roland’s Prismatic Sound Modeling produces drums that not only sound exceptional, but also respond just like real acoustic instruments when you play them. Advanced digital trigger inputs support Roland digital pads for unmatched expression, while PureAcoustic Ambience Technology offers a variety of inspiring drumming spaces at the touch of a button. A wide selection of electronic sounds from Roland’s rich sonic history are also included, providing must-have sounds for modern styles. And by loading and layering your own samples with internal drums, you’re able to craft sounds that no other drummer can claim.

Updated sound module with enhanced features and advanced Prismatic Sound Modeling derived from the flagship TD-50X
75 ready-to-play preset kits, including 10 all-new kits and a variety of new samples
Three digital trigger inputs for advanced Roland trigger pads like the 14-inch PD-140DS digital snare, 14-inch VH-14D digital hi-hat, and 18-inch CY-18DR digital ride cymbal
Updated module interface for even faster sound selection and drum customization
Drum in a variety of hyper-realistic sound spaces with PureAcoustic Ambience technology
Enhanced layer and transient functions plus support for parallel compression
Overhead mic simulator and studio-level effects for processing drum sounds
Import your own WAV samples via an SD card
Stereo mix output and two assignable outputs for sending individual drum sounds to a PA mixer
Integrated 28-channel USB audio interface for professional computer music production
Multi-pin trigger jack and included cable for connecting with a standard V-Drums pad setup
Dedicated Crash 2 trigger input and three auxiliary trigger inputs for easy kit expansion
Onboard Bluetooth® for drumming with music from a smartphone or laptop
Built-in practice functions for developing drumming skills

Specifications
Drum kits: 100 (Preset: 55)
Instruments: 728
User Sample Import: Number of User Sample: Maximum 500 (includes factory preloaded user samples)
Sound Length (total): 24 minutes in mono, 12 minutes in stereo
File formats that can be loaded: WAV (44.1 kHz, 16/24 bits)
Effect Types: Pad Compressor: each pad
Pad Equalizer: each pad
Overhead Mic Simulator
Room/Reverb
Multi-Effects: 3 systems, 30 types
Master Compressor
Master Equalizer
Bluetooth: Supported standards: Bluetooth Ver 4.2
Supported profile: A2DP (Audio), GATT (MIDI over Bluetooth Low Energy)
Codec: SBC (Support to the content protection of the SCMS-T method)
Song Player (SD Card): File format: WAV (44.1 kHz, 16/24 bits), MP3 *1
Recorder: Recording Method: Realtime
Maximum length: 60 min (temporary recording: 3 min) *2
File format: WAV (44.1 kHz, 16 bits)
Display: Graphic LCD 256 x 80 dots
External Memory: SD Card (SDHC supported)

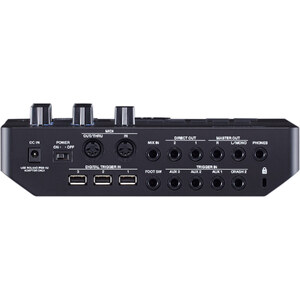

Connectors: TRIGGER INPUT connector x 1: DB-25 type (Kick, Snare, Tom1, Tom2, Tom3, Hi-hat, Crash1, Ride, Ride Bell, Hi-Hat Control) *3
TRIGGER IN jack x 4: 1/4-inch TRS phone type (CRASH 2, AUX1, AUX2, AUX3) *3
DIGITAL TRIGGER IN port x 3: USB A type
MASTER OUT jacks (L/MONO, R): 1/4-inch phone type
DIRECT OUT jack x 2 (MONO): 1/4-inch phone type
PHONES jack x 1: Stereo 1/4-inch phone type
MIX IN jack x 1: Stereo 1/4-inch phone type
MIDI (IN, OUT/THRU) connectors
USB COMPUTER port x 1: USB B type
FOOT SW jack x 1: 1/4-inch TRS phone type
DC IN jack
USB COMPUTER: Speed: Hi-speed USB
Driver mode: Generic, Vender
Protocol: USB MIDI, USB Audio *4
USB Audio: Sampling Rate (original): 44.1 kHz
Sampling Rate (with sampling rate converter): 96 kHz, 48 kHz
Record: 28 channels
Playback: 4 channels
Power Supply: AC adaptor (DC 9 V)
Current Draw: 770 mA
Other
Accessories: Quick Start
AC adaptor
Special connection cable
Leaflet "USING THE UNIT SAFELY"
Sound module mounting plate
Wing bolt (M5 x 10) x 2
Options (sold separately): Pads: PD series, PDX series, BT series
Cymbals: CY series
Kick: KD series, KT series
Hi-hat: VH-13, VH-11, VH-10
Hi-hat control pedal: FD series
Acoustic drum trigger: RT series
Footswitch: BOSS FS-5U, FS-6
Personal drum monitor: PM series
Noise eater: NE series
Size and Weight
Dimensions: 238 (W) x 204 (D) x 79 (H) mm
9-3/8 (W) x 8-1/16 (D) x 3-1/8 (H) inches
Weight (excluding AC adaptor): 1.1 kg
2 lbs 7 oz
*1 Audio files must be saved on an SD card.
*2 Song recording is required SD card. The case of no inserted is capable to record the temporary recording approximately 3 minutes.
*3 Exclusion use with digital pad.
*4 USB Audio is required the using vender driver and switched vender mode.

SKU	TD27
Barcode #	4957054514914
Brand	Roland

TD-27 Version 2.0: More Sounds, More Power

The TD-27 module gets even better with the Version 2.0 update. Explore 75 preset kits, including 10 all-new kits and newly enhanced versions of the three most popular kits from the original release. New pre-loaded samples are also available for combining with preset kits or your own custom setups. Layering features have been expanded, while parallel compression options and transient shaping enhancements provide even greater sound control. The module interface has also been improved for even faster sound selection and drum customization.

Later in 2022, current TD-27 module owners will be able to download the Version 2.0 update for free on Roland Cloud.

Feel the Sound of Prismatic

Roland’s Prismatic Sound Modeling brings you an electronic drumming experience like no other. We start with carefully curated samples of real drums and percussion, recorded by top players in leading studios. Next, we bring these static samples to life with advanced modeling that recreates the acoustic behavior between each sample for a smooth, true-to-life drumming experience.

Seek Your Signature Drum Sound

With acoustic drums, you personalize the sound by swapping heads, adjusting the tuning, applying damping, changing out kick beaters, and more. You can do the same with the TD-27 module and its hands-on controls and intuitive editing tools. And with the module’s enhanced layering features, it’s even easier to create fat, hybrid sounds. Edits are saved automatically as you go, so you can always stay focused on playing.

Import Samples to Perfect Your Performance

Some performances need specific sounds. With the TD-27 module, you can import and trigger original single-shot drum hits or introduce audio loops, sequences, and more. Going further, imported samples can be mixed and layered with internal sounds to build any kit you can imagine.

Digital Trigger Technology

The TD-27 module features three digital trigger inputs for advanced Roland digital pads like the PD-140DS snare, VH-14D hi-hat, and CY-18DR ride to deliver the most natural expression of your drumming. Multiple sensors and lightning-fast module processing work together for unparalleled response, enabling you to play genuine techniques in the most natural way, with every nuance precisely detected and perfectly translated.

Analog Trigger Support

In addition to its three digital trigger inputs, the TD-27 module features a multi-pin analog trigger jack for fast and easy connection with any standard V-Drums pad arrangement via an included cable. There’s also a dedicated analog trigger input for a second crash cymbal pad, plus three auxiliary trigger inputs for customizing your setup by adding any Roland trigger pad.

Advanced Sound Processing Options

Use PureAcoustic Ambience technology to create an incredibly natural and immersive sound field when playing. And go deeper by adjusting individual drums mics and the stereo overheads, just as you would with an acoustic kit. Advanced onboard multi-effects and mixing capabilities give you the power of a full-scale studio console, with transient processing, parametric EQs, compressors, reverbs, delays, and more at your command.

Connectivity for Stage and Studio

The TD-27 is a powerful command center for any electronic drumming setup, with ample connectivity options for both stage and studio use. There are stereo outputs for the overall drum sound, plus two direct outputs for sending kick, snare, and other sounds to an audio console for independent mixing. The built-in USB audio interface makes computer music production simple, with up to 28 discrete audio channels available over a single cable. MIDI is also supported via USB and dedicated I/O, allowing you to sync with other MIDI devices and trigger sounds in computer software.

Bluetooth Audio Streaming

Built-in Bluetooth lets you wirelessly stream audio from a phone or laptop to the module—ideal for jamming with headphones. Play along with backing tracks and your favorite bands, or mix the sound from a YouTube lesson video with the kit. You can even record your performances—with or without backing—to hear where you need to tighten things up.

Your Personal Onboard Drum Coach

Coach mode supports your daily practice sessions, complete with progress tracking that makes learning effective and rewarding. Play through warm-ups, develop your sense of groove, tempo, and timing, and even work on your stamina—all with a score that highlights your progress and motivates you to improve.

Fast-Track Your Progress with Melodics for V-Drums

Melodics™ for V-Drums—a free application for macOS and Windows—features a curated set of drum lessons to develop your sense of rhythm, timing, and muscle memory. Subscribers can access additional premium content that includes over 70 lessons, with more added each week.
