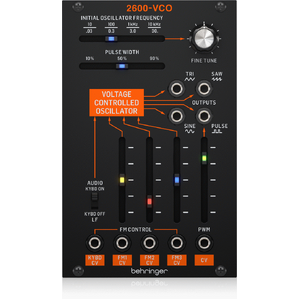

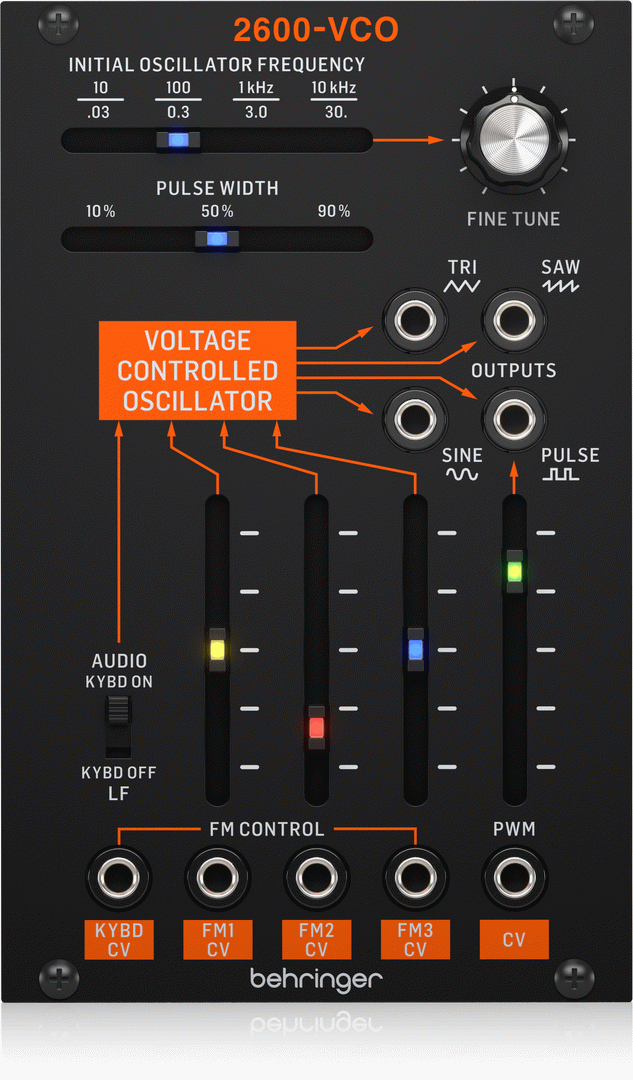

Legendary Analog VCO Module for Eurorack

The 2600-VCO is a feature rich module with four simultaneous waveforms: sine, triangle, saw and pulse which allow for an awe-inspiring palette of tonal possibilities. You can even control the oscillators frequency which ranges from 10 Hz to 10 kHz and from 0.03 Hz to 30 Hz when the 2600-VCO is switched to LF mode. The VCO can also be tuned to other instruments or VCOs with the Fine Tune knob. Adjust the pulse width range anywhere from 10% to 90% and you’ll be ready to rock whether you’re in a band or integrating the 2600-VCO into your monstrous setup!

• Amazing sounding VCO module from the ’70s
• Authentic reproduction of original ARP* 2600 circuitry
• VCO features 4 simultaneous waveforms: sine, triangle, saw and pulse
• VCO offers wide frequency control from 10 Hz to 10 kHz or 0.03 Hz to 30 Hz in LF mode
• PWM can be simultaneously controlled manually and via external CV input
• Switchable between LF (keyboard off) and Audio (keyboard on)
• Separate outputs for each waveform and 5 CV inputs for pitch control and PWM
• 8 controls and switches give you real-time access to all important parameters
• Eurorack specs: 16 HP, XX mA +12 V, XX mA -12 V
