Smart Acoustic SWM260BP BP System V1 (655-679)
SKU: 358162

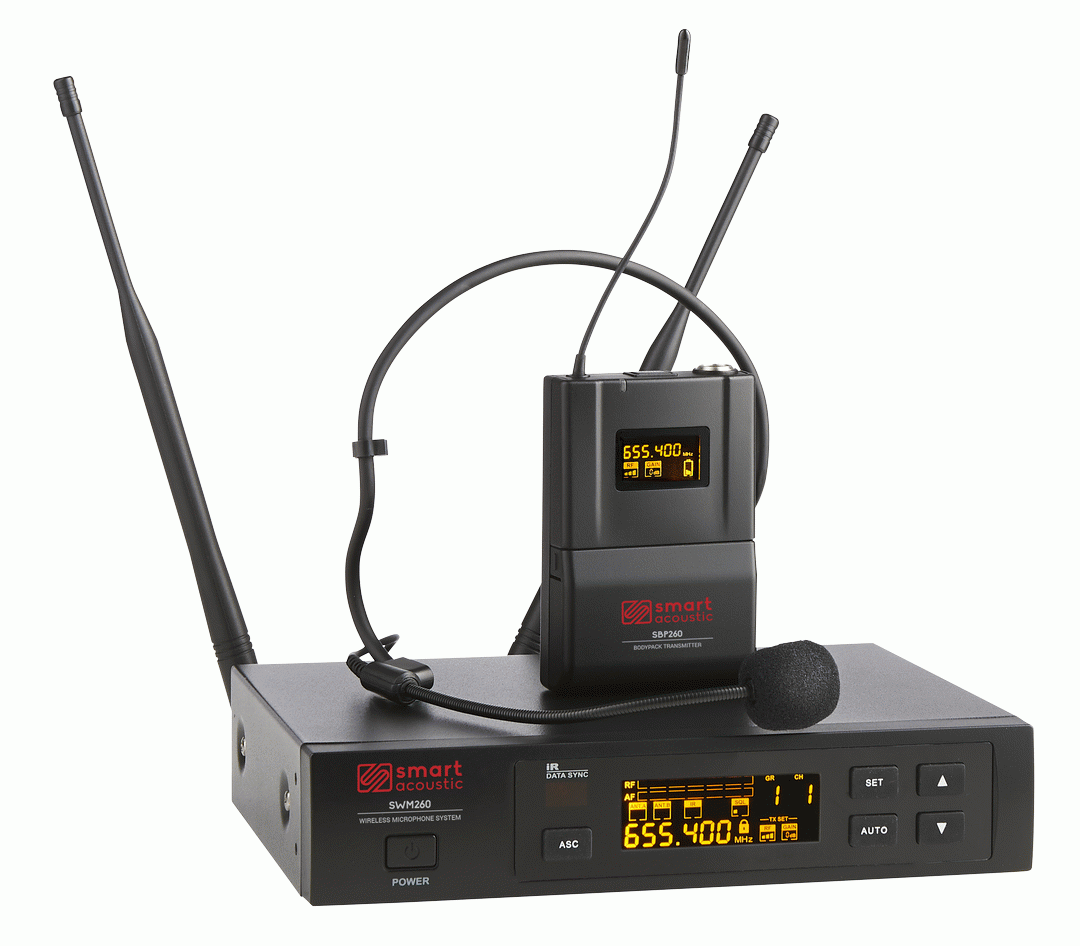

This great sounding, easy to operate Wireless Body Pack System comes with 1x Wireless Receiver (SWM260), 1x Headset (SHM260), 1x Bodypack (SBP260) and 1x Lapel Mic (SLP260). FREQUENCY BAND (655-679 MHz)
True diversity design ensures rock-solid performance
LCD shows all working status
Up to 160 selectable frequencies
Automatic frequency selection
Adjustable gain level
6-segment audio meters
6-segment RF meters
3-segment transmitter battery fuel gauges
Squelch adjustment
Infrared data synchronization
Rugged metal chassis
Receivers
RF Carrier Frequency Range: 500 ~ 937.5MHz
Working Range: 100M
Modulation: FM
Pilot Tone: 32.768KHz
Max Channel Number: 192
System Compatibility: 8 channels
Audio Frequency Range: 50Hz ~ 15KHz(±3dB)
Dynamic Range: > 105dB
System Distortion: THD< 0.5%
S/N Ratio: > 102dB(A)
RF Sensitivity: < -95dbm for 30dB S/N ratio
Image Rejection: > 60dB
Output Connectors: (XLR×1) /(1/4-inch connector×1 )
Audio Output Level: (XLR:+10dBV) / (1/4-inch connector(+8dBV)
Output Impedance: (XLR:3K?)/(1/4-inch connector:3K?)
Display: LCD×1
Power Requirement: 12V/0.5A DC
Operating Temperature Range: 0-50 ?
Dimensions: 160*212*44mm
Weight: 880g/1750g
Bodypack Transmitter
Gain Adjustment Range: 0/3/6dB
Input Impedance: 5K?
RF Power Output: 2mW/10mW/30mW
Spurious Rejection: > 50dB
Pilot Tone: 32.768KHz
Display: LCD
Power Requirement:1.5V×2(AA)
Battery Life: > 8hours/ 1300mAH
Dimensions:165*65*23mm
Weight: 130g
SKU | 358162 |
Barcode # | 9356790029853 |
Brand | Smart Acoustic |
