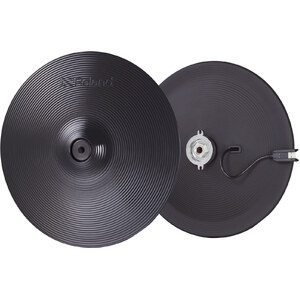

Roland VH14D Digital V-Hi Hat

Roland’s digital pads elevate electronic drumming to the next level` working in harmony with high-speed processing in supported V-Drums sound modules to provide the ultimate expressive experience. Capturing the most subtle playing nuances with astonishing detail and definition` our digital pads bring electronic drums to life like never before.

The groundbreaking VH-14D launches the electronic hi-hat into a new universe of playability` offering touch sensitivity` tonal variation` and open/closed resolution that’s never been available until now. The two-piece design and thin 14-inch pads provide a familiar look and natural feel` while the high-resolution` multi-sensor system tracks velocity` stick position` and foot work with maximum precision. Foot splashes are reproduced authentically` and you can even mute the cymbals with a hand touch—just like acoustic hi-hats.

The VH-14D is the perfect complement to the PD-140S digital snare and CY-18DR digital ride` bringing Roland’s powerful digital advantages to the three most nuanced pieces in your kit.

For the most expressive VH-14D experience` you’ll want to use it with the flagship TD-50X sound module or a TD-50 module with the TD-50X upgrade installed. These modules include new sounds that are fully optimized for the VH-14D. Standard TD-50 and TD-27 modules are also compatible with the VH-14D via a free system update. This provides support for the VH-14D’s enhanced detection capabilities` but no new sounds are included.

• High-resolution sound triggering designed for use with the TD-50X and compatible Roland sound modules with digital trigger inputs
• Top and bottom 14-inch pads with thin profiles for authentic feel and playability
• Precision tracking of velocity` stick position` and foot pedal work
• Wide-range touch sensors allow you to mute the cymbals with your hand

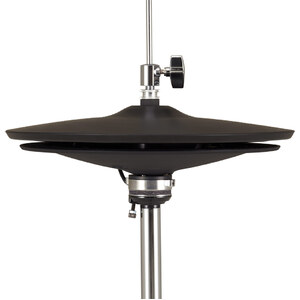

• Mounts to a regular acoustic hi-hat stand

Specifications

Size

14 inches

Available playing methods (triggers)

Open/Half-open/Close/Press (high resolution position detection)
Bow shot (high resolution position detection` wide dynamic range)
Edge shot (high resolution position detection` wide dynamic range)
Foot close/splash
Choke (choke edge` bow touch)

Sensor system

Multi element sensor system
Bow sensor x 3
Edge sensor
Motion sensor
Touch sensor
Built-in sensing processor

Connectors

DIGITAL TRIGGER OUT port
(compatible with Roland drum sound module equipped with DIGITAL TRIGGER IN port)

Power supply

Supplied from DIGITAL TRIGGER IN port (DC 5 V)

Current draw

90 mA

Accessories

Owner's manual
Clamp
Spacer (3 types)
Connection cable
Cable tie
Drum key

Options (sold separately)

Noise eater: NE series

Size and Weight

Dimensions

356 (W) x 356 (D) x 160 (H) mm
14-1/16 (W) x 14-1/16 (D) x 6-5/16 (H) inches

Weight

2.2 kg / 4 lbs 14 oz
