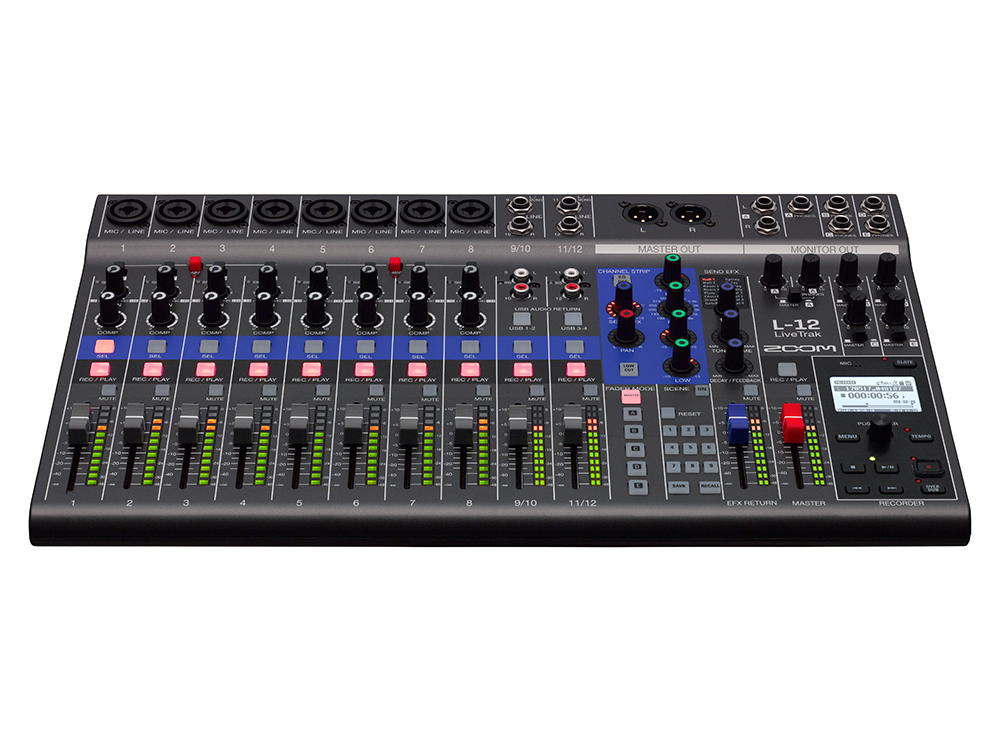

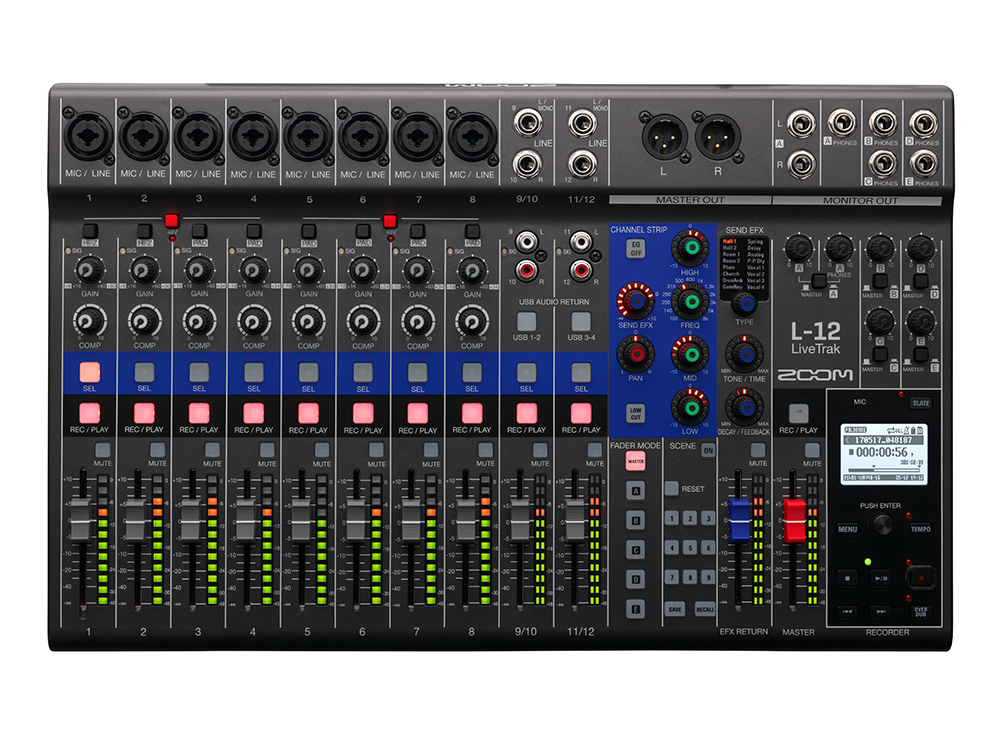

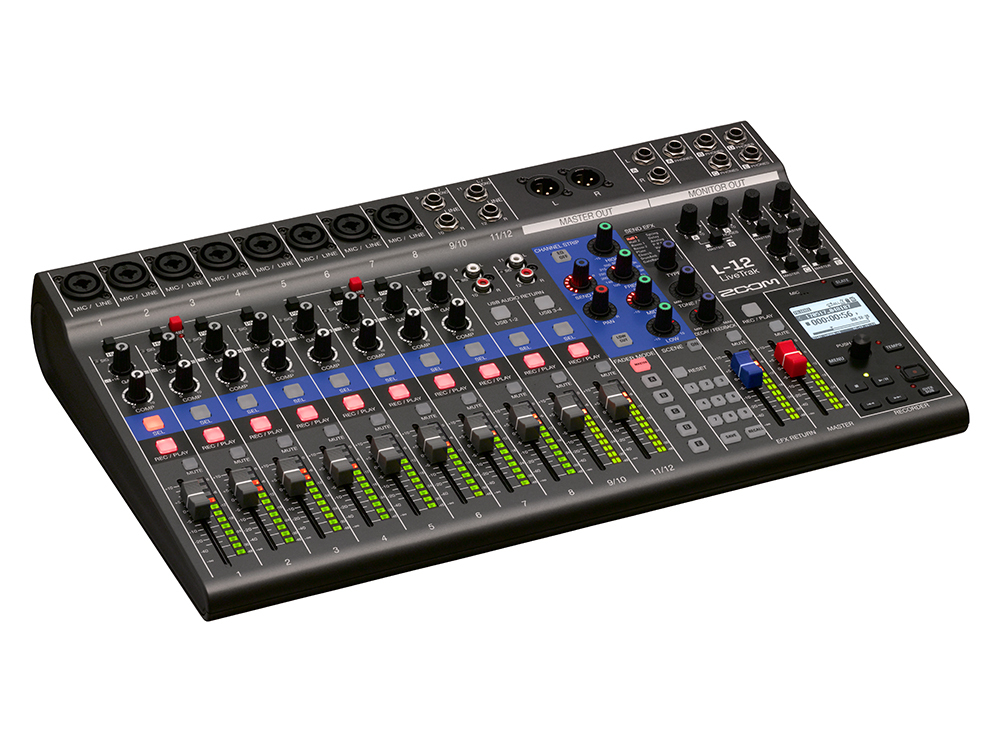

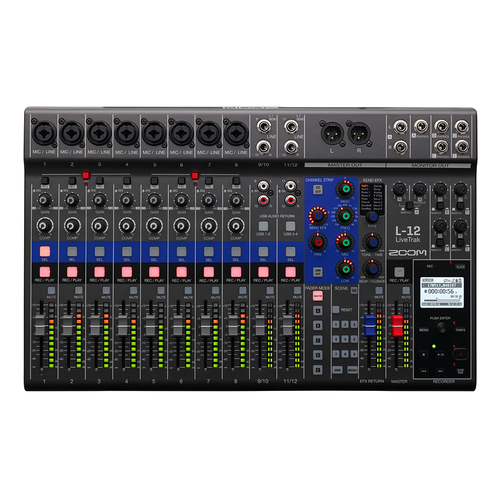

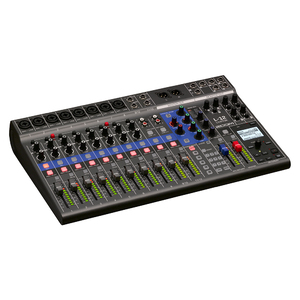

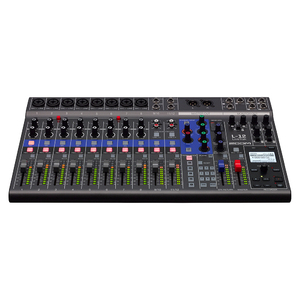

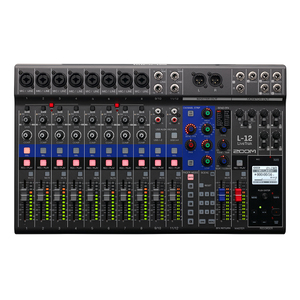

ZOOM LIVE TRACK 12

LIVETRAK L-12 DOES IT ALL Mix, Record, Monitor, Playback

SKU: LiveTrakL-12

$999.00
RRP $1,249.00
SAVE $250.00
Share:

More info.

Make 4 interest-free payments of $249.75 fortnightly and receive your order now.

THE BOARD THAT DOES IT ALL LIVETRAK L-12 Mix, Record, Monitor, Playback, and Remix With the LiveTrak L-12, you can finally mix, record, and monitor with a single piece of gear. It’s the only digital console that lets you mix your live performance and r






THE BOARD THAT DOES IT ALLLIVETRAK L-12Mix, Record, Monitor, Playback, and Remix

With the LiveTrak L-12, you can finally mix, record, and monitor with a single piece of gear. It’s the only digital console that lets you mix your live performance and record up to 12 discrete channels – all while providing five individual custom headphone mixes.

In stores September 2017.

SPECS

NUMBER OF INPUT AND OUTPUT CHANNELS
Inputs:

Mono (MIC/LINE): 8
Stereo (LINE): 2

Outputs:

MASTER OUT: 1
MONITOR OUT: 5

INPUTS
Mono (MIC/LINE):

Type: XLR/TRS combo jacks
         (XLR: 2 HOT, TRS: TIP HOT)

Input gain
PAD OFF: +16 - +60 dB
PAD ON: −10 – +34 dB
Hi-Z ON: +6 - +50 dB

Input impedance
XLR: 3 kΩ
TRS: 10kΩ/1 MΩ (when Hi-Z ON)

Maximum input level
PAD OFF: 0 dBu (at 0 dBFS)
PAD ON: +26 dBu (at dBFS)

Phantom Power
+48 V

Stereo (LINE):

Type: TS phone/RCA pin (unbalanced) jacks
         Maximum input level  +10 dBu

OUTPUTS
MASTER OUT:

Type: XLR jacks (balanced)
Maximum output level: +14.5 dBu
Output impedance: 100 Ω

MONITOR OUT A (TRS):

Type: TRS phone jacks (balanced)
Maximum output Level: +14.5 dBu
Output impedance: 100 Ω

MONITOR OUT A-E (PHONES):

Type: Standard Stereo phone jacks
Maximum output level: 42 mW + 42 mW at 60 Ω
Output impedance: 100 Ω

BUSES
MASTER:

1

MONITOR:

5

SEND EFX:

1

CHANNEL STRIP
COMP:
LOW CUT:

75 Hz, 12 dB/OCT

EQ:

HIGH: 10 kHz, ± 15 dB, shelving
MID: 100 Hz-8 kHz, ±15 dB, peaking
LOW: 100 Hz, ± 15 dB, shelving

LEVEL METERS
Level segments:

12

SEND EFFECTS
Effects:

16 types:
Hall 1 & 2 (reverb)
Room 1 & 2(reverb)
Plate (reverb)
Church (reverb)
DrumAmb (reverb)
GateRev (reverb)
Spring (reverb)
Delay (delay)
Analog (delay)
P-P Dly (delay)
Vocal 1-4 (delay + reverb)

RECORDER
Maximum simultaneous recording tracks:

14 at 44.1/48 kHz (12 channel + stereo mix)
12 at 96 kHz

Maximum simultaneous playback tracks:

12

Recording format:

WAV 44.1/48/96 kHz, 16/24-bit, mono/stereo WAV format

Recording media:

16 MB-2 GB SD cards, 4 GB-32 GB SDHC cards, 64 GB-512 GB SDXC cards

AUDIO INTERFACE
44.1/48 kHz:

Recording: 14 channels
Playback: 4 channels

Bit depth:

24-bit

Interface:

USB 2.0

CARD READER
Class:

Mass storage
USB 2.0 High Speed

USB HOST
Class:

USB 2.0 High Speed

SAMPLING RATE
Sampling rate:

44.1/48/96 kHz

FREQUENCY CHARACTERISTICS
44.1 kHz:

-1.0 dB: 20 Hz - 20 kHz

96 kHz:

-3.0 dB: 20 Hz - 40 kHz

EQUIVALENT INPUT NOISE
Actual measurements:

-128 dB EIN (IHF-A) with +60 dB/150 Ω input


Display:

LCD with backlight (128x64 resolution)

Power supply:

ZOOM AD-19 AC adapter (DC12 V/2 A)

Power consumption:

17W maximum

External dimensions:

445 mm (W) x 282 mm (D) x 70.5 mm (H)
17.5” (W) x 11.1” (D) x 2.78” (H)

Weight (main unit only):

2.53 kg / 5.58 lbs

SKU LiveTrakL-12
Brand Zoom

12 MONTHS MANUFACTURER WARRANTY
