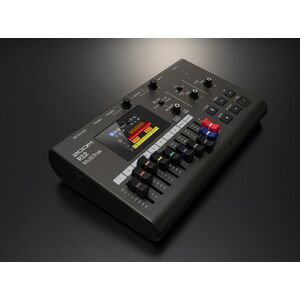

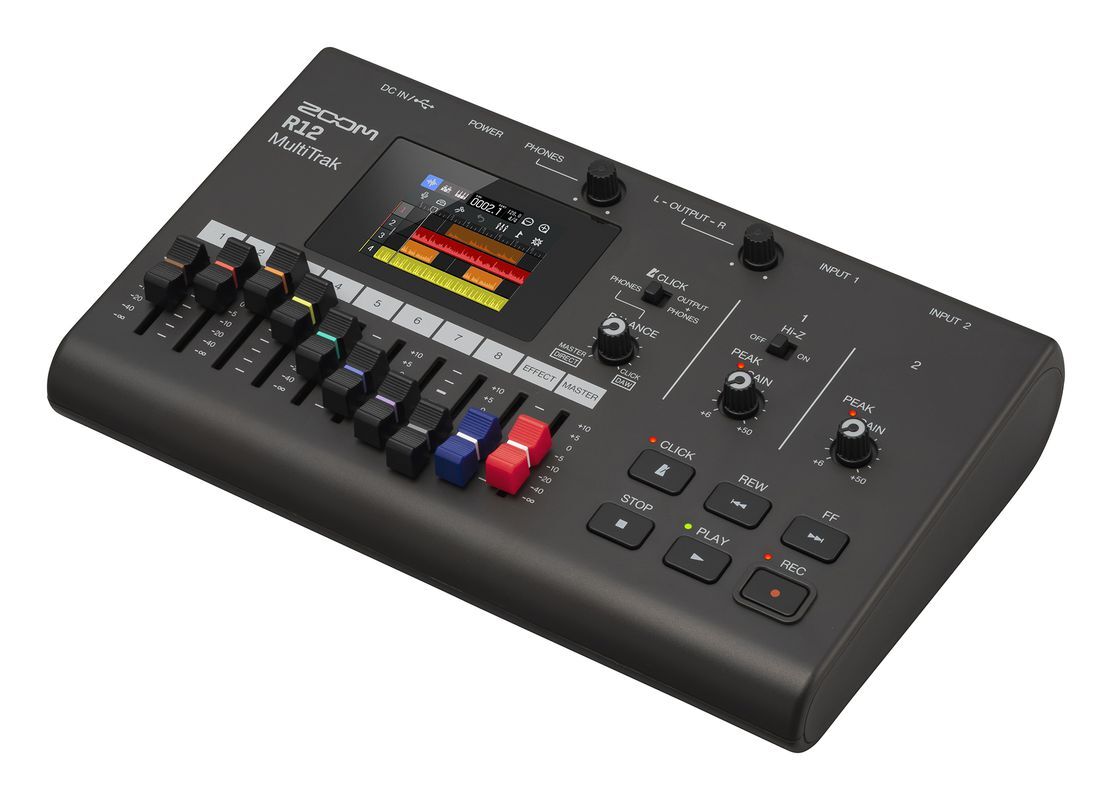

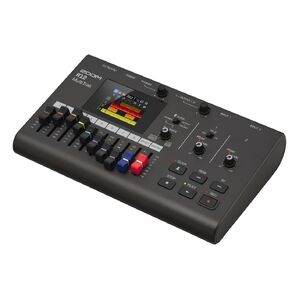

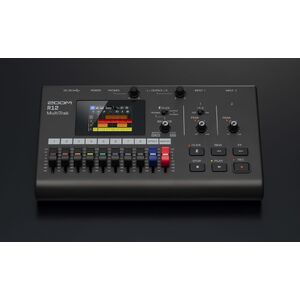

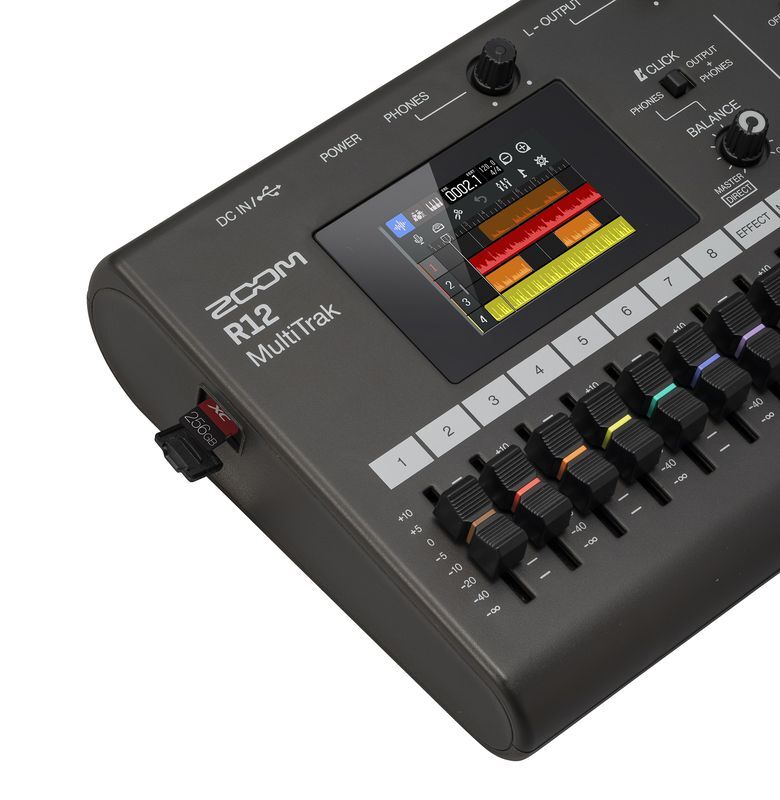

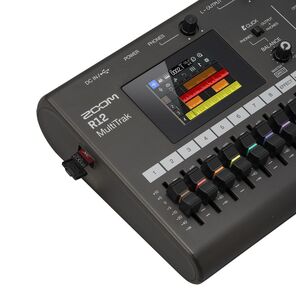

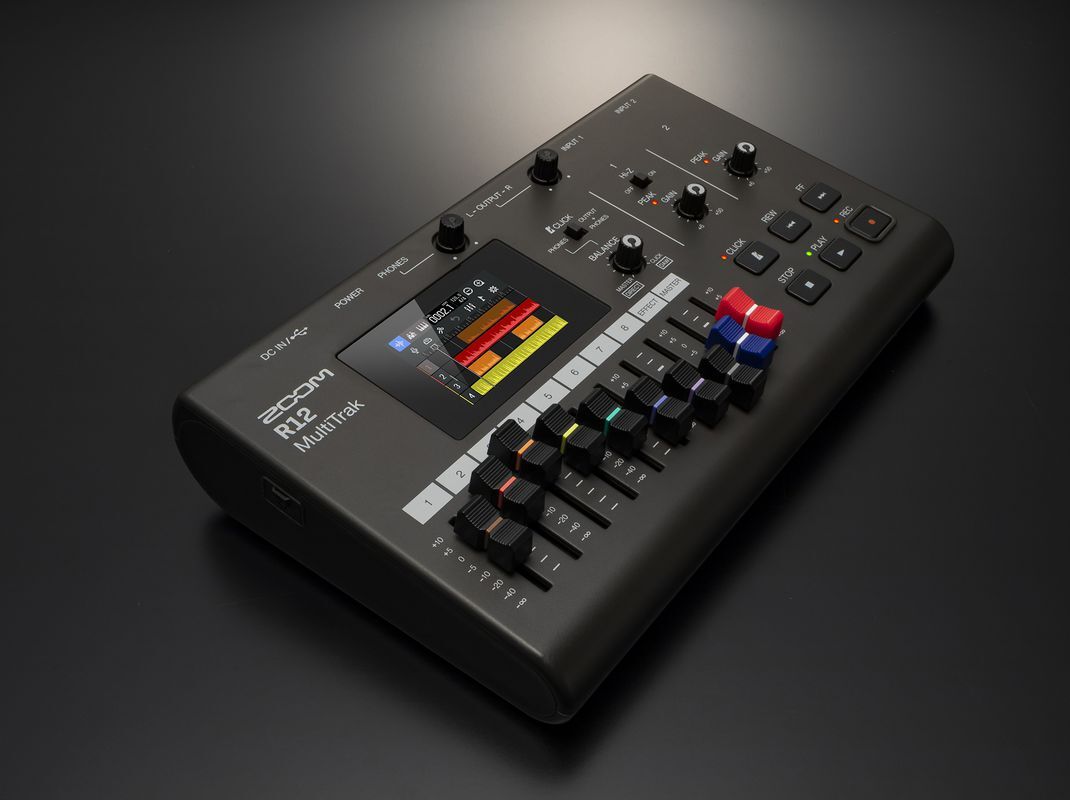

Multi-track digital recorder with up to 8 tracks of recording.
2.4” Full Color LCD touchscreen display with easy touch and swipe editing
User friendly graphic interface with on-board editing capabilities
Battery Powered up to 5 hours (4 AA’s)
2 XLR / TRS Combo inputs - with phantom power and HI-Z on input 1
Send effects channel with 4 options: Reverb, Delay, Chorus, or Guitar Lab preset (choose up to 3 effects from our guitar effects collection including distortions, modulation effects, spacial effects, and much more)
Built-in compressor for inputs 1 and 2
Pan and 3-band EQ for each track
Sequence play - for using backing tracks in a live setting
Drum loops (150 preloaded)
Records directly to SDXC cards
Built-in USB-C audio interface (2-in / 2-out or 2-in/4out) with control surface function

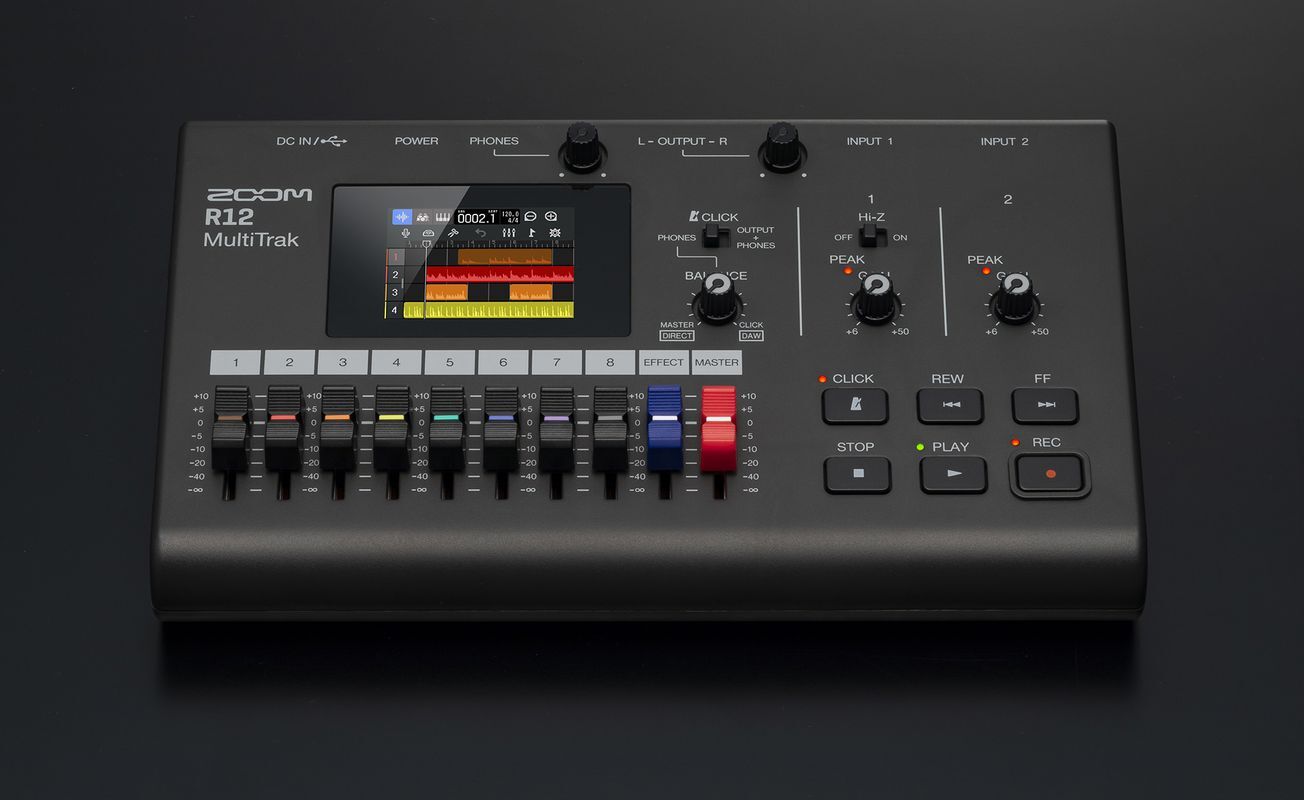

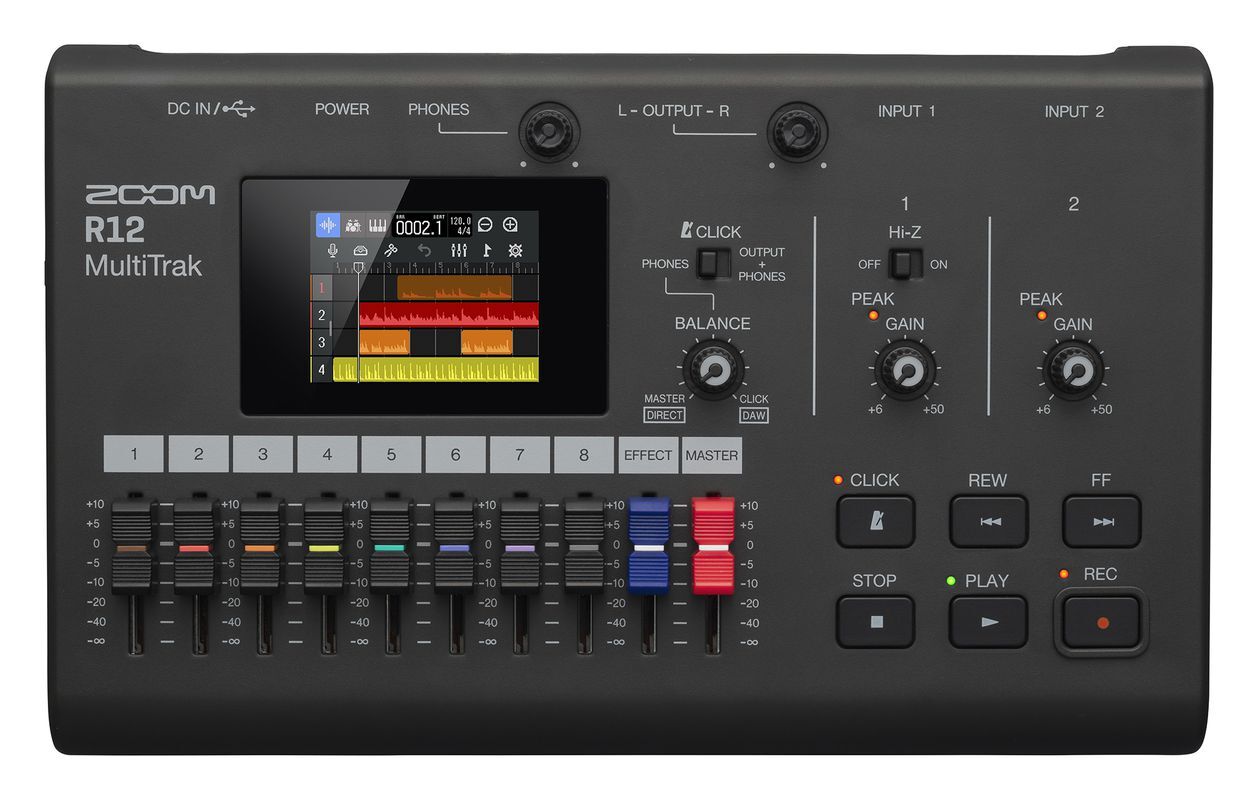

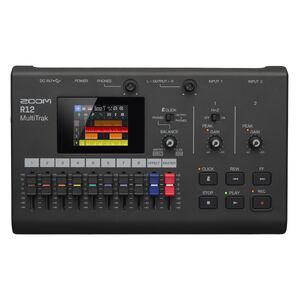

Touchscreen Display
Headphone Volume Knob
Click Routing and Balance
Left/Right Outputs Volume Knob
Input Peak Indicators and Gain Knobs
Micro SD Card Slot
Channel, Effects, and Master Faders
Transport Controls

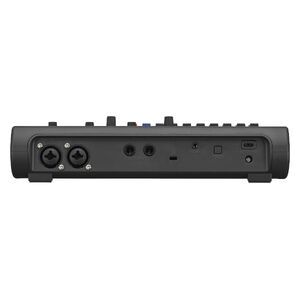

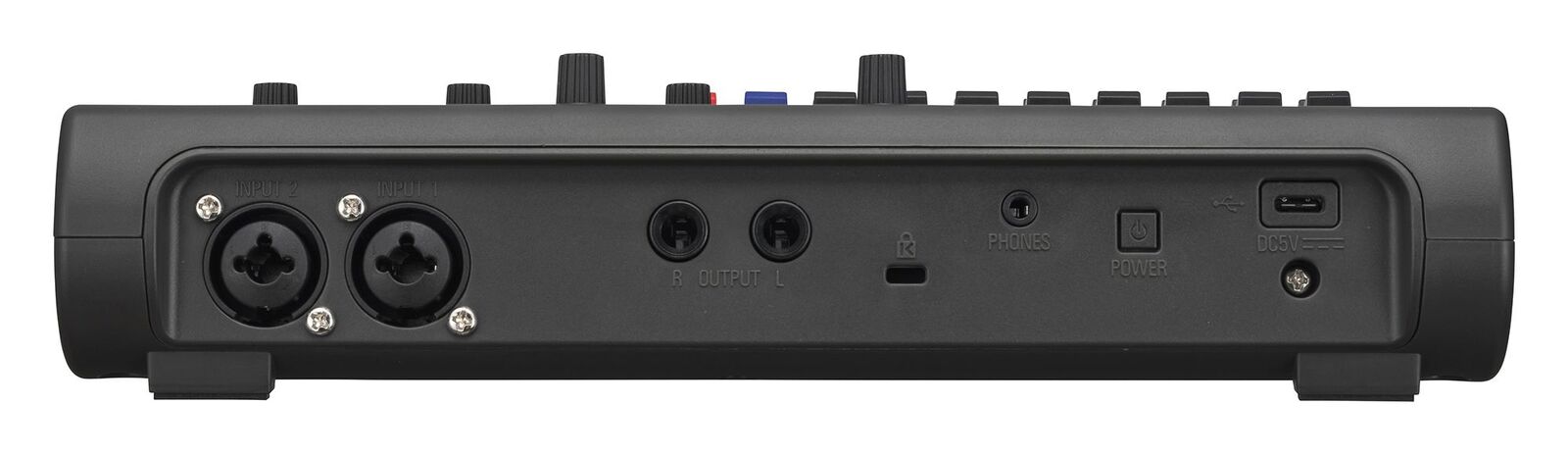

Inputs 1and 2
Left/Right Outputs
Headphone Output
Power Button
USB-C Port for Power and Data
Specs
INPUTS / OUTPUTS
INPUTS
MIC/LINE (mono)
2
OUTPUTS
MASTER OUT
1
PHONES
1
INPUTS
MIC/LINE (MONO)
Connectors
2 XLR/TRS combo jacks (Balanced, XLR: 2 HOT / TRS: TIP HOT）
Note: Use a USB cable that supports data transfer. USB bus power is supported.
AUDIO INTERFACE FUNCTION
2-in/2-out or 2-in/2-out (iPad)
USB 2.0 Full Speed
44.1 kHz, 16/24-bit
2-in/4-out
USB 2.0 High Speed
44.1 kHz, 16/24-bit
MASS STORAGE FUNCTION
Device
USB 2.0 High Speed (5 V/200 mA power supplied when host)
GUITAR LAB CONNECTION
USB 1.1 Full Speed
DAW CONNECTION (CONTROL SURFACE)
USB 1.1 Full Speed
MASS STORAGE FUNCTION
Host
USB 2.0 High Speed (5V/200 mA power supplied)
USB MIDI KEYBOARD CONNECTION
USB 1.1 Full Speed (5 V/200 mA power supplied)
POWER
Batteries: 4 AA (alkaline, lithium, or rechargeable NiMH)
AC adapter: ZOOM AD-17 (5V/1.0A)
ESTIMATED CONTINUOUS OPERATION TIME USING BATTERIES
During playback with +48V off and 32Ω headphone load
Alkaline batteries: about 5 hours
NiMH batteries (1900 mAh): about 5 hours
Lithium batteries: about 11 hours
• The above values are approximate. • Continuous battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions.
