Boss RC-5 Loop Station Compact Pedal

Your Essential Creative Companion

SKU: RC5

Stock Availability:

In Store
Arties Aspley store

In Stock
Online
Ships from suppliers warehouse

In Stock

Have a Question

Step up to the RC-5 and prime your pedalboard with maximum looping range. Capture sound with premium 32-bit quality, navigate parameters and monitor loop status with the backlit LCD, and tap into expanded operation via the control jack and TRS MIDI I/O. And with over 50 rhythms, 13 hours of stereo recording, 99 phrase memories, and more, the compact RC-5 puts a deep well of musical power at your feet.

Advanced BOSS looping features in a compact footprint
Class-leading sound quality with 32-bit AD/DA and 32-bit floating-point processing
Stereo looper engine with 13 hours of recording time
LCD with multi-color backlight for viewing loop status and editing parameters
Reverse function for infusing loops with interesting textures
Seven different drum kits and 57 preset rhythms with A/B variations
Support for expanded control via external footswitches, an expression pedal, or MIDI
Full MIDI I/O provided with space-saving mini TRS jacks (BMIDI-5-35 adaptor cable available separately)
Onboard storage for 99 phrase memories
Back up and load WAV loops via USB

SPECIFICATIONS
Sampling Frequency: 44.1 kHz
AD/DA Conversion: 32 bits
Processing: 32-bit floating point
Recording/Playback: Number of Track: 1
Data Format: WAV (44.1 kHz, 32-bit float, stereo)
Maximum Recording Time: Approx. 1.5 hours (1 track), Approx.13 hours (total of All memories)
Rhythm Type: 57 Patterns x 2 Variations
Rhythm Kit: 7 types
Effect: Reverb (only for rhythm part)
Memory: 99
Nominal Input Level: INPUT A/MONO, B: -20 dBu
Input Impedance: INPUT A/MONO, B: 1 M ohm
Nominal Output Level: OUTPUT A/MONO, B:-20 dBu
Output Impedance: OUTPUT A/MONO, B: 1 k ohm
Recommended Load Impedance: OUTPUT A/MONO, B: 10 k ohms or greater
Bypass: Buffered bypass
Controls: MEMORY/LOOP LEVEL knob, MEMORY button, SETUP button, RHYTHM ON/OFF button, RHYTHM TEMPO button, Pedal switch
Display: Graphic LCD (96 x 32 dots, RGB backlit LCD)

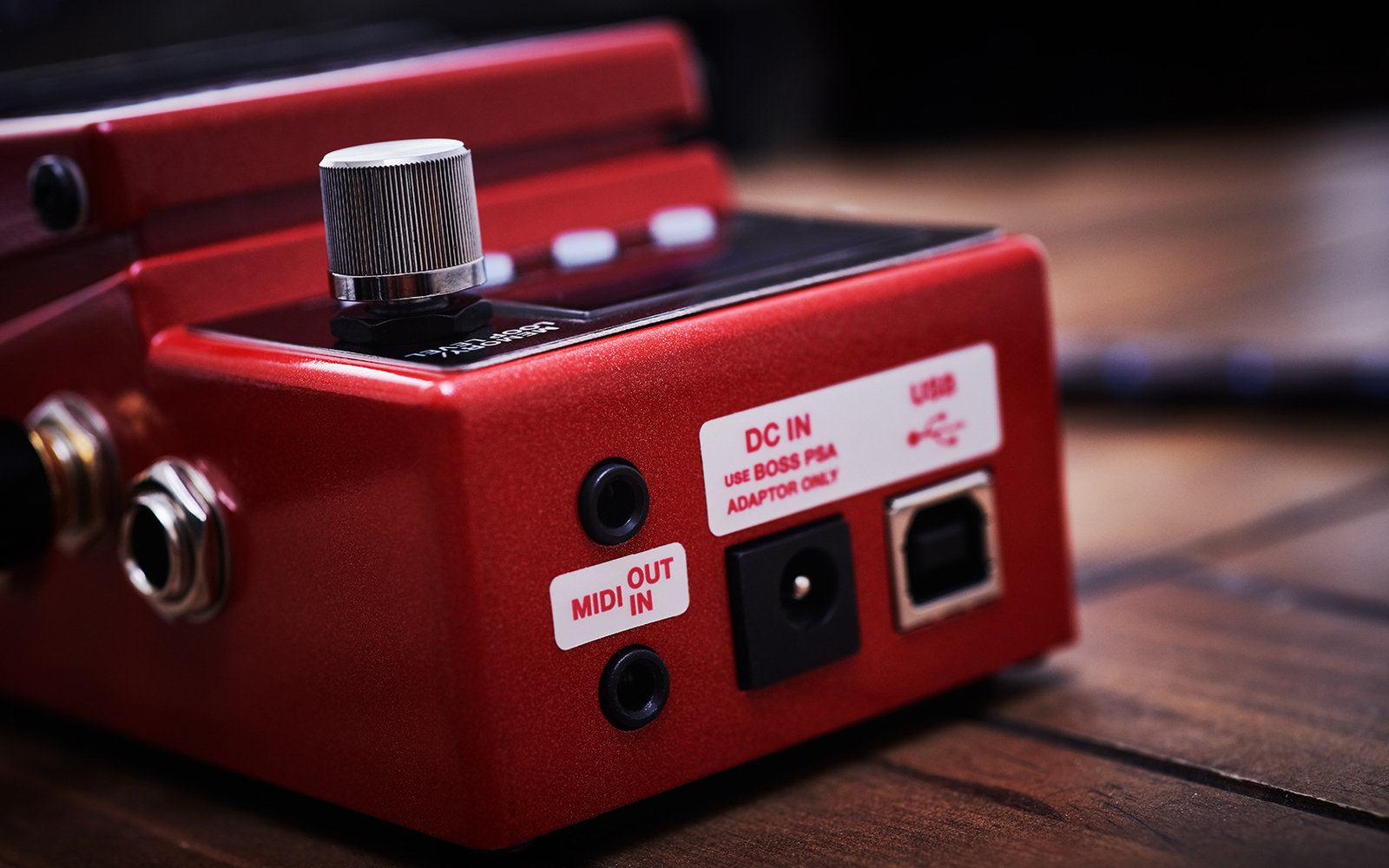

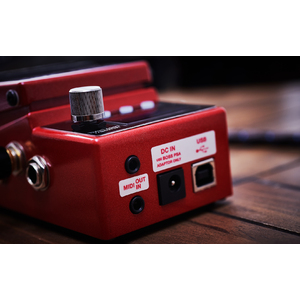

Connectors: INPUT A/MONO, B jacks: 1/4-inch phone type
OUTPUT A/MONO, B jacks: 1/4-inch phone type
STOP/MEMORY jack: 1/4-inch TRS phone type
USB port: USB B type
MIDI (IN, OUT) jacks: stereo miniature type
DC IN jack
Power Supply: Alkaline battery (9 V, 6LR61 or 6LF22); AC adaptor (PSA series: sold separately)
Current Draw: 170 mA
Expected battery life under continuous use: Alkaline: Approx. 2 hours
*These figures will vary depending on the actual conditions of use.
Accessories: Owner's manual
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Alkaline battery (9 V, 6LR61 or 6LF22)
Options (sold separately): AC adaptor: PSA-S series
Footswitch: FS-5U
Dual Footswitch: FS-6, FS-7
Expression Pedal: FV-500H, FV-500L, EV-30, Roland EV-5
TRS/MIDI connecting cable: BMIDI-5-35
SIZE AND WEIGHT
Width: 73 mm
2-7/8 inches
Depth: 129 mm
5-1/8 inches
Height: 56 mm
2-1/4 inches
Weight (including battery): 450 g
1 lb
* 0 dBu = 0.775 Vrms
*The specifications are subject to change without notice.
