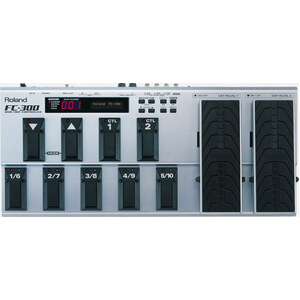

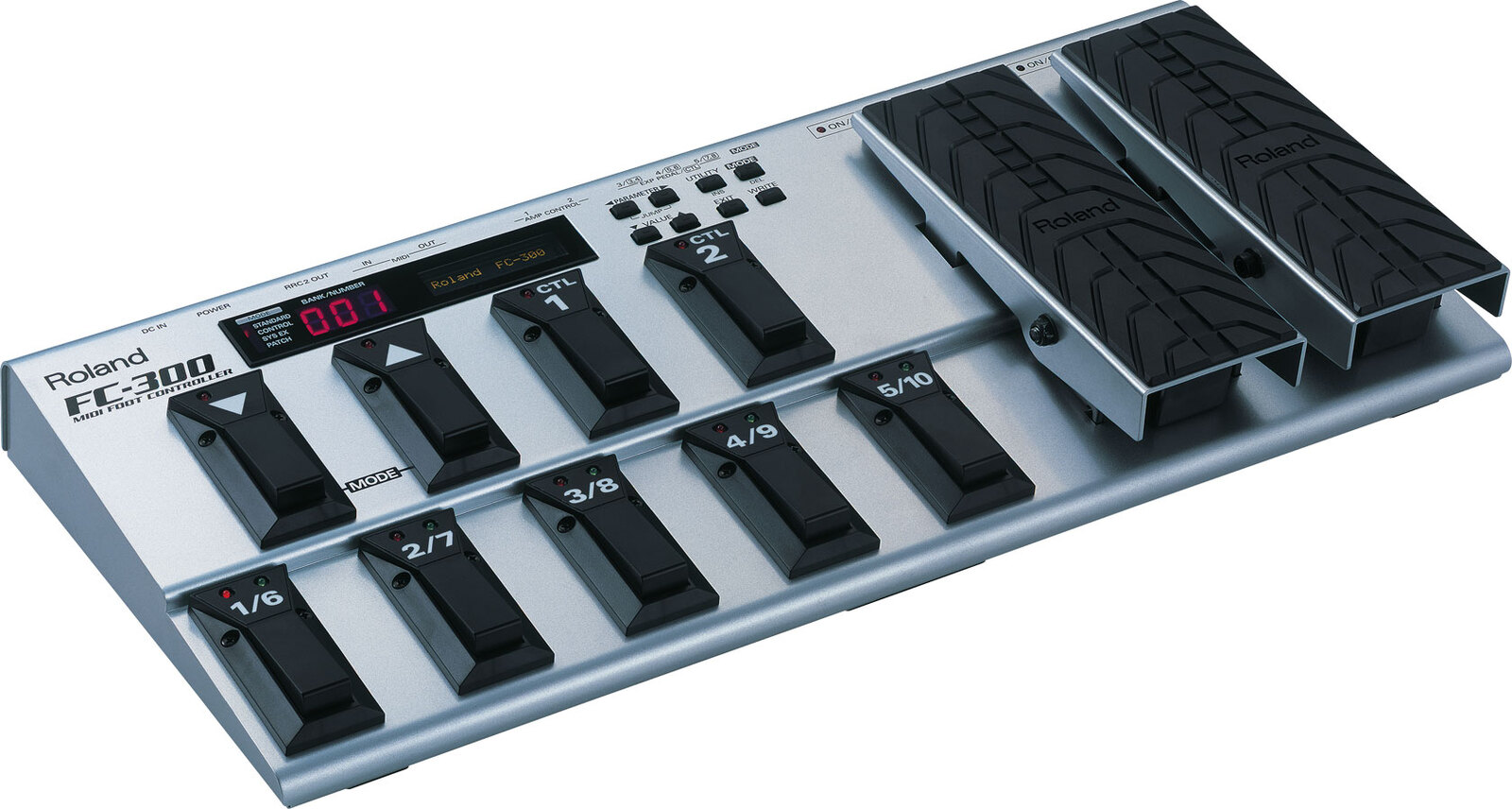

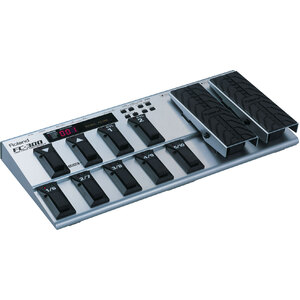

The FC-300 sets a new standard of power` versatility and innovation for MIDI foot control. With features such as twin expression and control pedals and more` this advanced control station is a perfect companion for any performance-based MIDI instrument or device.

• Advanced MIDI foot controller with two assignable expression pedals` two control pedals` nine footswitches and expandability
• New Patch Mode stores up to 100 MIDI setups
• In addition to standard MIDI connection` newly developed RRC2 protocol adapted for bidirectional data flow between FC-300 and Roland RRC2-equipped products
• 3-way power supply and rock-solid metal construction for stage use
• Two Amp Control switches for controlling amp channels or effects

Control & Expression

The FC-300 is outfitted with nine industrial-grade footswitches and two programmable expression pedals for fast` easy control and expanded performance capabilities. The backlit LCD offers a high contrast view` even in the darkest stage environments.

Power Patches

Up to 100 sets of MIDI messages/parameters can be stored simultaneously in the FC-300 as patches. Complex MIDI transmission is made simple thanks to the FC-300’s ability to package chunks of data together in a single patch` and then transmit each data-burst via footswitch.

Programmable Switching

Two multipurpose switch-jacks are built into the FC-300. These programmable outputs are an ideal feature for guitarists` as they allow amp channels to be switched from clean to lead` for example` in sync with patch changes on the FC-300.

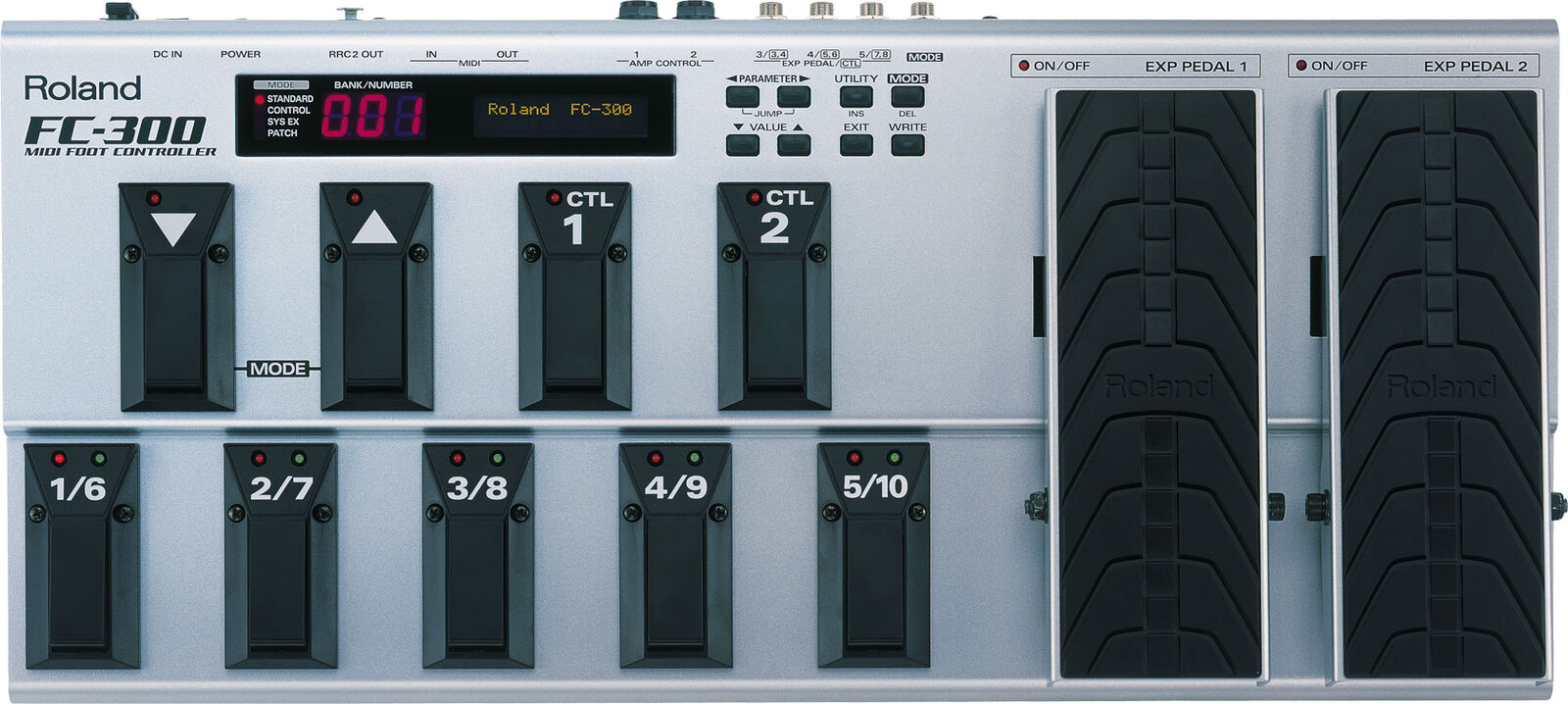

Controls

Number Pedal x 5 (1/6` 2/7` 3/8` 4/9` 5/10)
DOWN/UP Pedals
Control Pedal x 2 (1` 2)
Expression Pedal x 2 (1` 2)
PARAMTER Button x 2
VALUE Button x 2
UTILITY Button
MODE Button
EXIT Button
WRITE Button
POWER Switch

Display

7 segments` 3 characters (LED)
16 characters` 2 lines (backlit LCD)

Indicators

MODE Indicator (STANDARD/CONTROL/SYS EX/PATCH)
UTILITY Indicator
WRITE Indicator
Number Indicator x 10 (1--10)
DOWN/UP Indicators
Control Indicator x 2 (1` 2)
Expression Pedal ON/OFF Indicator x 2 (1` 2)

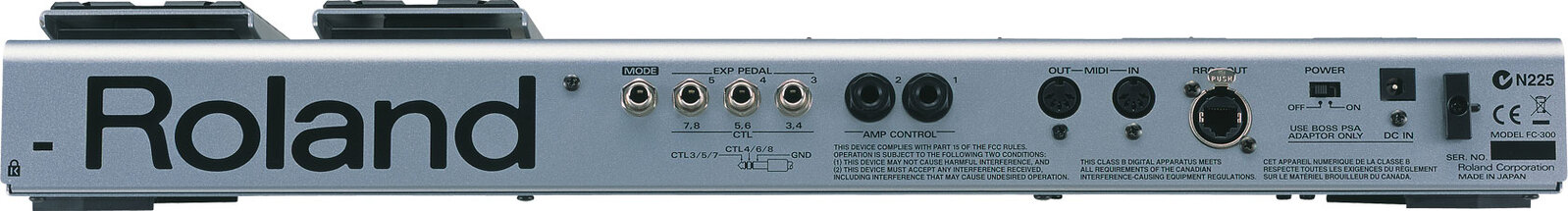

Connectors/Jacks

DC IN Jack
MIDI Connectors (IN` OUT)
RRC2 OUT Connector
AMP CONTROL 1 Jack
AMP CONTROL 2 Jack
EXP PEDAL 3 / CTL 3` 4 Jack
EXP PEDAL 4 / CTL 5` 6 Jack
EXP PEDAL 5 / CTL 7` 8 Jack
MODE Jack

Number of PATCH (PATCH Mode)

100

Power Supply

DC 9 V: AC Adaptor
Dry Batteries AA type x 6
RRC2

Current Draw

94 mA (ECONOMY MODE OFF)
61 mA (ECONOMY MODE ON)

Expected batery life under continuous use

Carbon:
6.5 hours or longer (ECONOMY MODE OFF)
12 hours or longer (ECONOMY MODE ON)
* These figures will vary depending on the actual conditions of use.

Accessories

Owner's Manual
Dry Batteries R6 (AA) type (carbon) x 6
Roland Service

Options

AC Adaptor PSA serise (BOSS)
Foot Switch: FS-5U (BOSS) ` FS-6 (BOSS)
Expression Pedal: EV-5` FV-500H/500L (BOSS)

Size and Weight ( Dimensions )

Width

550 mm
21-11/16 inches

Depth

250 mm
9-7/8 inches

Height

76 mm
3 inches

Weight

5.3 kg
11 lbs. 11 oz.

excluding AC adaptor and including batteries

*The specifications are subject to change without notice.
