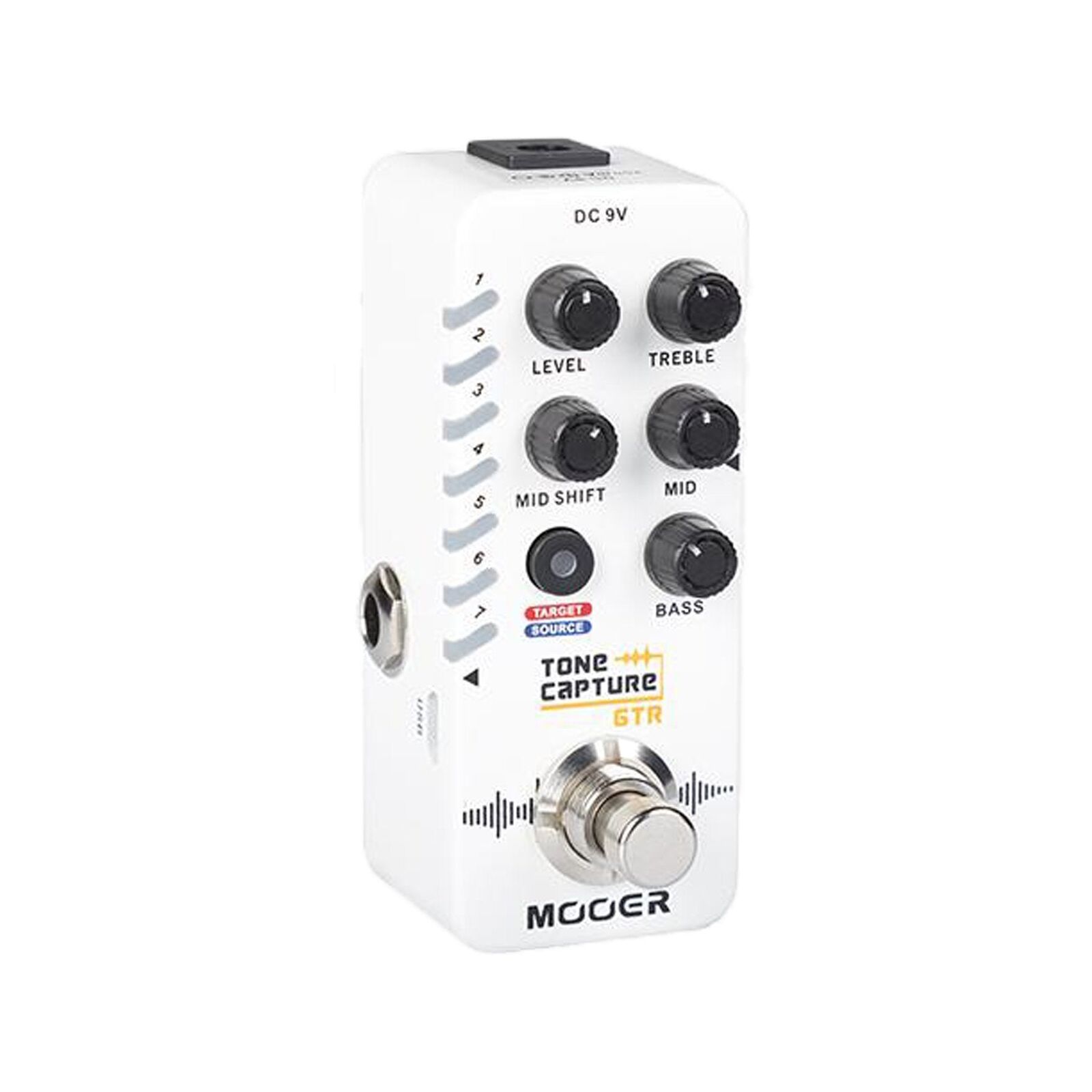

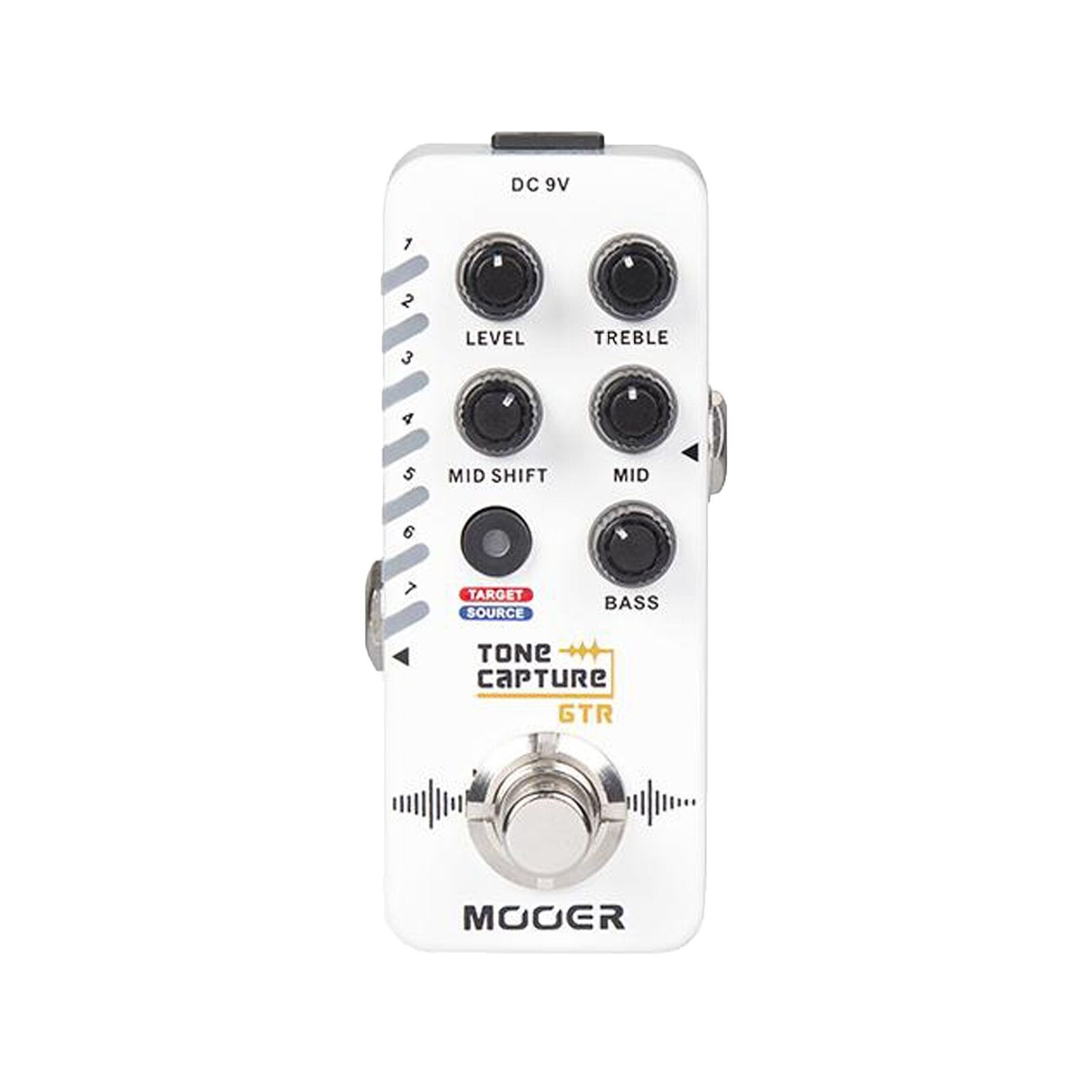

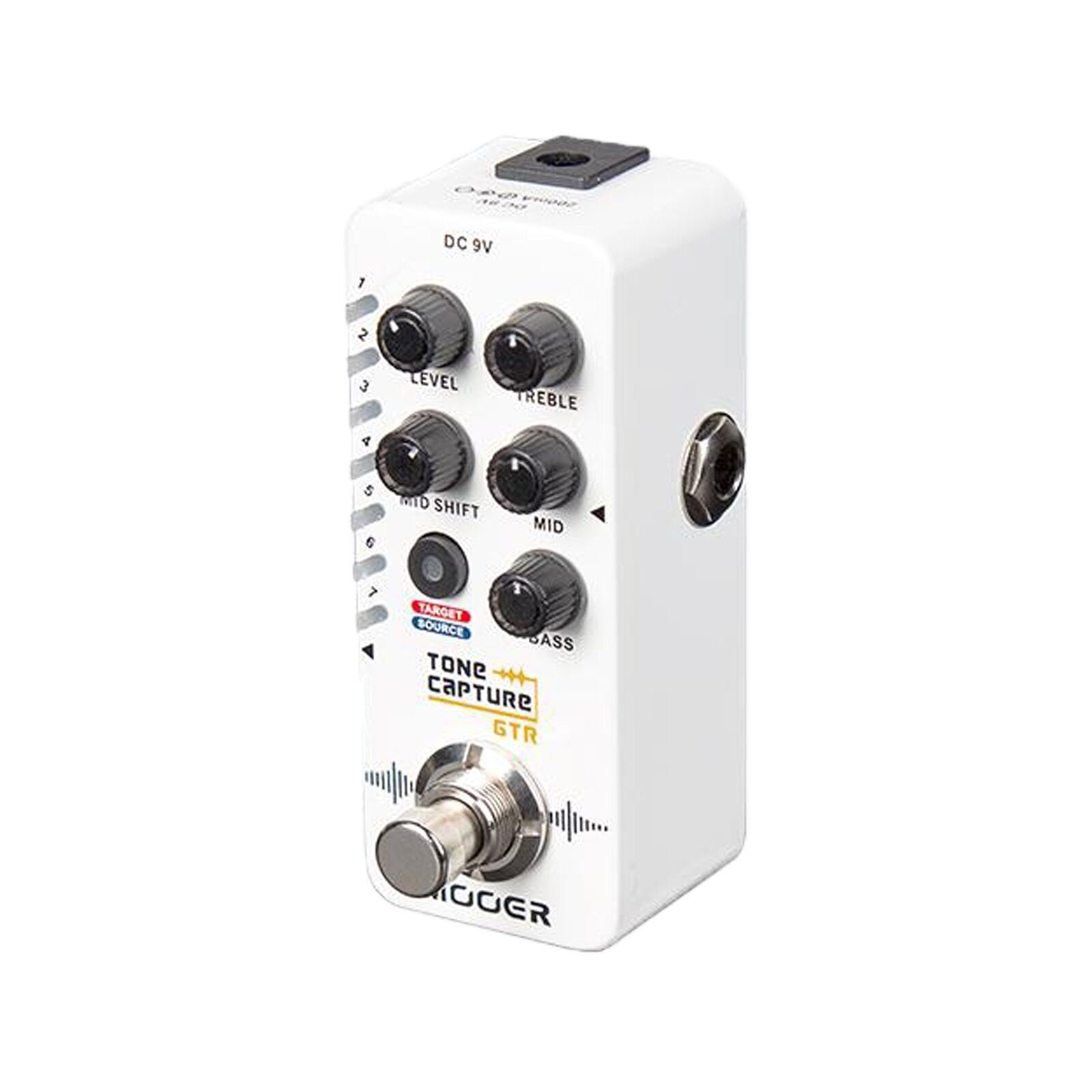

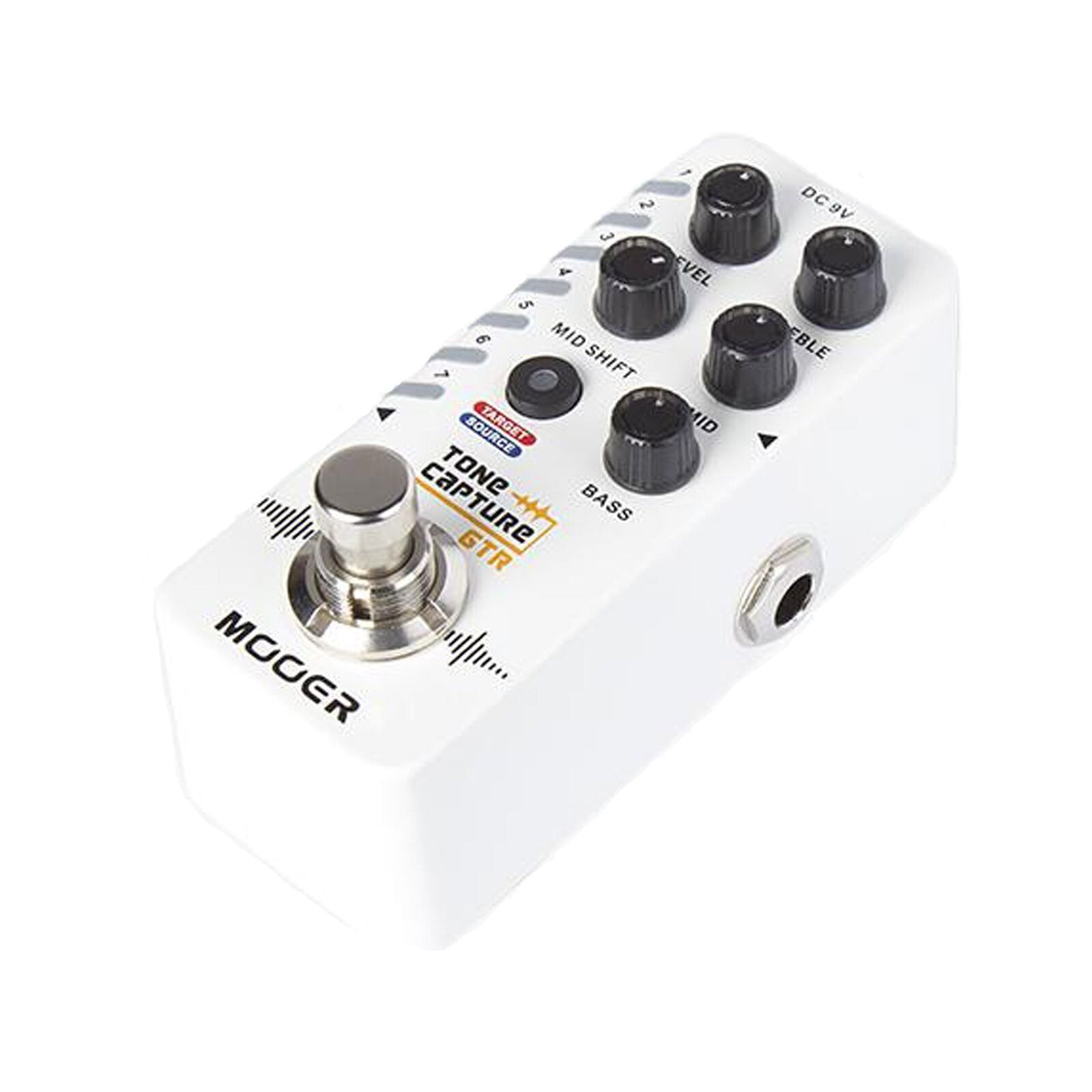

The TONE CAPTURE Guitar pedal is based on MOOER’s unique EQ matching technology, TONE CAPTURE. This pedal allows you to capture any guitar’s tone by sampling the unique tonal characteristics of the target guitar.

The days of lugging around multiple guitars are over. The Tone Capture Guitar pedal opens up a variety of guitar sounds without the need to carry several guitars. Need 8 bars of acoustic? Don’t want to take your vintage strat to the gig? You can sample the unique tonal qualities of any of your guitars at home and carry them around with you in the compact TONE CAPTURE GTR pedal!

Features:

• Can capture unique guitar tonal qualities through sampling technology.
• Can be used as an individual EQ pedal.
• 7 preset slots to store EQ and sampled guitar sounds.
• Switch between TRUE BYPASS or BUFFER BYPASS
• Firmware upgradeable via USB.

Specs:

• Input: 1/4" mono jack (impedance 2.2M Ohms)
• Output: 1/4" mono jack (impedance 100Ohms)
• Power supply: 9V DC transformer (internal negative external), MOOER Micro Power is recommended
• Current Draw: 150mA
• Dimensions: 93.5mm(D) x 42mm(W) x 52mm(H)
• Weight: 155g
